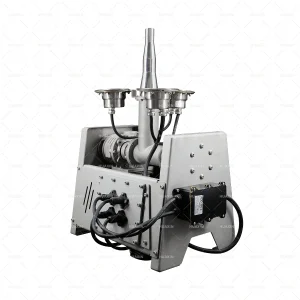

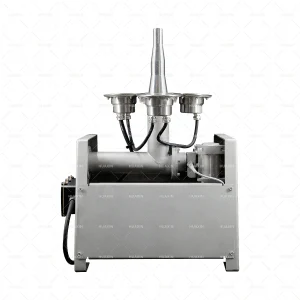

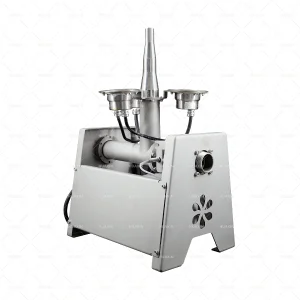

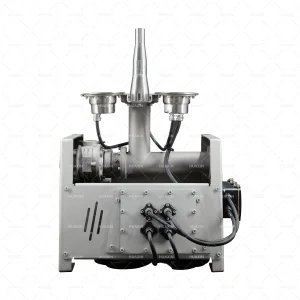

Multi-directional Drive 1D/DMX512

MULTI-DIRECTIONAL DRIVE 1D/DMX512

DMX Fountain Equipment

304 stainless steel construction.
Multi-directional drive, suitable for different nozzle types.
For fresh- and pool water.
Swing angle: Rotation range above the water surface up to 120°
The Multi-directional Drive 1D/DMX512 can control the running direction of the stepper motor through software and console to make the water column present various performances.
The 4mm plate bending process is used to enhance the overall stability of the equipment.
The equipment’s main power source and control (internal control board, drive, switching power supply) are integrated, which reduces the cost of cables, control cabinets, and control rooms for customers.
The integrated DMX512 lighting device allows the light to better follow the water column. Compared with conventional CNC equipment, the Multi-directional Drive 1D/DMX512 can better reflect the perfect combination of water and light.


Material	Stainless Steel 304
Diameter (DN）	DN50
Size (mm)	L380W480H500
Total Weight	37.5kg
Reduction Ratio	1:10
Working Voltage Of Stepper Motor	DC60V-90V
Lift	8-15m
Total Power	300W
The Number Of Phases Of The Stepper Motor	Two Phase
The Maximum Torque Of The Stepper Motor	8.5(N.M)
Sensor Voltage	DC24V
Recommended Working Cables	JHS 2*6mm²
Recommended Control Cable	PVVP 3*1.5mm²
Lighting Configuration	HX130GM-DC24V-3*6W (Internal Control)
