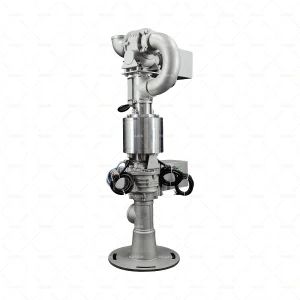

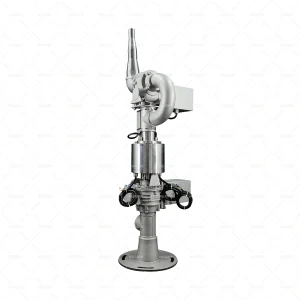

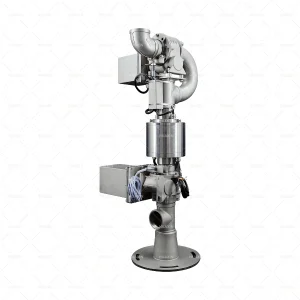

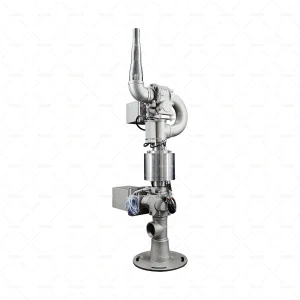

Multi-directional Drive 2D/External Conductive Slip Ring

Dynamic water shape CNC fountain equipment designed for water shows and dancing fountains.

regular cnc series

2D Swing Device

Create stunning dynamic water shapes by digitally controlling its running angle and speed.

Features

1. 304 stainless steel construction
2. Multi-directional drive, suitable for different nozzle types.
3. For fresh- and pool water.
4. Swing angle: Nozzle part – Rotation range above the water surface up to 180°. Upper dimensional part – rotation angle up to 360°.
5. Standardized production process.

Technical Parameter

The following are general parameters. If you need customization, please don’t hesitate to get in touch with our sales department.

MaterialStainless Steel 304
Nozzle Diameter (mm)DN50
Size (mm)L313*W376*H735
Total Weight37.65kg
Upper Dimension Reduction Ratio1:10
Lower Dimension Reduction Ratio1:10
Stepping Motor Working VoltageAC60V-80V
The Power Of The Stepper Motor200W, 260W
Lift10-15m
The Number Of Phases Of The Stepper MotorTwo Phase
Upper Stepping Motor Maximum Torque8.5(N.M)
Lower Stepping Motor Maximum Torque12(N.M)
Sensor VoltageDC24V
Upper (Lower) Dimensional Sensor Line Color SeparationBrown-24v Blue-Gnd Yellow-Return To Zero Signal
Upper (Lower) Dimensional Stepper Motor Line Color SeparationRed-A+ Green-A- Yellow-B+ Black-B-
Recommended Stepper Motor Mounting CablesJHS 4*2.5mm²
Recommended Sensor Mounting CablePVVP 3*1.0mm²
Number Of Built-In Slip Ring Lines8
