CNC FOUNTAIN EQUIPMENT

CNC Variable Nozzle

Dynamic water shape CNC fountain equipment designed for water shows and dancing fountains.

regular cnc series

CNC Variable Nozzle

Create stunning dynamic water shapes by digitally controlling its running angle and speed. Creates a dynamic, variable water effect for dancing fountains.

Get A Quote

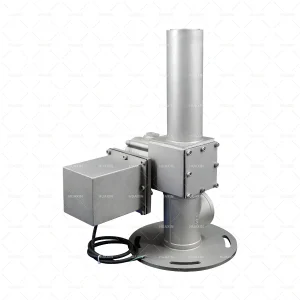

CNC Variable Nozzle 02

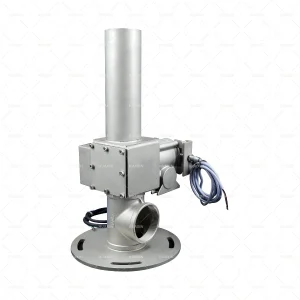

CNC Variable Nozzle 03

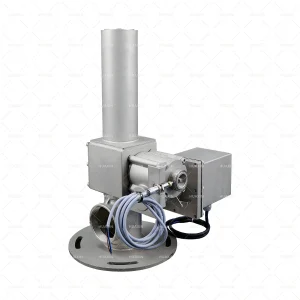

CNC Variable Nozzle 01

Features

1. 304 stainless steel construction
2. Compact structure, easy to install.
3. Removable outer panel for easy daily maintenance and troubleshooting.
4. For fresh- and pool water.
5. Standardized production process.

Get A Quote

Technical Parameter

The following are general parameters. If you need customization, please don’t hesitate to get in touch with our sales department.

MaterialStainless Steel 304
DiameterDN50
Weight (kg)17.8
Length*Width*Height (mm)L322*W288*H487
Water Spray Height（M)8
Reduction Ratio1:10
Stepping Motor Working VoltageAC55V-70V
The Power Of The Stepper Motor200W
The Number Of Phases Of The Stepper MotorTwo Phase
Stepping Motor Maximum Torque8.5(N.M)
Sensor VoltageDC24V
Sensor Line Color SeparationBrown-24v Blue-Gnd Yellow-Return To Zero Signal
Stepper Motor Line Color SeparationRed-A+ Green-A- Yellow-B+ Black-B-
Recommended Stepper Motor Mounting CablesJHS 4*2.5mm²
Recommended Sensor Mounting CablePVVP 3*1.0mm²
Running DirectionStraight up and down movement
