dmx512 FOUNTAIN EQUIPMENT

Variable Nozzle/DMX512

Creates a dynamic, variable water effect for dancing fountains.

dmx512 series

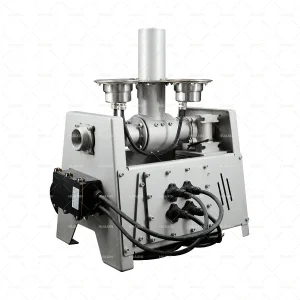

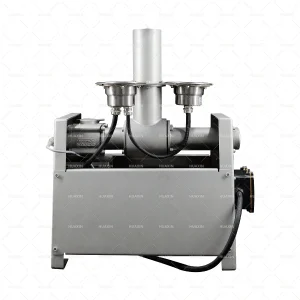

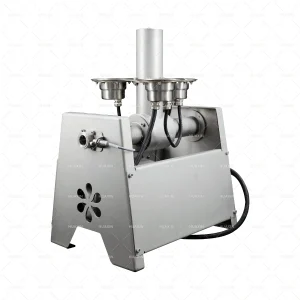

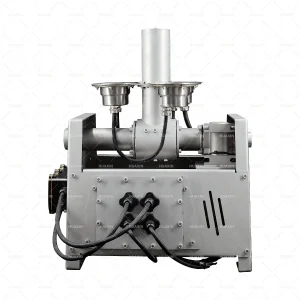

Variable Nozzle/DMX512

Designed for dancing fountains & water shows. Creates a dynamic, variable water effect for dancing fountains.

Features

1. 304 stainless steel construction.
2. The 4mm plate bending process is used to enhance the overall stability of the equipment.
3. For fresh- and pool water.
4. The equipment’s main power source and control (internal control board, drive, switching power supply) are integrated, which reduces the cost of cables, control cabinets, and control rooms for customers.
5. The integrated DMX512 lighting device allows the light to better follow the water column. Compared with conventional CNC equipment, the Variable Nozzle/DMX512 can better reflect the perfect combination of water and light.

Technical Parameter

The following are general parameters. If you need customization, please don’t hesitate to get in touch with our sales department.

Equipment sizeL600*W450*H650
Operating voltageDC60-90V
Power of the whole machine300W
Maximum speed of stepper motor6.0A-300r/min
SensorProximity switch
Number of motor phases2
Step angle1.8°
Rated phase current6.0A
Phase resistance0.52Ω±10%
Phase inductance7.0mH±20%
Reduction ratio1:10
Equipment torque85N.m
Insulation classIP68
Sensor voltageDC24V
Rotor inertia3600g.cm²
Electrical insulation resistance100MΩ(500VDC)
Temperature rise80K
Environmental temperature-5 – 40°C
Water temperature0-35°C
