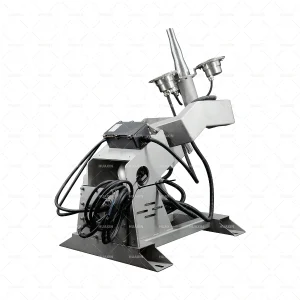

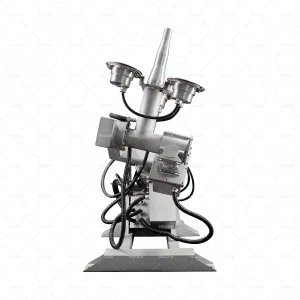

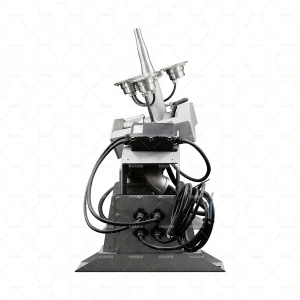

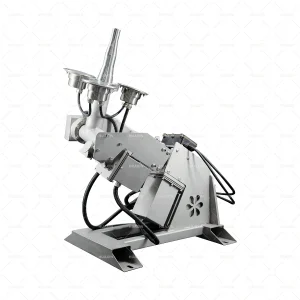

- 304 stainless steel construction.
- Multi-directional drive, suitable for different nozzle types.
- For fresh- and pool water.
- Swing angle: X-axis: rotation range up to 130°, Y-axis: rotation range up to 135°.
- The Multi-directional Drive 2D/DMX512 can control the running direction of the stepper motor through software and console to make the water column present various performances.
- The equipment’s main power source and control (internal control board, drive, switching power supply) are integrated, which reduces the cost of cables, control cabinets, and control rooms for customers.
- The integrated DMX512 lighting device allows the light to better follow the water column. Compared with conventional CNC equipment, the Multi-directional Drive 2D/DMX512 can better reflect the perfect combination of water and light.
| Material | Stainless Steel 304 |
| Nozzle Diameter (mm) | DN50 |
| Length*Width*Height (mm) | L600*W450*H650 |
| Net Weight (Kg) | 56.3 |
| Upper Dimension Reduction Ratio | 1:10 |
| Lower Dimension Reduction Ratio | 1:10 |
| Stepping Motor Working Voltage | DC60V-90V |
| Total Power | 600W |
| Lift | 10-15m |
| Number Of Phases Of Stepper Motor | Two Phases |
| Upper Stepping Motor Maximum Torque | 8.5(N.M) |
| Lower Stepping Motor Maximum Torque | 12(N.M) |
| Sensor Voltage | DC24V |
| Recommended Working Cables | JHS 2*6mm² |
| Recommended Control Cables | PVVP 3*1.5mm² |
| Running Direction (up dimension) | +100°, -35° |
| Running Direction (down dimension) | ±65° |
| Lighting Configuration | HX130GM-DC24V-3*6W (RGB) |
