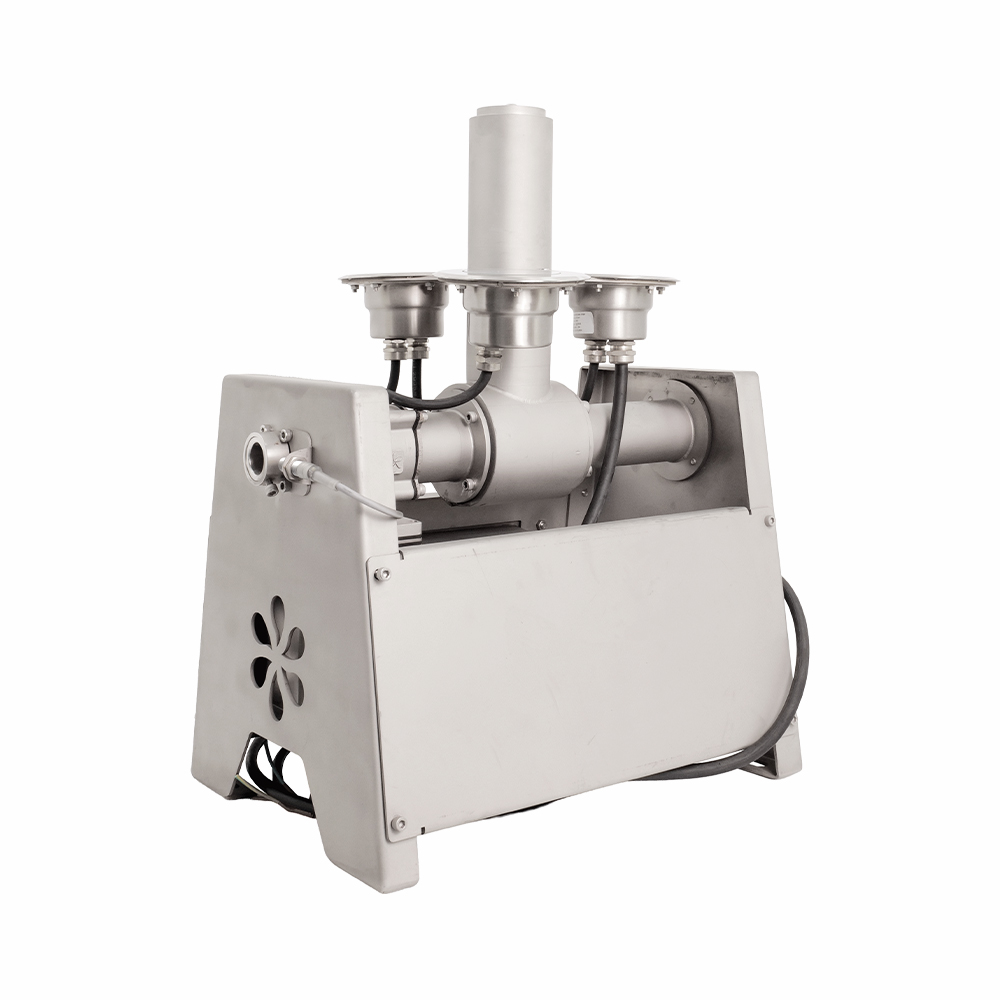

Alternative angle of the Huaxin integrated variable fountain nozzle

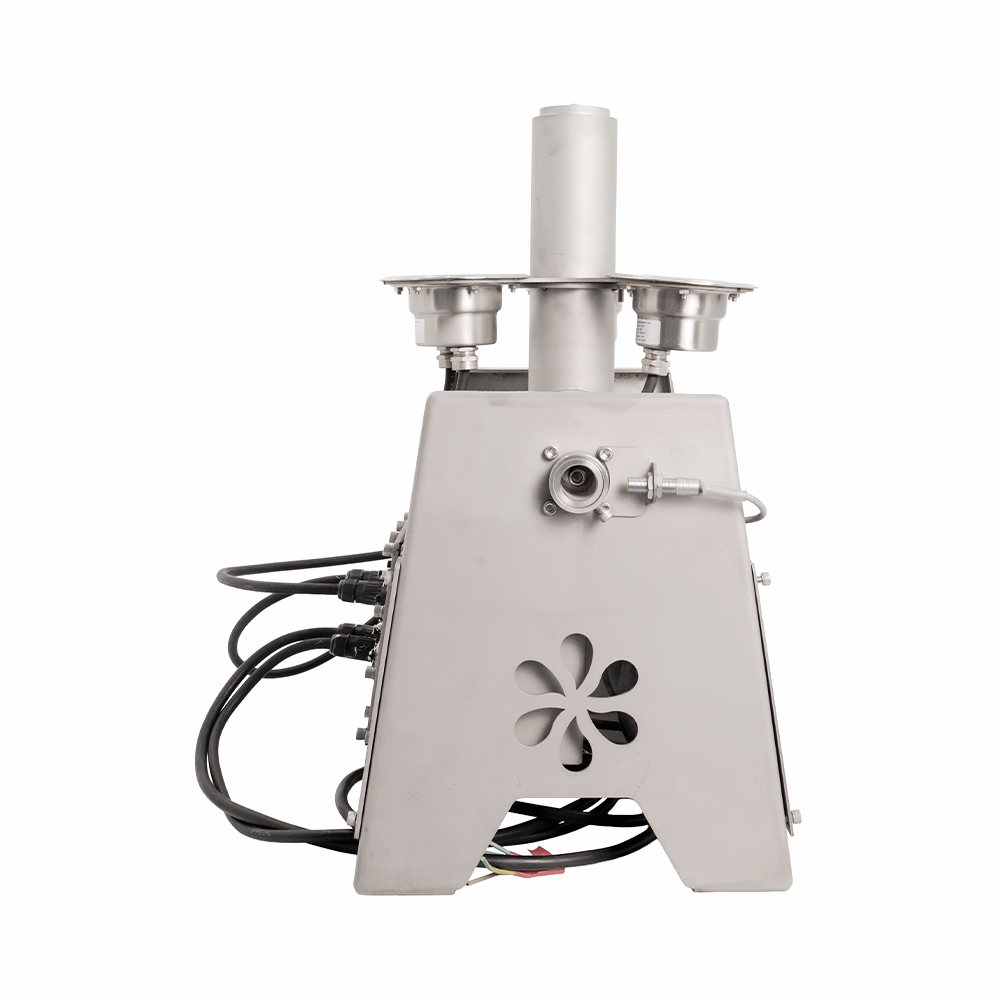

Huaxin integrated variable fountain nozzle and its stainless steel support frame
Top view of a Huaxin integrated variable fountain nozzle showing three RGB lights around the outlet
Huaxin integrated variable-pattern fountain nozzle with DMX512 control and RGB lighting
Alternative angle of the Huaxin integrated variable fountain nozzle
Huaxin integrated variable fountain nozzle and its stainless steel support frame
Top view of a Huaxin integrated variable fountain nozzle showing three RGB lights around the outlet

СИСТЕМЫ С ИЗМЕНЯЕМОЙ ФОРМОЙ СТРУЙ

Насадка С Изменяемой Формой Струй — Интегрированная

Programmable water shapes with integrated control and RGB lighting.

The Huaxin integrated variable fountain nozzle combines motor-driven pattern adjustment, DMX512-compatible control, and RGB lighting in one assembly. It creates changing water profiles while allowing the water effect and lighting to be coordinated within a musical fountain or water-show sequence.

Variable water patterns · DMX512-compatible control · 3 × 9 W RGB lighting · SUS304

Запросить предложение

Why Choose the Integrated Variable Nozzle?

Water, Lighting and Control in One Assembly

The nozzle mechanism, RGB lights, and control connections are brought together in the equipment assembly. This gives the design team a defined unit to coordinate with the fountain’s power supply, pipework, and show controls.

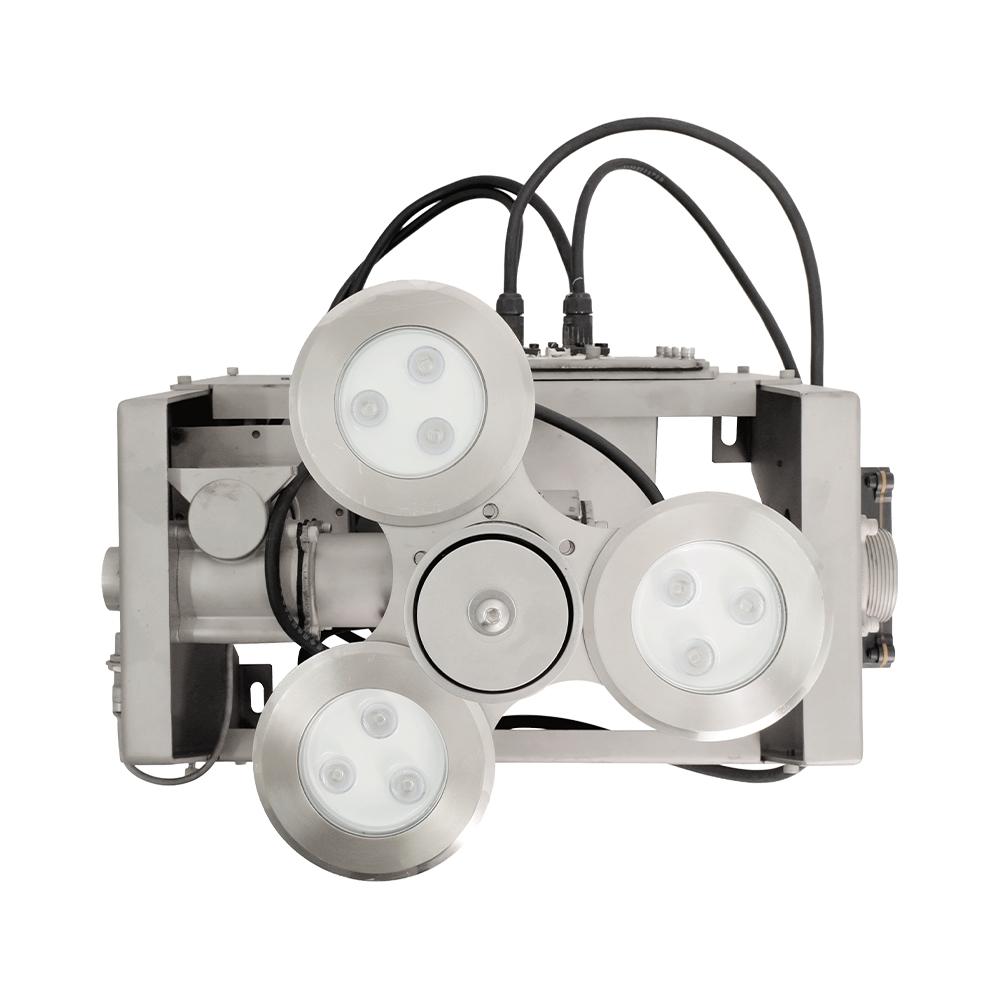

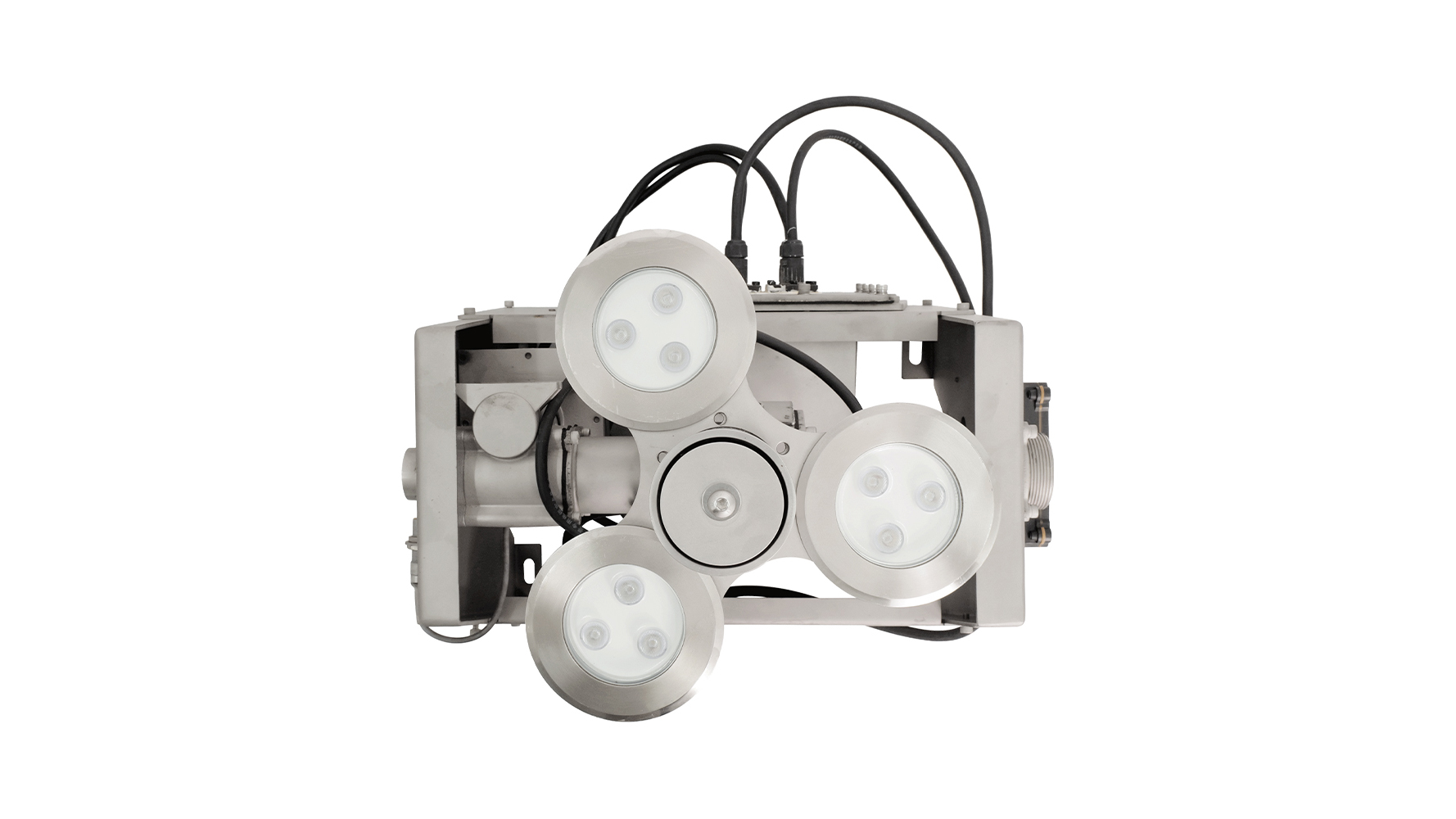

Top view of a Huaxin integrated variable fountain nozzle showing three RGB lights around the outlet
Top view of a Huaxin integrated variable fountain nozzle showing three RGB lights around the outlet

Colour Changes Alongside Pattern Changes

Three integrated 9 W RGB lights illuminate the variable water effect. Programme colour and pattern changes within the fountain sequence to build contrast between different show scenes.

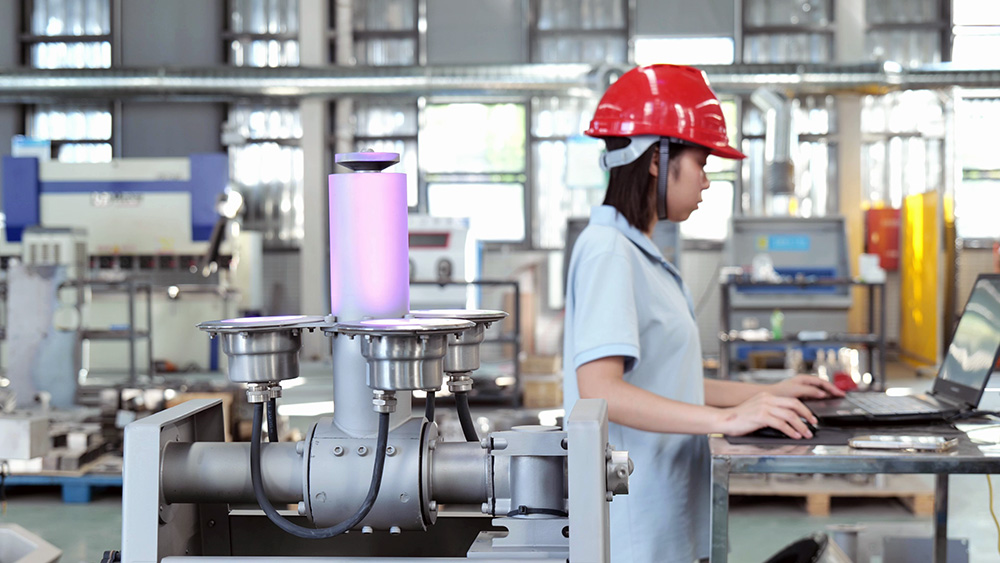

Technician using a laptop beside a Huaxin integrated variable fountain nozzle with illuminated RGB lights
Technician using a laptop beside a Huaxin integrated variable fountain nozzle with illuminated RGB lights

DMX512-Compatible Show Integration

The integrated control configuration supports DMX512-compatible operation. Coordinate the channel assignment, power supply, and programming with the project’s fountain controller.

Watch Water and Light Work Together

Use the product video to review the changing water profile and lighting on this model. The effect photographs show narrower and more expanded spray forms.

Close-up of the expanded water pattern from a Huaxin integrated variable fountain nozzle
Close-up of a partially narrowed water pattern from a Huaxin integrated variable fountain nozzle
Close-up of the converged water pattern from a Huaxin integrated variable fountain nozzle
Close-up of the expanded water pattern from a Huaxin integrated variable fountain nozzle
Close-up of a partially narrowed water pattern from a Huaxin integrated variable fountain nozzle
Close-up of the converged water pattern from a Huaxin integrated variable fountain nozzle

Технические характеристики

ХарактеристикаValue
МатериалНержавеющая сталь SUS304
Габаритные размеры (Д × Ш × В)441 × 318 × 594 mm
Масса нетто37 kg
Соединение выходного отверстия для водыDN50
Соединение входного отверстия для водыDN50
Ориентировочная высота струи8–15 m
Схема приводаIntegrated variable-pattern nozzle
Operating modeVertical lift
Выходной крутящий момент85 N·m
Передаточное отношение редуктора1:10
Номинальная мощность двигателя200 W
Рабочее напряжение двигателяDC 60–90 V
Конфигурация подсветкиIntegrated RGB LED lighting, 3 × 9 W, DC 24 V
Совместимость элементов управленияDMX512
Силовой кабельJHS, 2 × 6 mm²
Контрольный кабельJHSP, 3 × 1.5 mm²

Jet height is indicative and depends on water-pattern settings, pump flow and head, and operating conditions. The motor and lighting use different operating voltages; coordinate the complete power-supply arrangement for the selected unit.

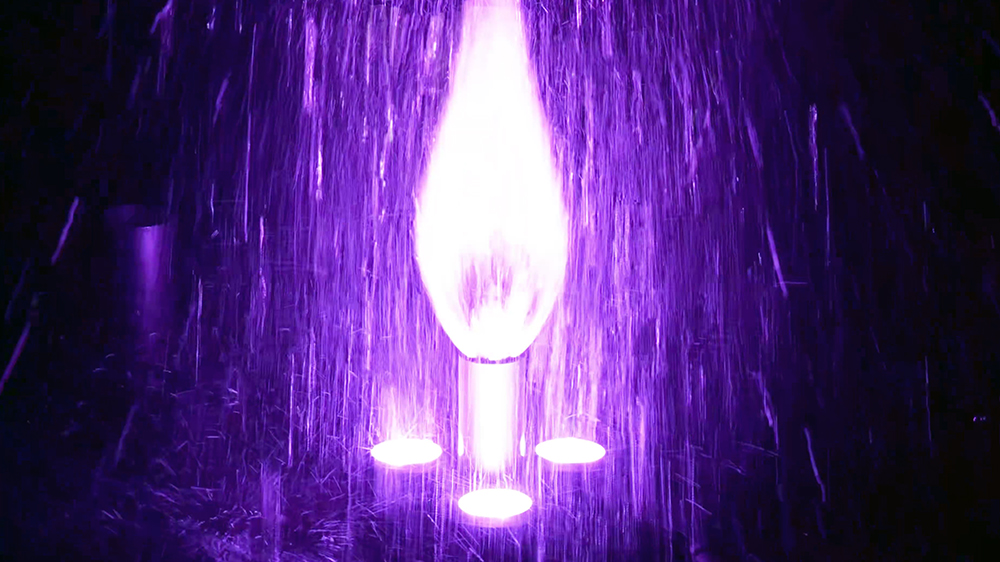

Close-up of water flowing from a Huaxin integrated variable fountain nozzle operating in a pool

Монтаж, водоснабжение и контроль

Install the unit in a submerged fountain arrangement with clean water and a steady supply. Coordinate the operating water level with the outlet position and the intended water pattern, and allow space for the fully expanded spray and its receiving area.

Check the DN50 connections, mounting position, and access to the drive and lighting. Confirm the power supply, DMX512 cabling, and channel assignment with the project control system.

Обсуждение требований к установке

Questions About the Integrated Variable Nozzle

Both versions create changing water profiles. The integrated model combines the nozzle assembly with DMX512-compatible control and 3 × 9 W RGB lighting.

This model is specified for variable-pattern operation. Choose the dedicated swivel-drive version when the water effect also needs ±60° directional movement.
