FOUNTAIN EQUIPMENT

Integrated Dry-Deck Fountain Module

Integrated Pump and Lighting for Musical Dry-Deck Fountains

Huaxin’s integrated dry deck fountain module combines a 24V DC pump, DMX512 lighting, and control connections in one compact SUS304 stainless steel unit. Its 20 outlets work together to create a combined foam-jet effect for musical dry-deck fountains and choreographed water shows.

Home » Fountain Equipment » Integrated Dry-Deck Fountain Module

FOUNTAIN EQUIPMENT

Integrated Dry-Deck Fountain Module

Integrated pump, jet outlets, and DMX512 lighting in one dry-deck fountain unit.

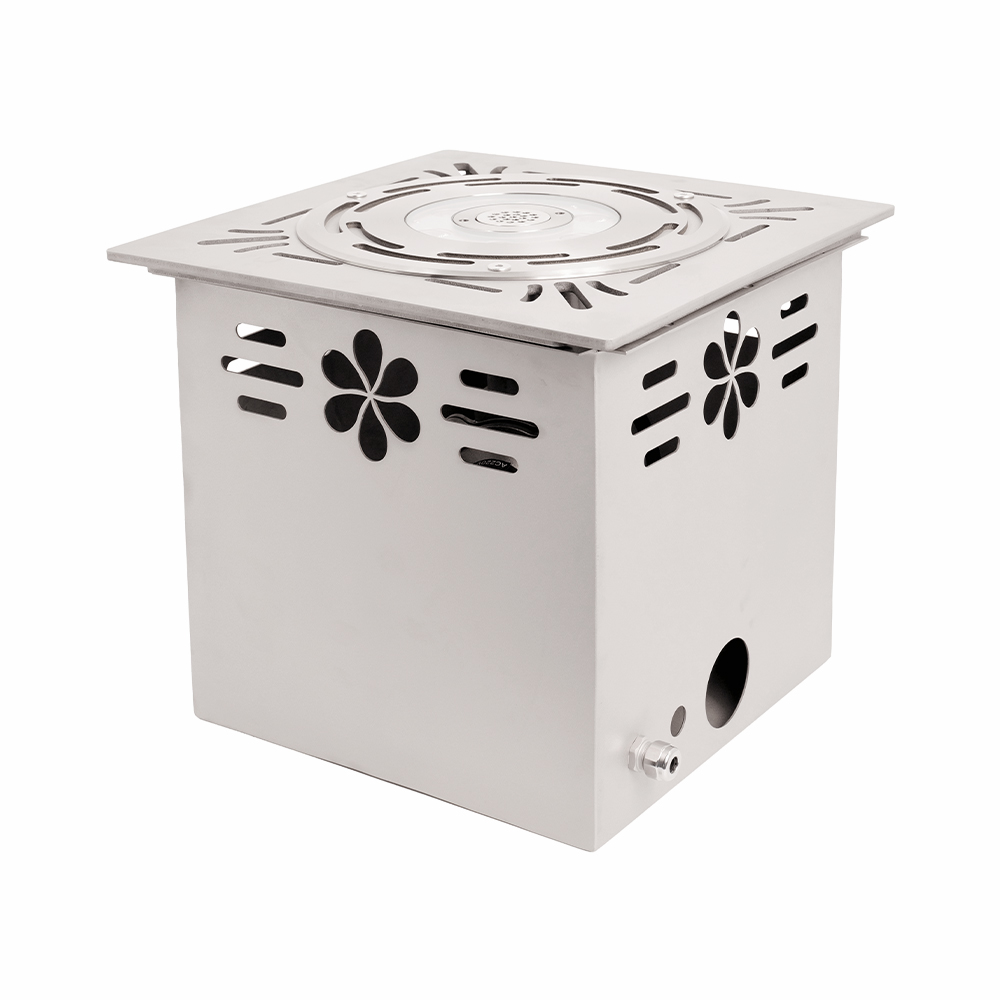

The Huaxin Integrated Dry-Deck Fountain Module combines a 24V DC pump, DMX512 lighting, and control connections in a compact SUS304 stainless steel housing. Its 20 outlets work together to create a combined foam-jet effect for musical dry-deck fountains and choreographed water shows.

24V DC pump · DMX512 lighting · 0.3–3.0 m indicative jet height · SUS304

Request a Quote

Integrated Pump & DMX512 Lighting

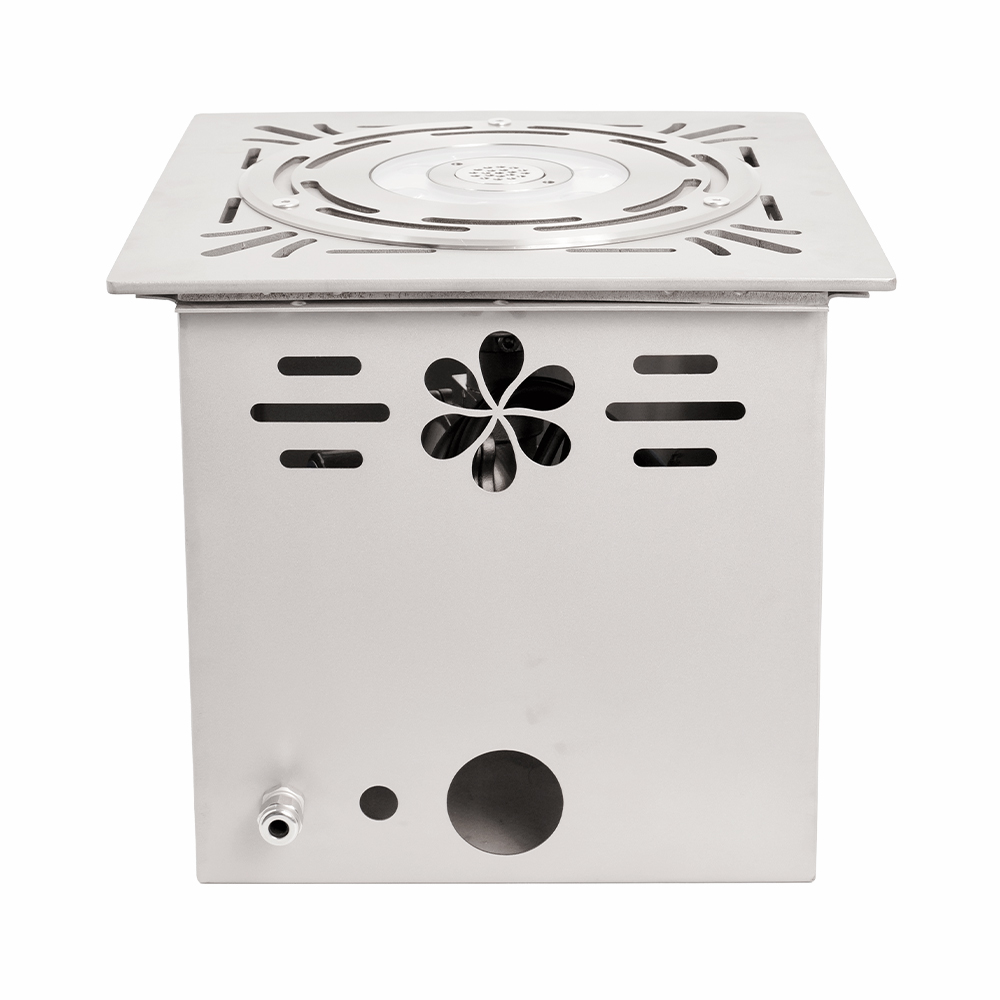

Huaxin integrated dry deck fountain module showing its stainless steel housing from another angle

Built-In Pump

A 500 W, 24V DC pump is integrated into the module, combining the pump and jet assembly in one unit.

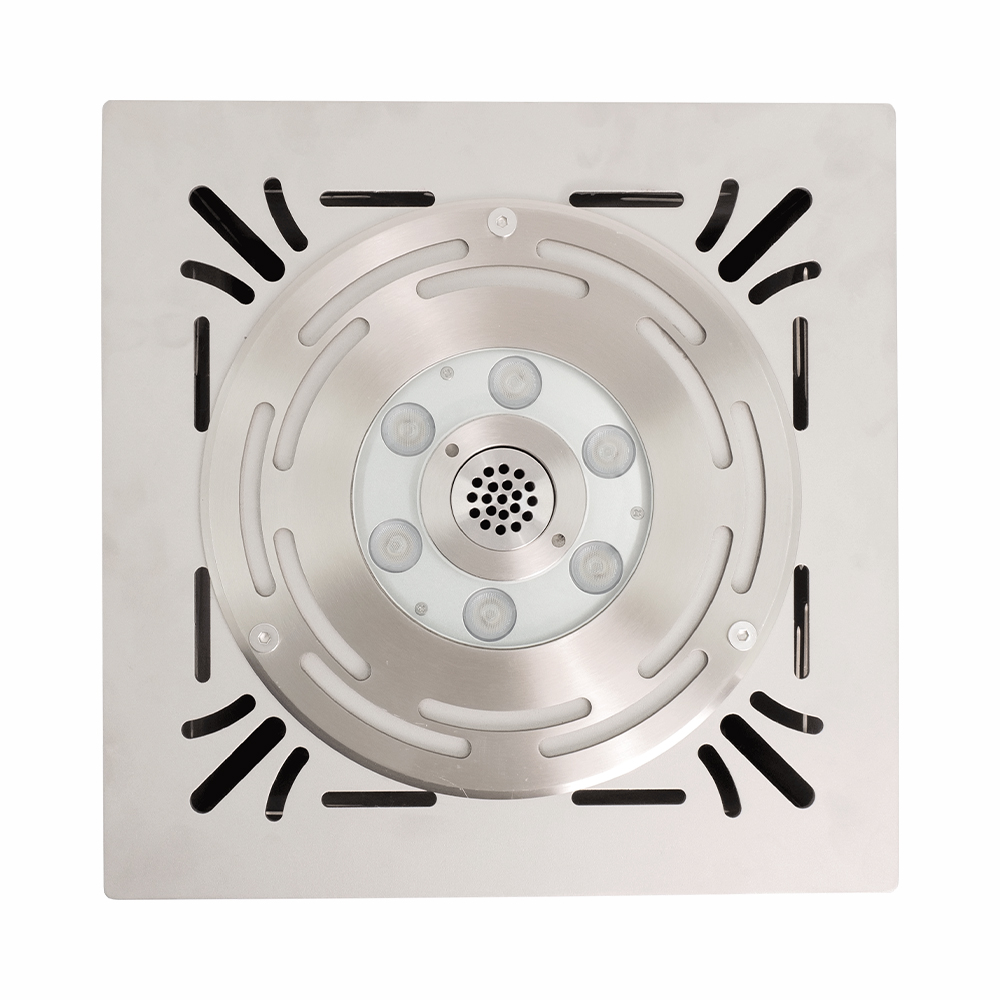

Top view of the Huaxin integrated dry deck fountain module showing the lighting panel

DMX512 Lighting on the Unit

Integrated 12 × 1 W lighting operates at 24V DC and supports programmed lighting effects through DMX512 control.

Operation & Water Effects

The 20 × Ø5 mm outlets produce one combined water formation. Its appearance changes with operating height, from a full foam effect to a taller vertical water column.

Vertical water column with a foaming top produced by a Huaxin dry deck fountain module

Low foam-jet effect produced by a Huaxin integrated dry deck fountain module

Technical Specifications

Specification	Integrated dry-deck module
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	400 × 400 × 320 mm
Net weight	20 kg
Jet outlets	20 × Ø5 mm
Indicative jet height	0.3–3.0 m
Pump operating voltage	24 V DC
Pump rated power	500 W
Power supply cable	JHS, 2 × 6 mm²
Control cable	JHSP, 3 × 1.5 mm²
Lighting operating voltage	24 V DC
Lighting configuration	12 × 1 W, DMX512

Jet height is indicative. Actual performance depends on operating and installation conditions.

Related Fountain Equipment

Huaxin laminar fountain jet unit for continuous water arcs

Laminar Jet

Produces a smooth, continuous water arc.

Huaxin jumping fountain jet unit for segmented water effects

Jumping Jet

Divides the water stream into separate segments for jumping effects.

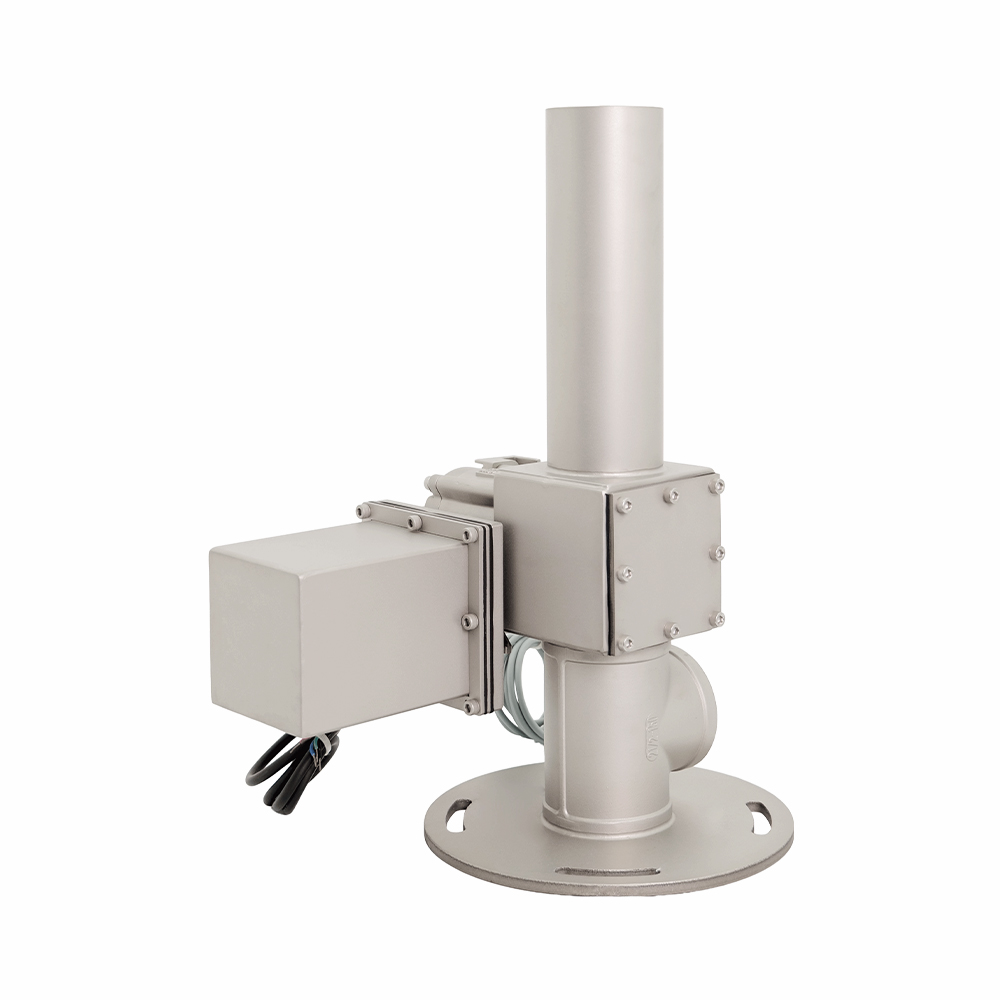

Huaxin standard variable-pattern fountain nozzle

Variable-Pattern Nozzle — Standard

Changes the water pattern between expanded and converged forms.

Specify This Module for Your Project

Send your fountain layout or installation drawing, the required quantity, target jet height, and available installation depth. Huaxin will help confirm the module arrangement, control requirements, and quotation.
