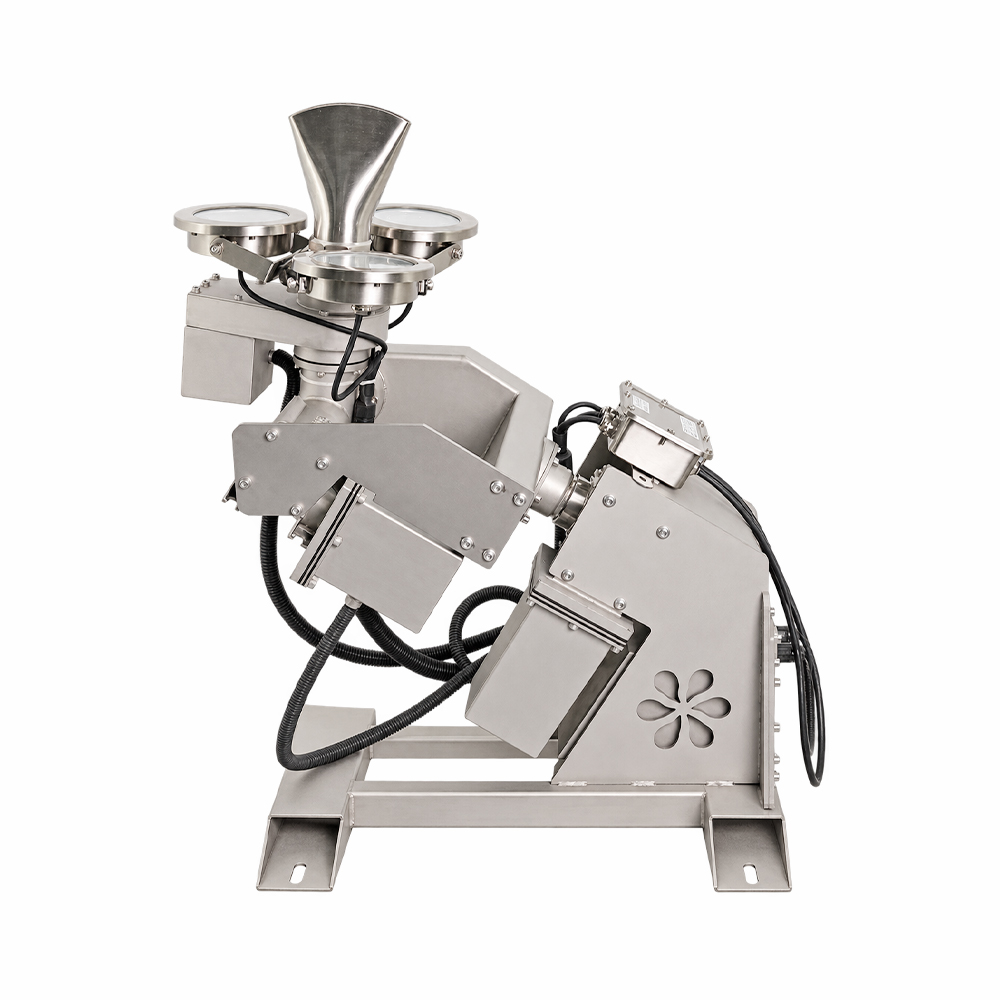

Huaxin integrated 3D fountain unit fitted with a fan jet nozzle and RGB lights

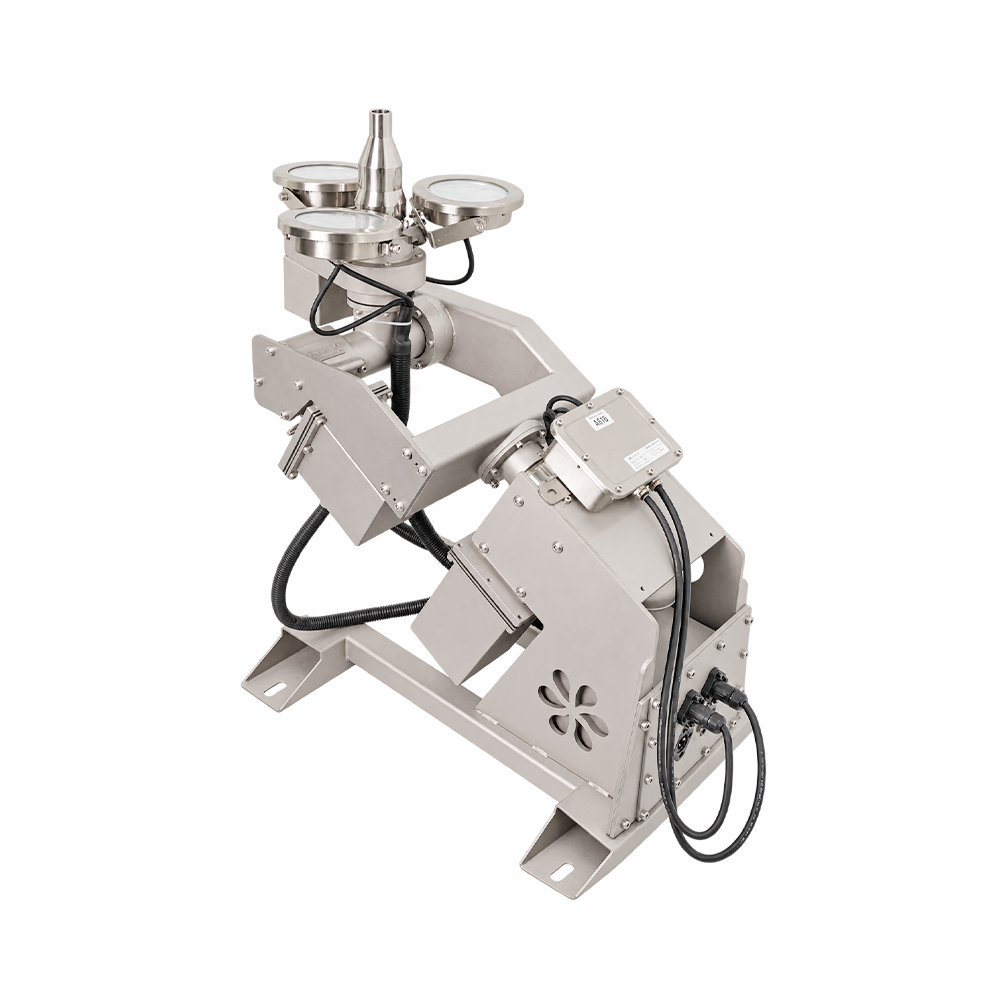

Huaxin integrated 3D fountain unit fitted with a straight jet nozzle and RGB lights

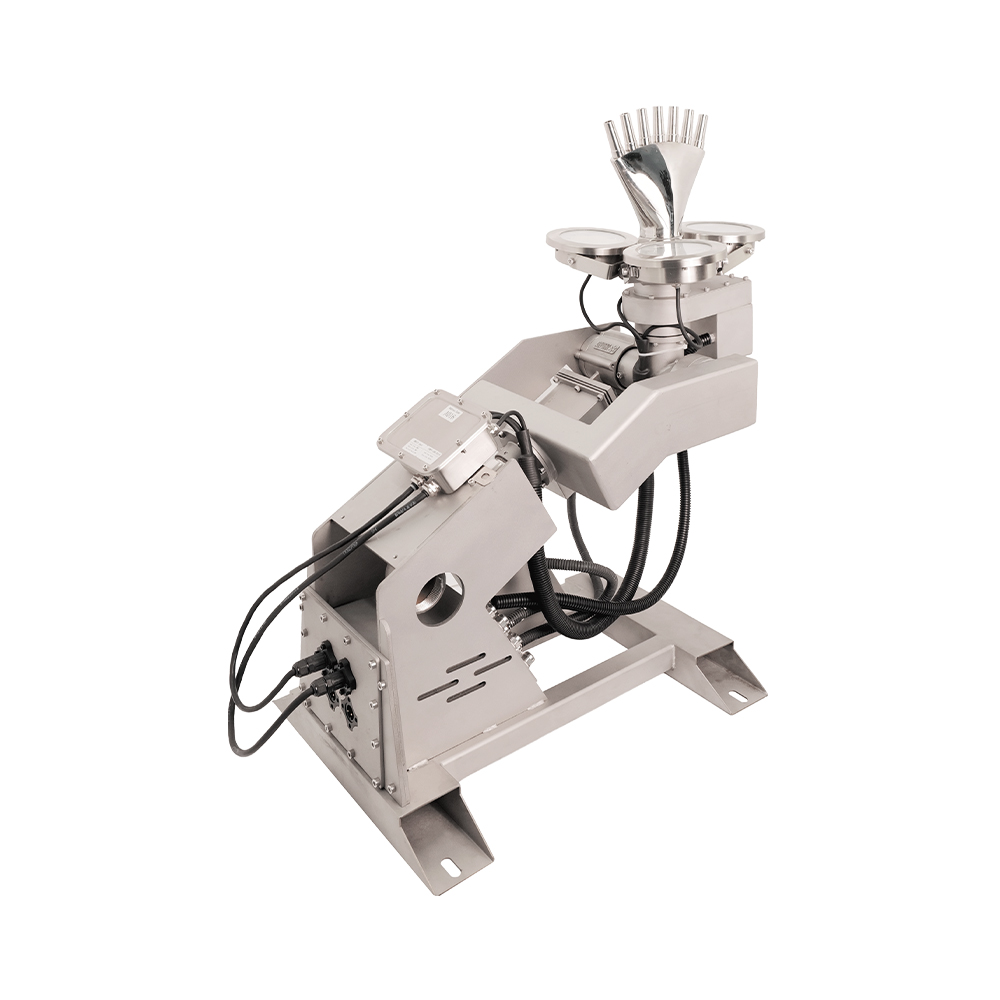

Huaxin integrated 3D fountain unit fitted with a finger jet nozzle and RGB lights

MOTION-CONTROLLED JET SYSTEMS

Three-Axis Multi-Directional Drive (3D) — Integrated

Directional movement. Rotating water patterns. Integrated light.

The Huaxin Integrated 3D Fountain Unit combines three independently controlled axes with DMX512-compatible control and built-in RGB lighting. Two axes position the nozzle, while a dedicated third axis rotates the nozzle head through 360°. This gives musical fountains, dancing fountains, and water shows an additional way to change the orientation of a water pattern during a programmed sequence.

Three independent axes · 360° nozzle-head rotation · DMX512 control · 3 × 36 W RGB lighting

Request a Quote

Why Choose the Integrated 3D Unit?

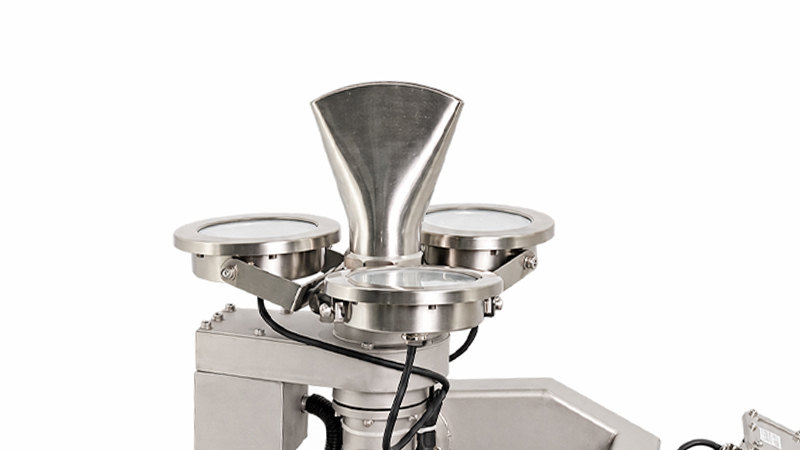

Close-up of the rotating nozzle-head assembly on a Huaxin integrated 3D fountain unit

An Extra Axis for Rotating Water Patterns

The dedicated nozzle-head drive adds rotation to the unit’s directional movement. With a fan jet nozzle, this allows the fan-shaped water sheet to change its orientation as the other two axes position the nozzle. Designers can combine sweeping and rotating effects within the same show sequence.

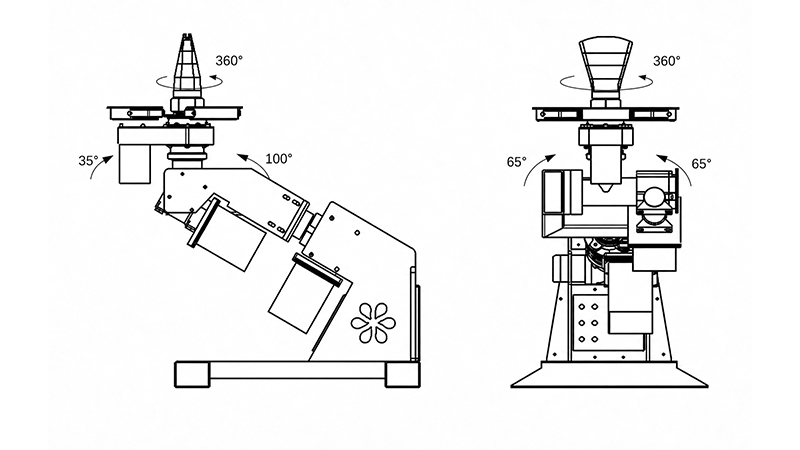

Movement range diagram of the Huaxin integrated 3D fountain unit, showing X-axis tilt from −35° to +100°, Y-axis swing of ±65°, and 360° Z-axis nozzle-head rotation.

Independent Control of Tilt, Swing and Rotation

The X-axis provides a tilt range of −35° to +100°, the Y-axis provides ±65° swing, and the Z-axis provides 360° nozzle-head rotation. Independent control lets programmers coordinate these movements according to the selected nozzle and intended water effect.

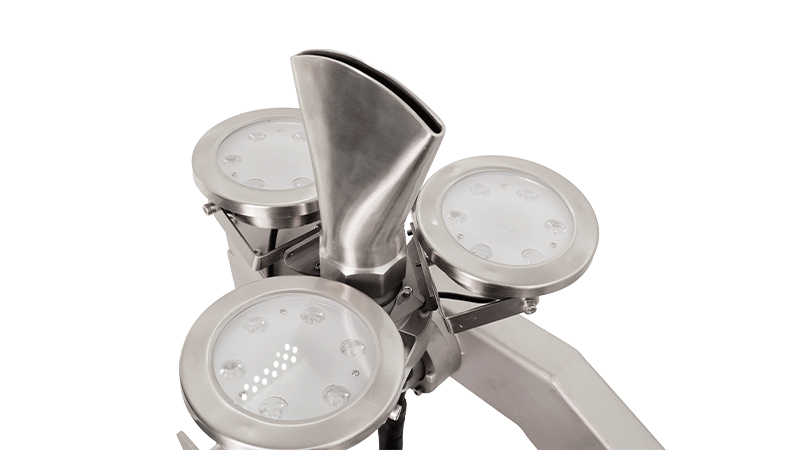

Three RGB LED lights arranged around the nozzle outlet on a Huaxin integrated 3D fountain unit

Movement and Colour in One Assembly

Three 36 W RGB LED lights are arranged around the nozzle outlet. Integrated lighting and DMX512-compatible control bring colour changes and three-axis movement into a coordinated fountain sequence, giving the equipment both daytime movement and illuminated nighttime effects.

huaxin-fountain-equipment-production-workshop-01

Configuration Support from the Manufacturer

Huaxin manufactures core fountain equipment in-house. Work directly with our team to coordinate nozzle selection, mounting arrangements, installation clearance, and control requirements, so the supplied unit matches the project’s intended water effect.

How the Three Axes Work

“3D” refers to three independently controlled movement axes. The X- and Y-axes position the nozzle, while the Z-axis rotates the nozzle head.

Axis	Movement	Specified range
X-axis	Nozzle tilt	−35° to +100°
Y-axis	Nozzle swing	±65°
Z-axis	Nozzle-head rotation	360°

Compared with a two-axis fountain unit, the integrated 3D model adds a dedicated nozzle-head rotation axis. This is particularly useful when the selected nozzle produces a directional pattern, such as a fan-shaped sheet, whose orientation changes visibly as the head rotates.

The final water effect depends on the nozzle, hydraulic conditions, equipment arrangement, and programming.

Nozzle Selection & Water Effects

Distinct water streams forming a fan-shaped pattern from a finger jet nozzle on a Huaxin integrated 3D fountain unit.

Fan-shaped water sheet produced by a Huaxin fan jet fountain nozzle

Swinging water-jet effect produced by Huaxin single-axis fountain equipment

Nozzle Configurations

Choose the nozzle according to the intended water pattern, available flow and head, and installation clearance.

Huaxin DN40 adjustable straight jet fountain nozzle

Straight Jet Nozzle

Produces a defined water stream for directional sweeps and coordinated moving-jet arrangements. Select the straight jet configuration to suit the required connection and water trajectory.

Huaxin fan jet fountain nozzle with a fan-shaped outlet

Fan Jet Nozzle

Produces a broad, fan-shaped sheet of water. The rotating nozzle head changes the orientation of the sheet, while tilt and swing position the effect through the show sequence.

Huaxin finger jet fountain nozzle with multiple outlets for separate water streams

Finger Jet Nozzle

Produces multiple separate streams arranged in a fan-shaped pattern.

Technical Specifications & Dimensions

Specification	Integrated 3D version
Drive arrangement	Three independently controlled axes
Material	SUS304 stainless steel
Net weight	62 kg
Water inlet connection	DN50
Water outlet connection	DN50
Indicative jet height*	8–15 m
X-axis tilt range	−35° to +100°
Y-axis swing range	±65°
Z-axis nozzle-head rotation	360°
Output torque, upper / lower axis	85 / 120 N·m
Rotating nozzle-head output torque	5 N·m
Main gear reduction ratio	1:10
Rotating nozzle-head gear reduction ratio	1:2
Total rated power	700 W
Motor operating voltage	DC 60–90 V
Lighting configuration	Integrated RGB LED lighting, 3 × 36 W
Lighting supply voltage	24 V DC
Control compatibility	DMX512
Power cable	JHS, 2 × 6 mm²
Control cable	JHSP, 3 × 1.5 mm²

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions.

Related Fountain Units

Huaxin integrated 1D swing fountain unit with DMX512 control and RGB lighting

1D Unit — Integrated

Integrated DMX512 control and RGB lighting.

Huaxin integrated 2D fountain unit with DMX512 control and RGB lighting

2D Unit — Integrated

Integrated DMX512 control and RGB lighting.

Specify This Unit for Your Project

Send your fountain layout, required quantity, preferred nozzle type, target jet height, and control requirements. Huaxin can help review the three-axis movement clearance, mounting arrangement, hydraulic connections, and intended water-and-light sequence before preparing a quotation.
