LAMINAR & JUMPING JET SYSTEMS

Jumping Fountain Jets

Segmented water arcs for musical fountains and water shows, with standard and submersible jumping jets and optional laser illumination on request.

Request a Quote
Home » Fountain Equipment » Laminar & Jumping Jet Systems » Jumping Fountain Jets

See the Jumping Effect in Motion

Water is conditioned inside the unit to form a smooth laminar stream. An internal cutting mechanism then interrupts that stream, creating separate sections of water that travel along the arc.

Watch the jumping effect in motion to see how the water segments travel along the arc. The video shows the movement and timing that a still photograph cannot fully convey.

LAMINAR & JUMPING JET SYSTEMS

Jumping Fountain Jets

Glass-like water arcs with programmable jumping effects.

Huaxin jumping fountain jets use an internal cutting mechanism to divide a smooth laminar stream into separate water segments. The result is a clear, arcing water effect with a visible jumping rhythm for musical fountains and choreographed water shows. Choose standard or submersible models to suit the installation. Optional laser illumination is available on request.

Internal stream cutting · Programmable sequences · Submersible configurations

Request a Quote

Designed for Choreographed Water Effects

Close-up of separated water segments near a Huaxin jumping jet outlet

Stream Cutting Built into the Unit

The internal cutter works with the laminar jet assembly to produce separated water segments. This combines a clear water arc and the jumping effect within one fountain unit.

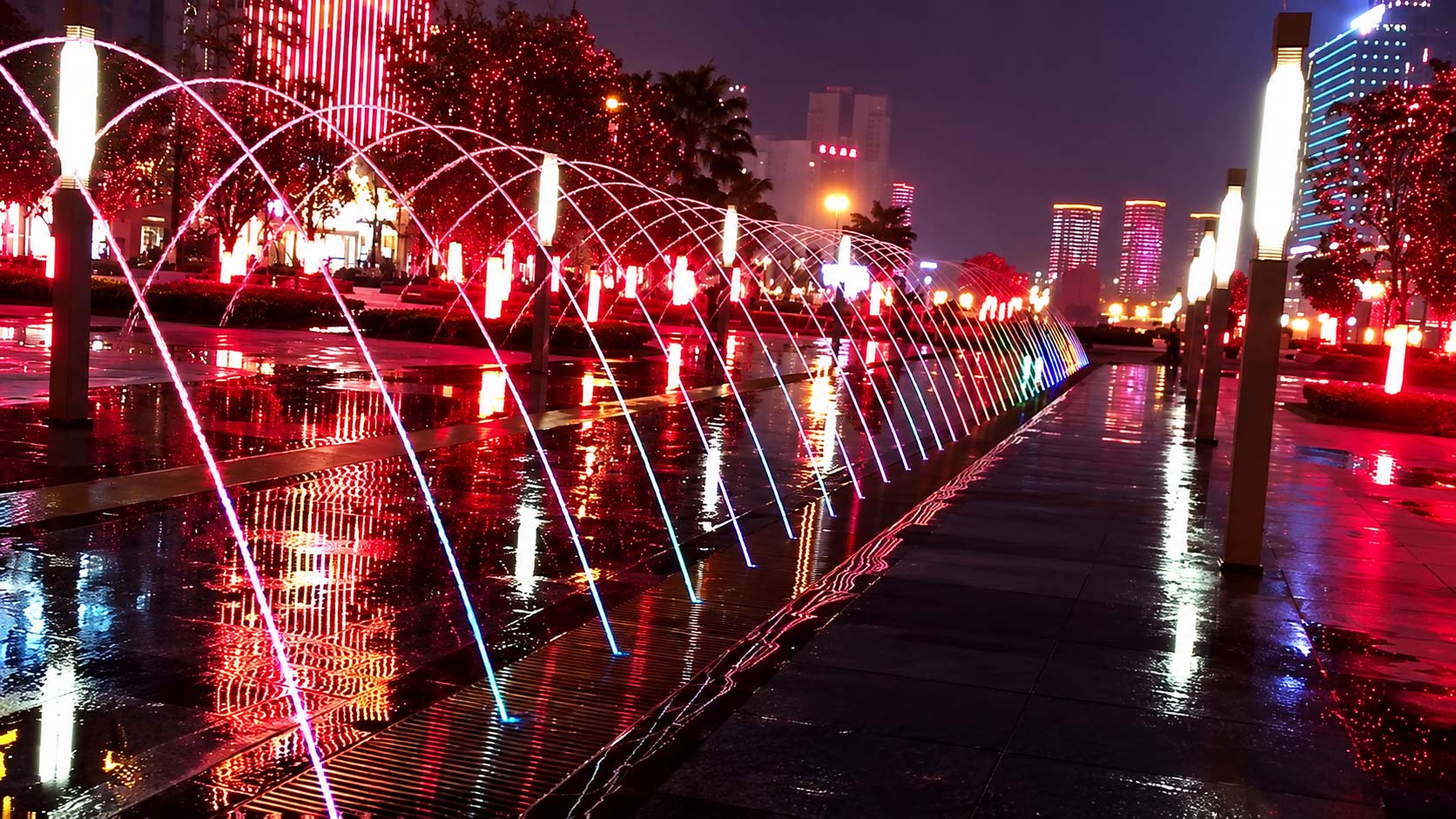

Multiple Huaxin jumping fountain jets in operation

Rhythm Across Multiple Jets

With a compatible fountain control system, cutting sequences can be coordinated across multiple units to create repeated, alternating, or chasing patterns. This gives designers more ways to introduce rhythm into a water show.

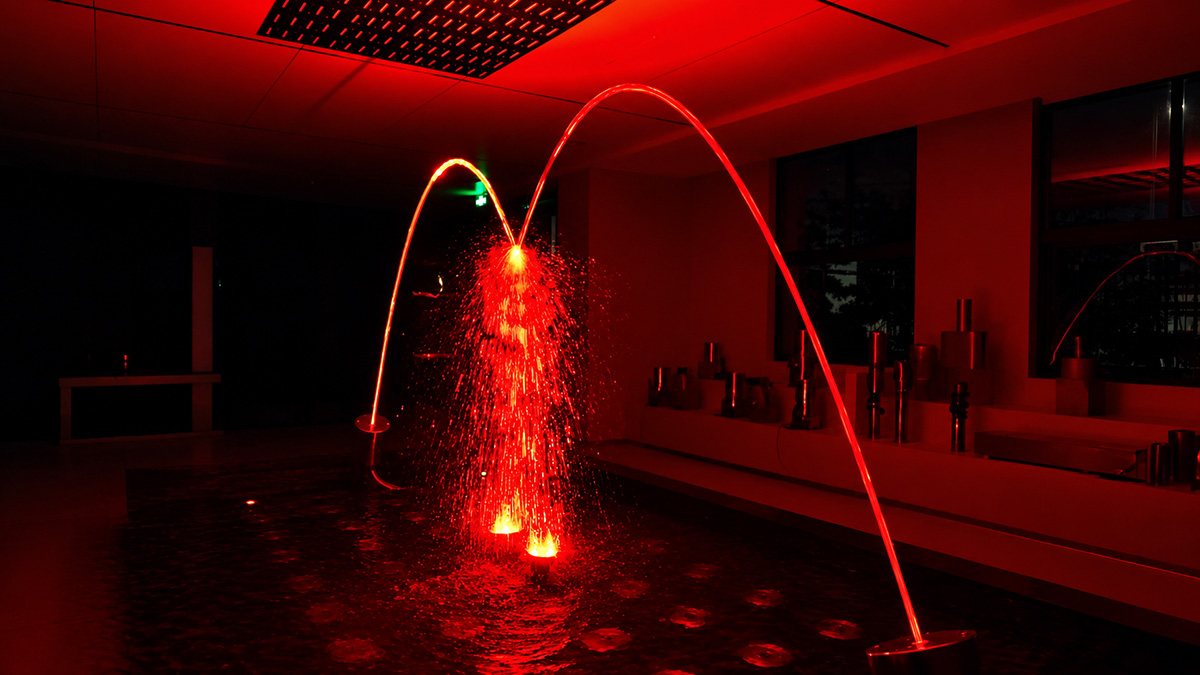

Water arcs and landing positions of Huaxin jumping fountain jets in a pool

Plan the Effect Around the Layout

Arrange jumping jets along a linear pool, in opposing pairs or as part of a larger fountain composition. Select the outlet size, height, and span around the intended landing area and the space available for installation.

Choose Your Jumping Jet

Share your intended viewing conditions and lighting requirements with Huaxin to confirm the configuration for your project.

Huaxin jumping fountain jet unit for segmented water effects

Standard Jumping Jet

Combines a laminar water stream with an internal cutting mechanism for segmented water effects. Four outlet sizes provide options for different stream diameters, heights, and spans.

View Standard Specifications

Huaxin submersible jumping jet unit with a protective outlet tube

Submersible Jumping Jet

Combines a protective outlet tube with the internal cutting mechanism, allowing the equipment body to be installed below the water surface while producing separated water segments.

The tube length and installation position are coordinated with the project’s operating water level.

View Submersible Specifications

Huaxin jumping fountain jet unit with laser illumination

Laser-Illuminated Jumping Jet

Combines the jumping mechanism with a laser light source to illuminate the water stream. It uses the same stream-cutting principle as the standard version, creating segmented water arcs with a different lighting configuration.

View Laser-Illuminated Specifications

Technical Specifications & Hydraulic Selection

Use the following catalogue values to compare configurations and outlet sizes. Review the required trajectory, operating water level, and available installation space before finalizing the model.

Standard Jumping Jet

ModelOutlet ØInletFlow (m³/h)Listed pump head (m)Jet height (m)Jet span (m)
HX-ST2-10-2510 mmDN25342.02.2
HX-MT2-14-4014 mmDN404102.23.2
HX-LT2-16-4016 mmDN405122.84.7
HX-XLT2-18-4018 mmDN407143.05.5

Submersible Jumping Jet

ModelOutlet ØInletFlow (m³/h)Listed pump head (m)Jet height (m)Jet span (m)
HX-SsT4-10-2010 mmDN25341.61.7
HX-SmT4-14-4014 mmDN404101.82.7
HX-SlT4-16-4016 mmDN405122.44.2
HX-SxlT4-18-4018 mmDN407142.85.0

Laser-Illuminated Jumping Jet

ModelOutlet ØInletFlow (m³/h)Listed pump head (m)Jet height (m)Jet span (m)
HX-MT514-4014 mmDN404102.23.2
HX-LT516-4016 mmDN405122.84.7
HX-XLT518-4018 mmDN407143.05.5

Height and span are indicative catalogue values. Confirm the installation angle, height reference, and landing level for the selected configuration. Final pump selection must account for the complete hydraulic system, including pipework and filtration.

Dimensions & Weights

Outlet ØStandard / submersible dimensions, L × W × H (mm)Standard/submersible weight (kg)Laser dimensions, L × W × H (mm)Laser weight (kg)
10 mm209 × 230 × 42711.0——
14 mm251 × 264 × 55017.1260 × 240 × 55017.6
16 mm335 × 310 × 63023.8335 × 310 × 63024.2
18 mm345 × 373 × 65531.0318 × 327 × 62831.5

For submersible models, the listed dimensions and weights cover the base unit only and exclude the customized protective outlet tube.

Request Dimensional Drawings

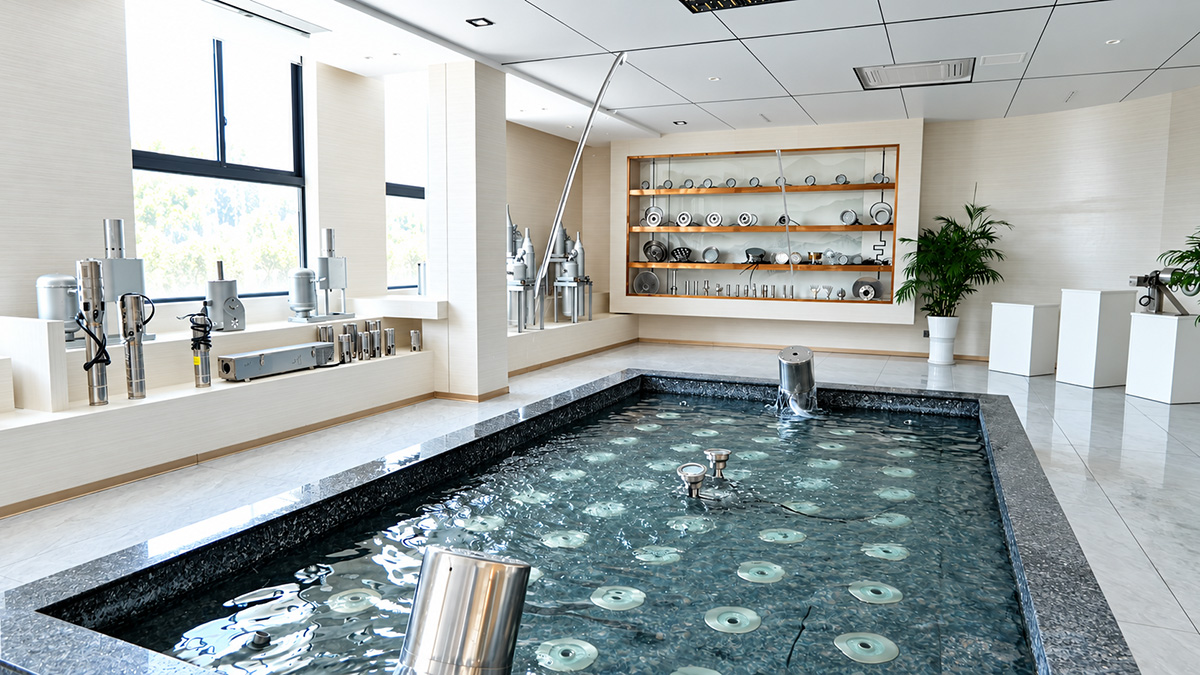

Daytime view of Huaxin jumping fountain jets showing installation angles and water arcs

Installation, Water Supply & Control

Provide clean, appropriately filtered water with a steady supply to the jet. Coordinate pipework and flow adjustment with the target height and span, and leave access to the outlet and cutting mechanism for inspection and maintenance.

The standard model requires its outlet to remain above the operating water level. For submersible installations, select the dedicated configuration and coordinate the protective outlet tube with the water level.

Confirm the cutter’s electrical requirements, control interface, and lighting configuration for the selected model. For outdoor installations, consider wind exposure and the receiving area when planning the water path.

Discuss Installation Requirements

Contact us for installation drawings and guidance.

Factory workshop showing real production capacity for custom fountain projects

From Manufacturing to Project Support

Huaxin manufactures core fountain equipment in-house and supports the engineering around its use. Our team can help coordinate jumping-jet selection, hydraulic requirements, controls, and installation details within the overall fountain design.

Send your layout and a reference for the intended jumping sequence so that equipment selection and show requirements can be reviewed together.

Explore Our Factory in VR

Jumping Jet Questions

A laminar jet produces a continuous water arc. A jumping jet adds an internal cutting mechanism that divides the stream into separate sections, creating the appearance of water jumping through the air.

They can be incorporated into a programmed fountain sequence using a compatible control system. The control interface, wiring, and lighting arrangement need to be confirmed for the selected equipment and project.

Choose the submersible jumping jet for this arrangement. Its protective outlet tube and installation position are configured around the operating water level.

The laser-illuminated version uses a laser light source while retaining the same stream-cutting principle. Both versions create segmented water arcs. The laser configuration is offered with 14, 16, and 18 mm outlets; model specifications are listed above.

Provide the target height and span, landing position, operating water level, preferred lighting, quantity, and control requirements. A layout drawing and a reference video of the intended sequence help define the configuration.

Related Equipment

Huaxin laminar fountain jet unit for continuous water arcs

Laminar Fountain Jets

Create smooth, continuous water arcs with a transparent, glass-like appearance. Standard, submersible, and laser-illuminated configurations are available.

Specify Jumping Jets for Your Project

Send your fountain layout, required quantity, target jet height and span, operating water level, lighting preference, and control requirements. Huaxin will help confirm the equipment configuration and prepare a quotation for your project.
