Motion-Controlled Jet Systems

1D, 2D & 3D Robotic Fountain Nozzles for Musical Fountains and Water Shows

Huaxin motion-controlled jet systems combine programmable drive mechanisms with selected fountain nozzles to create moving water effects. The range covers single-axis (1D), dual-axis (2D), and three-axis (3D) configurations for musical fountains, dancing fountains, and choreographed water shows.

Browse Equipment

Discuss Your Project

1D Swing Fountain Units

Programmable single-axis movement changes the water jet’s direction. Choose from standard, integrated, dual-nozzle, and triple-nozzle configurations.

Single-Axis Swivel Drive (1D) — Standard

Programmable single-axis swing with position feedback and DN40/DN50 connection options.

Huaxin integrated 1D swing fountain unit with DMX512 control and RGB lighting

Single-Axis Swivel Drive (1D) — Integrated

Single-axis swing with integrated DMX512 control, 3 × 9 W RGB lighting, and a ±60° swivel range.

Huaxin dual-nozzle 1D swing fountain unit for switching between two water effects

Dual-Nozzle Single-Axis Swivel Drive (1D)

Two selectable nozzle positions on one programmable axis for switching between different water effects.

Huaxin triple-nozzle 1D swing fountain unit for switching among three water effects

Triple-Nozzle Single-Axis Swivel Drive (1D)

Three selectable nozzle positions, spaced 120° apart, for switching among different water effects.

2D Swivel Fountain Units

Two controlled movement axes guide the nozzle through changing directions. The range includes internal and external slip-ring designs, a low-profile unit, an integrated version, and multi-nozzle configurations.

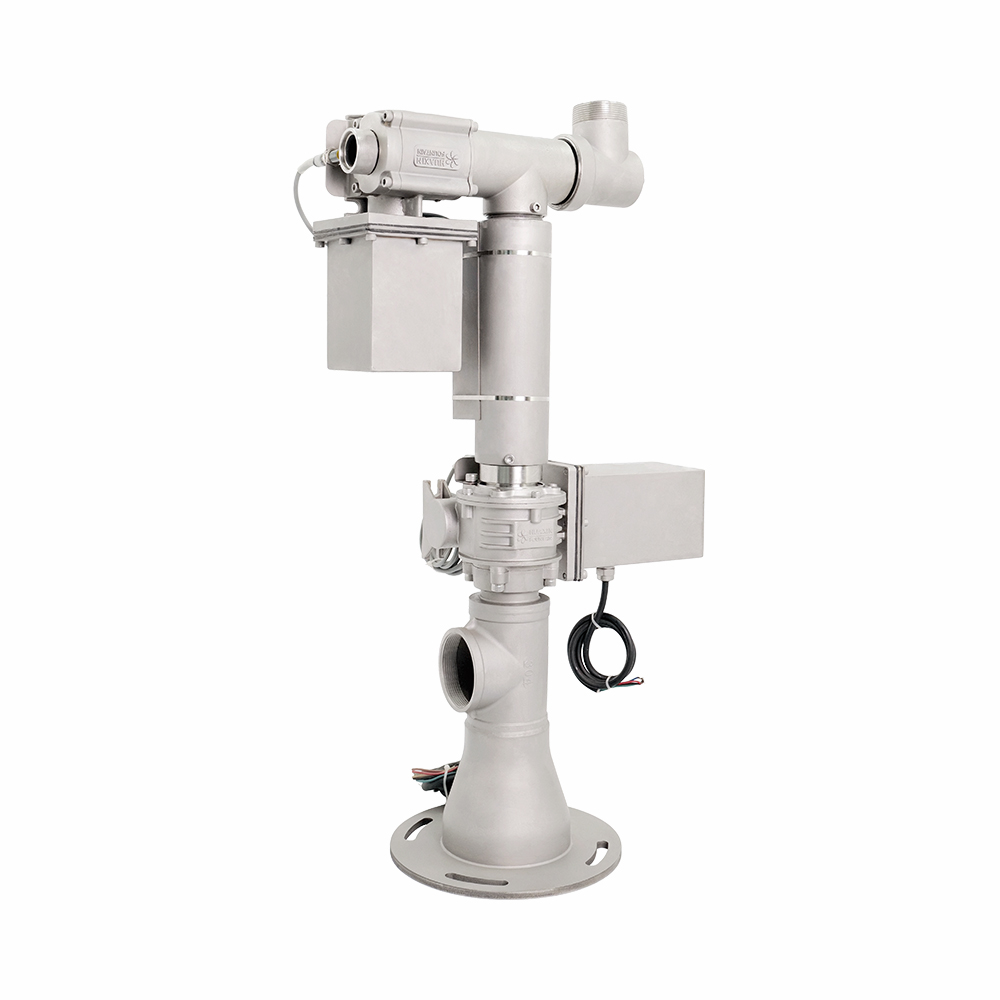

Huaxin dual-axis fountain swivel drive with an internal slip ring

Dual-Axis Swivel Drive (2D) — Internal Slip Ring

Dual-axis movement with an internal slip ring and a smaller installation footprint than the external slip-ring version.

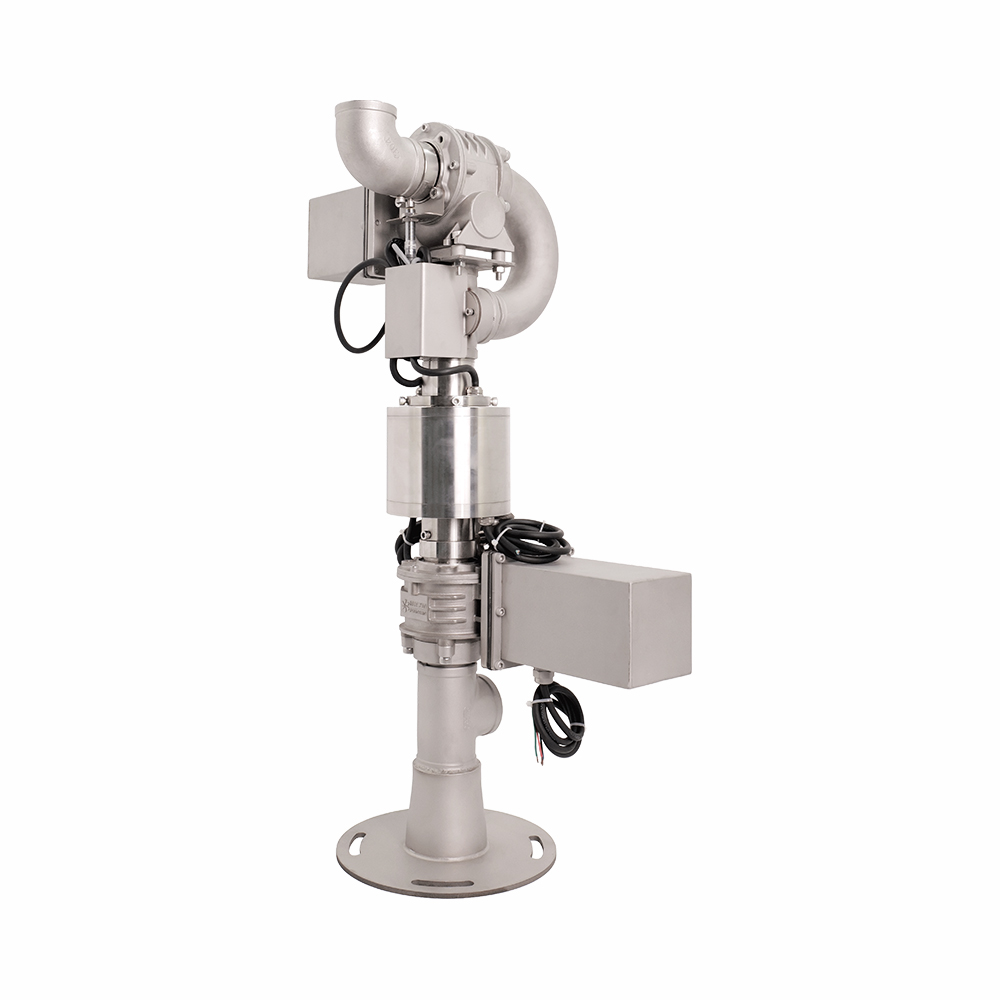

Huaxin dual-axis fountain swivel drive with an external slip ring

Dual-Axis Swivel Drive (2D) — External Slip Ring

Dual-axis movement with an external slip ring and position-feedback sensors for programmed directional motion.

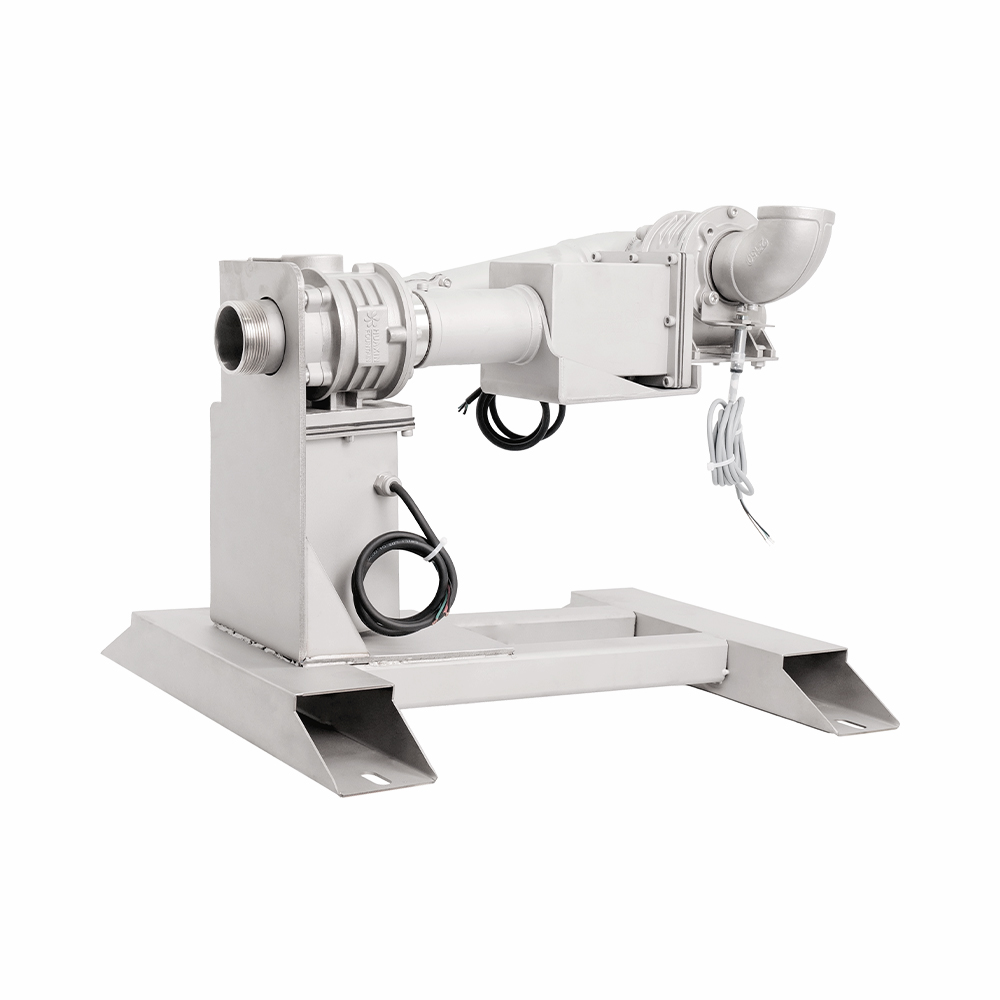

Low-Profile Dual-Axis Swivel Drive (2D)

Low-profile construction with ±80° lower-axis movement and 360° upper-axis rotation for layouts with restricted installation height.

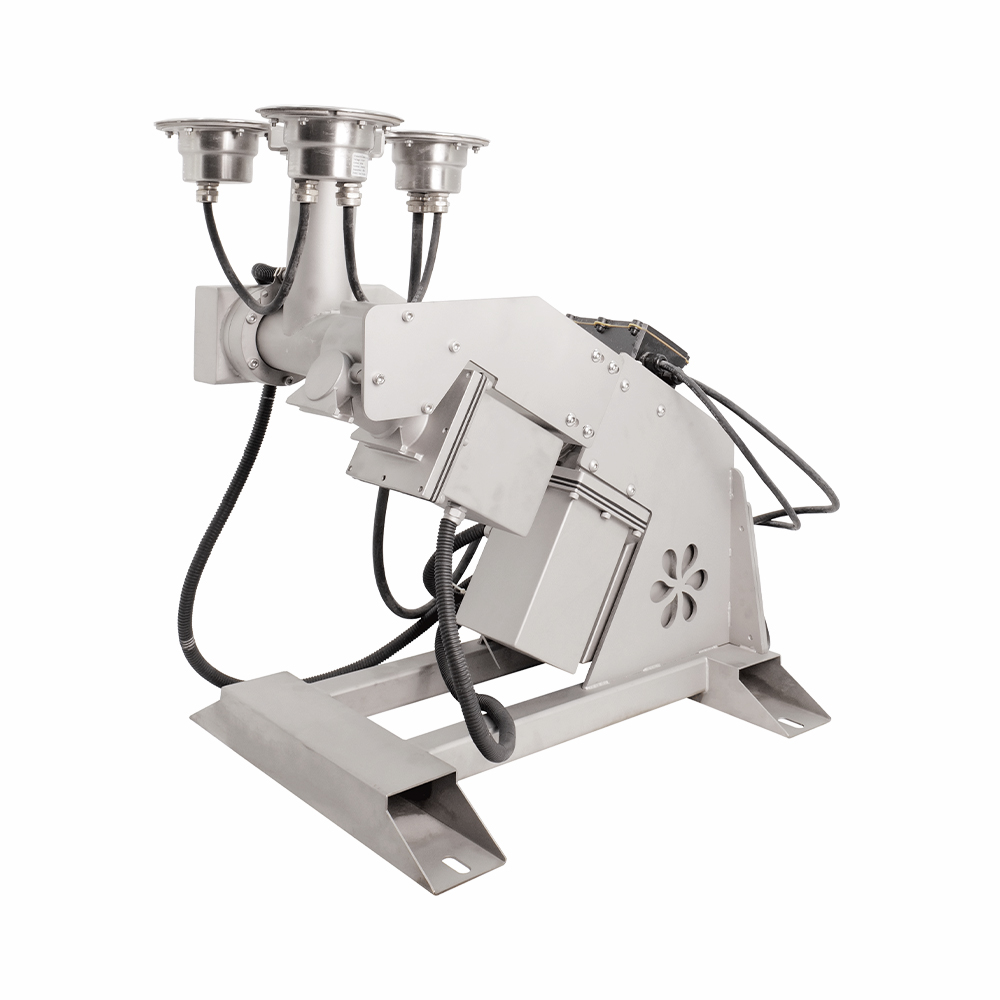

Huaxin integrated 2D fountain unit with DMX512 control and RGB lighting

Dual-Axis Swivel Drive (2D) — Integrated

Two independently controlled movement axes with integrated RGB lighting and DMX512-compatible control.

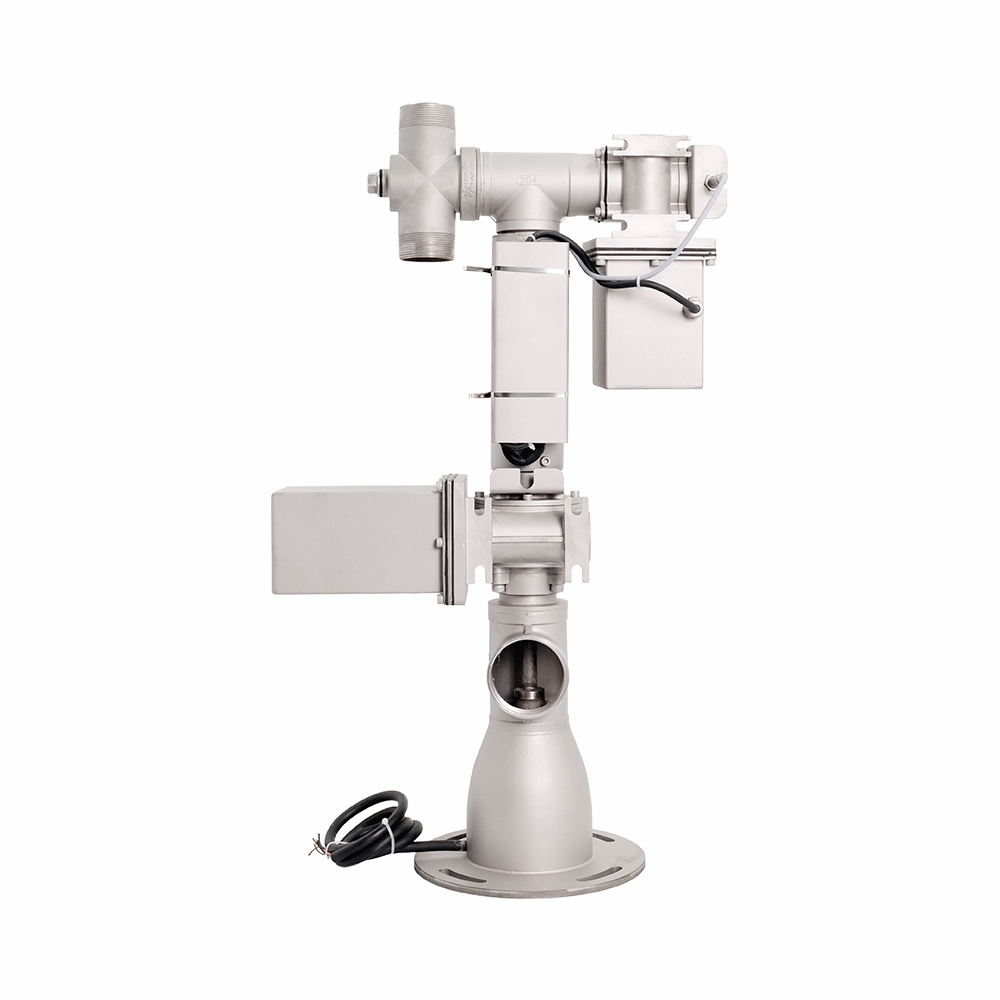

Huaxin dual-nozzle 2D fountain unit with two DN50 nozzle outlets

Dual-Nozzle Dual-Axis Swivel Drive (2D)

Two DN50 nozzle outlets on a shared dual-axis mechanism, with 360° upper-axis rotation.

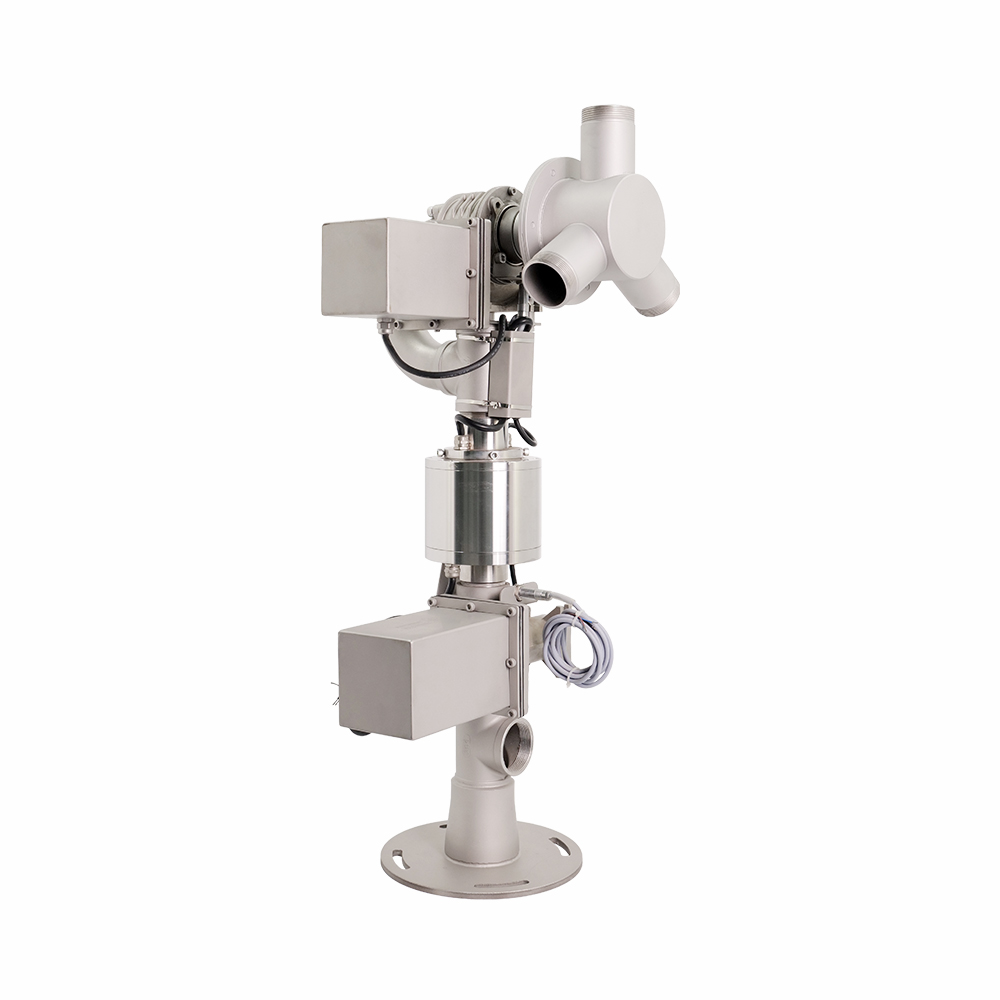

Huaxin triple-nozzle 2D fountain unit with three DN50 nozzle outlets

Triple-Nozzle Dual-Axis Swivel Drive (2D)

Three DN50 nozzle outlets on a dual-axis mechanism for programmed swinging and rotary water effects.

3D Multi-Directional Fountain Unit

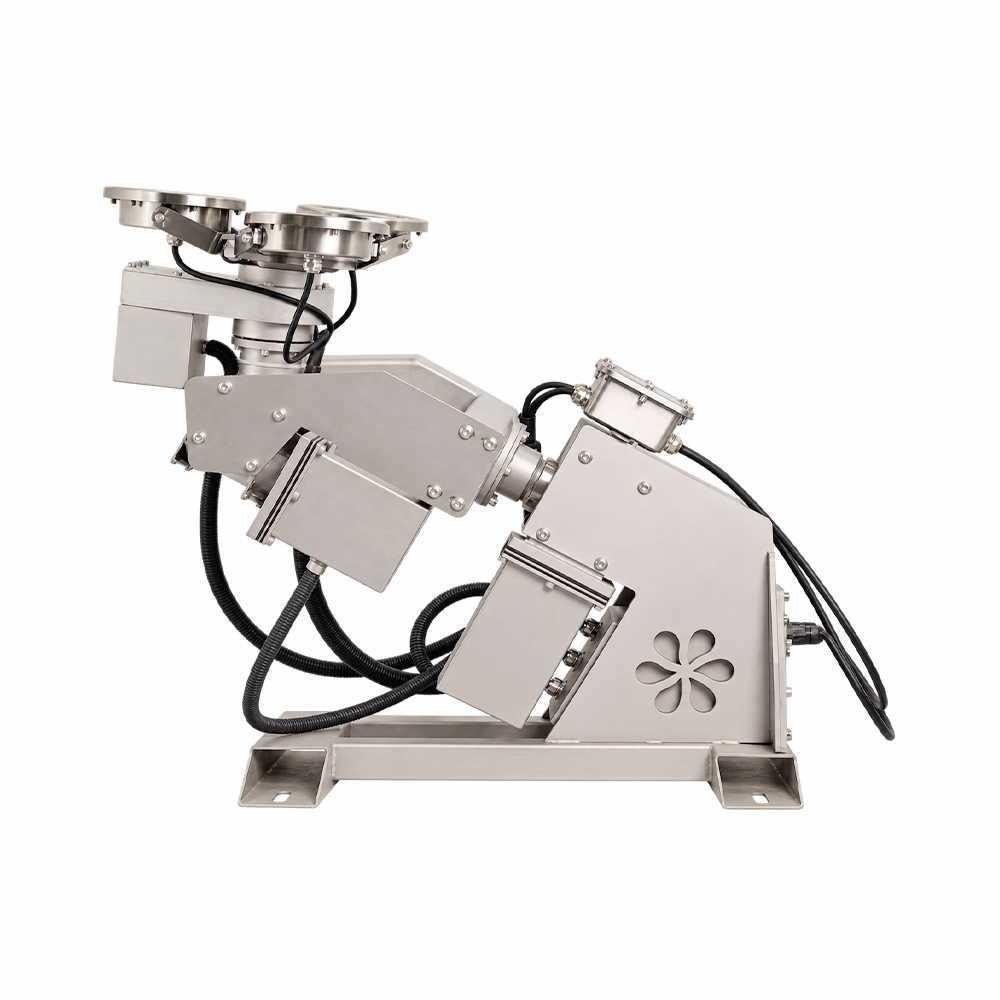

Huaxin integrated 3D fountain unit with a rotating nozzle head and RGB lighting

Three-Axis Multi-Directional Drive (3D) — Integrated

Three independently controlled axes combine directional nozzle positioning with dedicated 360° nozzle-head rotation. Integrated RGB lighting and DMX512-compatible control support coordinated water-and-light sequences.

Choosing a Fountain Motion System

1D, 2D, and 3D describe the number of controlled movement axes. Dual-nozzle and triple-nozzle describe the nozzle positions or outlets on a unit.

Project requirement	Configuration to consider
Single-axis swinging water effects	1D units
Water effects requiring two controlled movement axes	2D units
Directional positioning with additional nozzle-head rotation	Integrated 3D unit
Restricted vertical installation space	Low-profile 2D unit
Integrated control and lighting	Integrated 1D, 2D, or 3D units

Confirm the nozzle type, installation dimensions, inlet and outlet connections, pump flow and head, and control requirements when selecting a model. Movement ranges and electrical specifications vary by unit.

Select Equipment for Your Water Show

Send your fountain layout, intended water effects, target jet height, and control requirements. Huaxin will help identify suitable configurations for your project.
