MOTION-CONTROLLED JET SYSTEMS

Triple-Nozzle Dual-Axis Swivel Drive (2D)

Huaxin triple-nozzle 2D fountain unit with three DN50 outlets, dual-axis movement and 360° rotation for musical fountains and choreographed water shows.

Home » Fountain Equipment » Motion-Controlled Jet Systems » 2D Fountain Unit — Triple-Nozzle

Huaxin triple-nozzle 2D fountain unit with three DN50 nozzle outlets

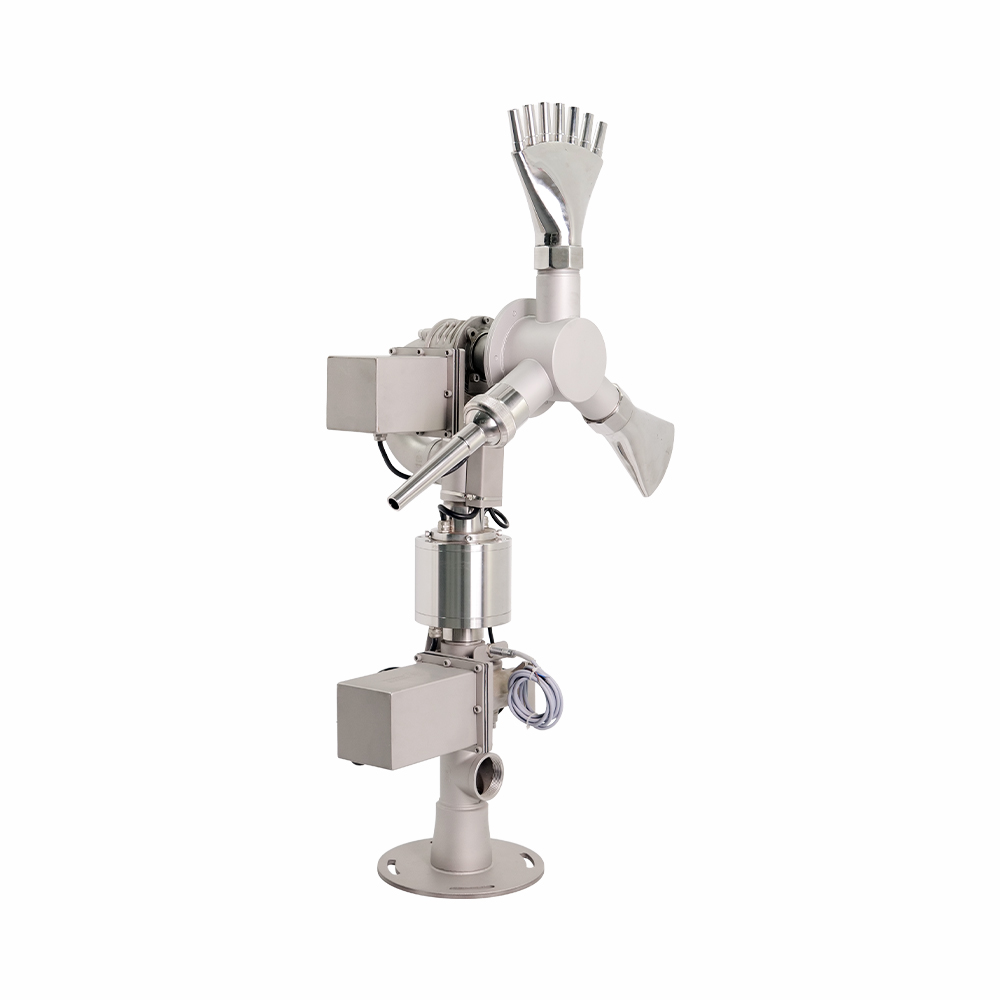

Angled view of a Huaxin triple-nozzle 2D fountain unit with straight jet, fan jet and finger jet nozzles

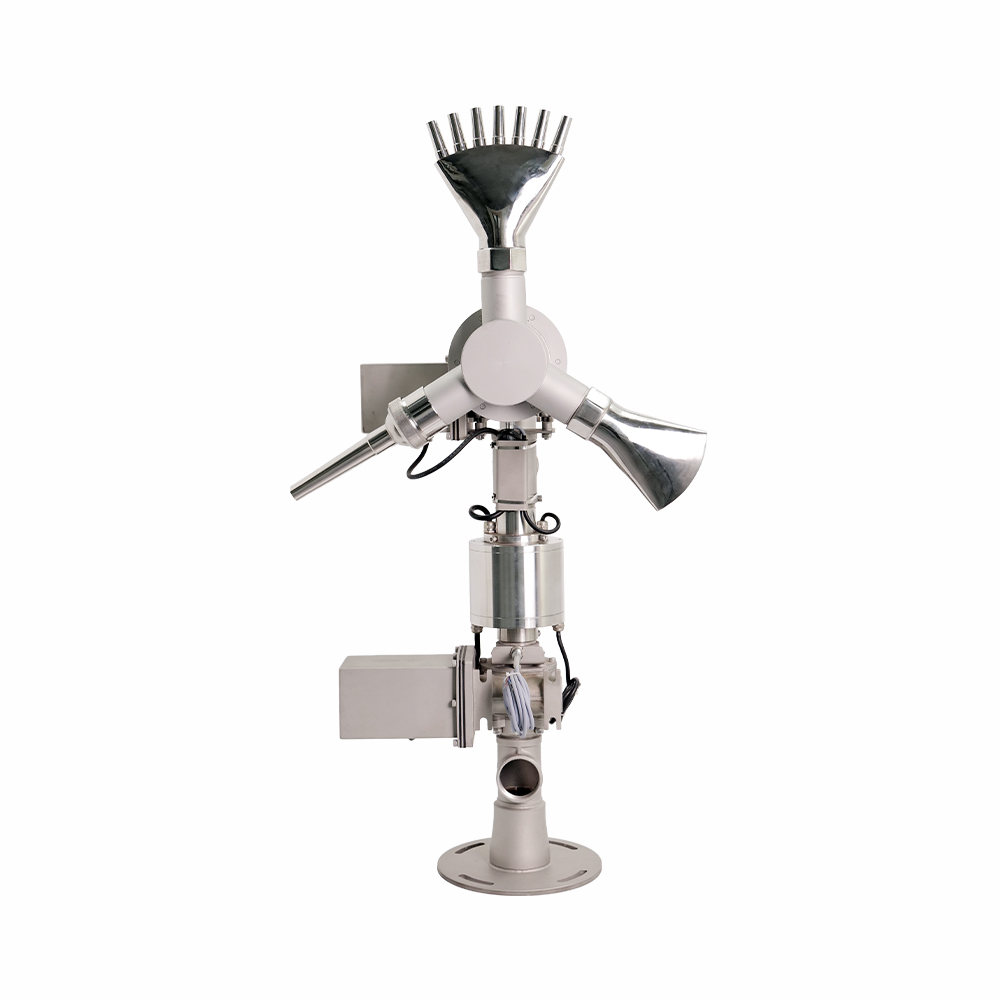

Huaxin triple-nozzle 2D fountain unit fitted with straight jet, fan jet and finger jet nozzles

MOTION-CONTROLLED JET SYSTEMS

Triple-Nozzle Dual-Axis Swivel Drive (2D)

Three nozzle positions for more varied water effects.

The Huaxin Triple-Nozzle 2D Fountain Unit combines three DN50 nozzle outlets with controlled swinging and rotary movement. Its shared dual-axis mechanism carries a selected nozzle combination through programmed sequences, giving designers more water-pattern options at one equipment position for musical fountains, dancing fountains, and water shows.

Three DN50 nozzle outlets · Dual-axis movement · 360° rotation range · SUS304

Request a Quote

Why Choose the Triple-Nozzle Version?

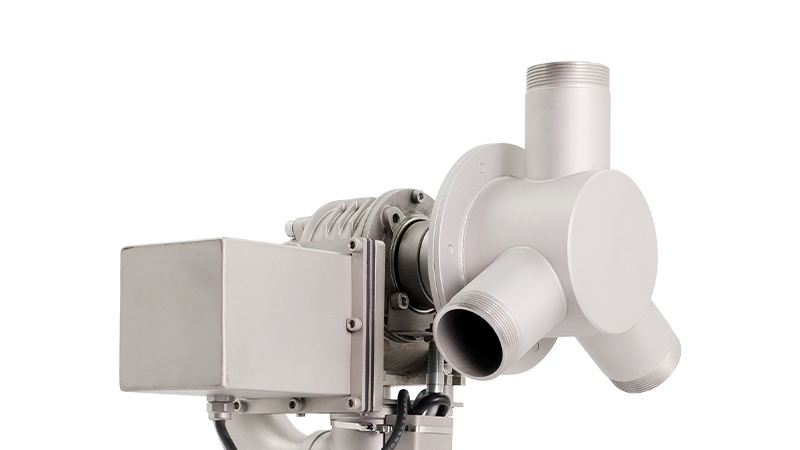

Close-up of the three nozzle outlets on a Huaxin triple-nozzle 2D fountain unit

More Water-Pattern Options at One Position

Three nozzle positions allow a defined jet, a broad water sheet, and a multi-stream effect to be configured on the same assembly. This makes the triple-nozzle version an option for show designs that call for several distinct water forms at a single equipment location.

Water-jet effects produced by Huaxin dual-axis fountain units

Huaxin 2D fountain equipment creating multi-directional water effects

Swinging and Rotary Motion in One Unit

The dual-axis drive combines directional swing with rotary movement to change the orientation of the nozzle assembly. A specified 360° rotation range supports full-circle movement sequences, adding another way to develop the selected water effects through programming.

huaxin-fountain-equipment-production-workshop-01

Nozzle Combinations Matched to the Project

Huaxin manufactures core fountain equipment in-house. Our team can coordinate the three-nozzle arrangement, hydraulic requirements, installation clearance, and control configuration with your project drawings, helping match the supplied equipment to the intended performance.

Movement & Water Effects

“Triple-nozzle” refers to the three nozzle positions, while “2D” refers to the two controlled movement axes. All three nozzle positions are carried by the shared mechanism, with the fountain control system coordinating the drive movements.

Use the operation video to review the triple-nozzle unit’s motion, then explore water-effect examples from the 2D range. Final effects depend on nozzle selection, hydraulic arrangement, equipment layout, and programming.

Nozzle Combinations

Select the nozzle combination according to the required water forms, available flow and head, and intended operating sequence. Check clearance with all three nozzles fitted throughout the programmed movement.

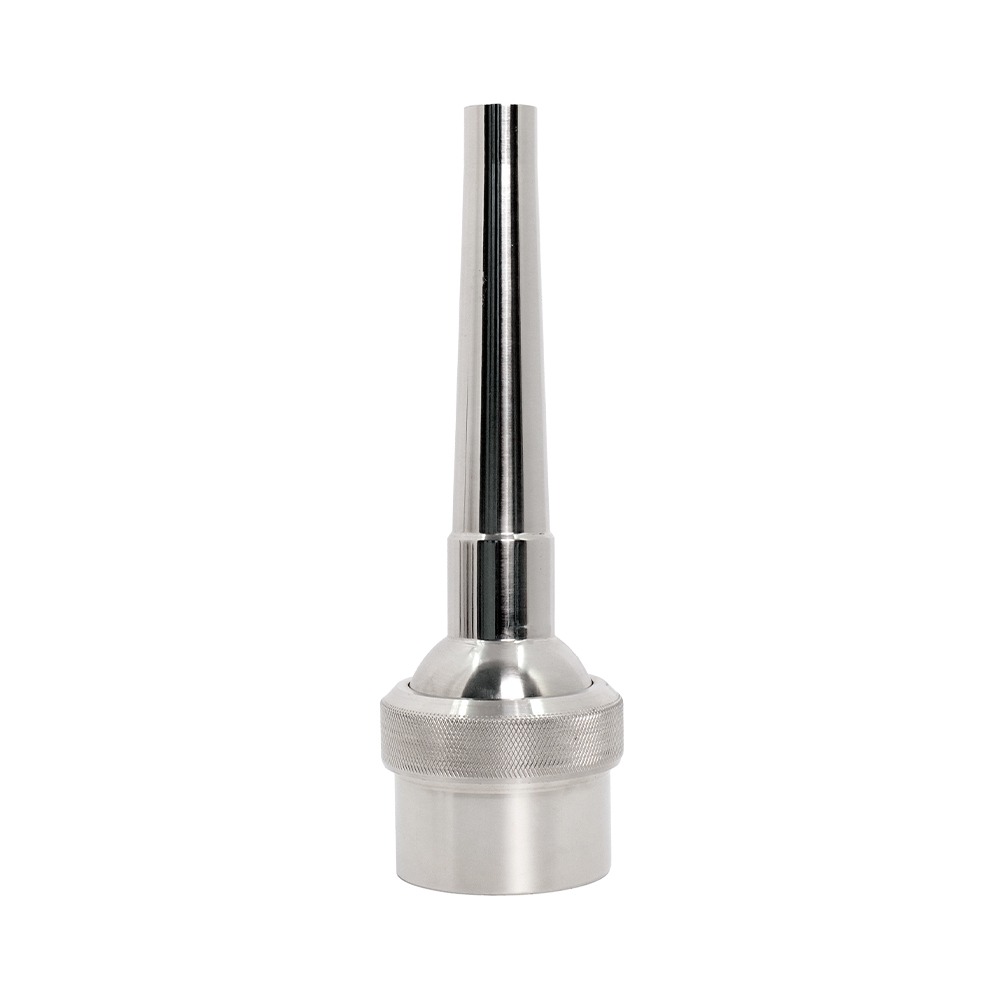

Huaxin DN40 adjustable straight jet fountain nozzle

Straight Jet Nozzle

Produces a defined water stream for directional sweeps and moving-jet arrangements.

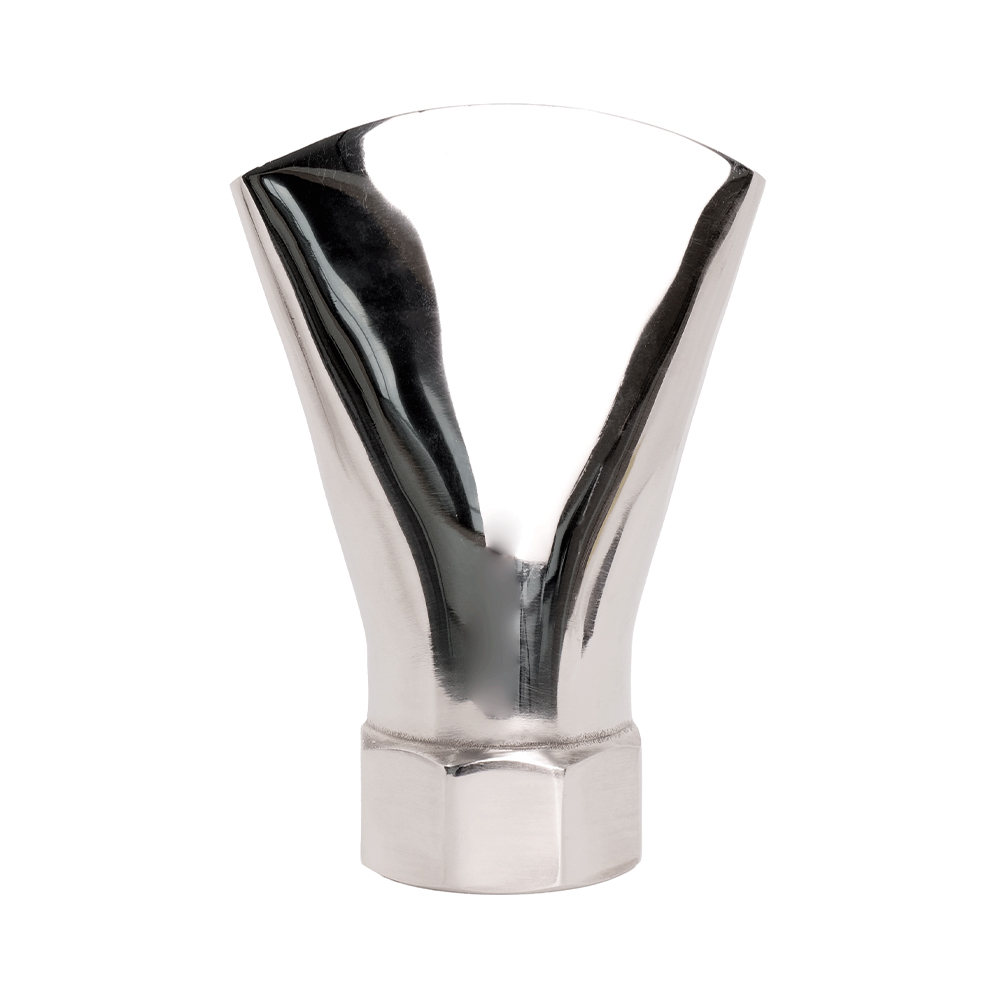

Huaxin fan jet fountain nozzle with a fan-shaped outlet

Fan Jet Nozzle

Produces a broad, fan-shaped sheet of water for a fuller visual surface.

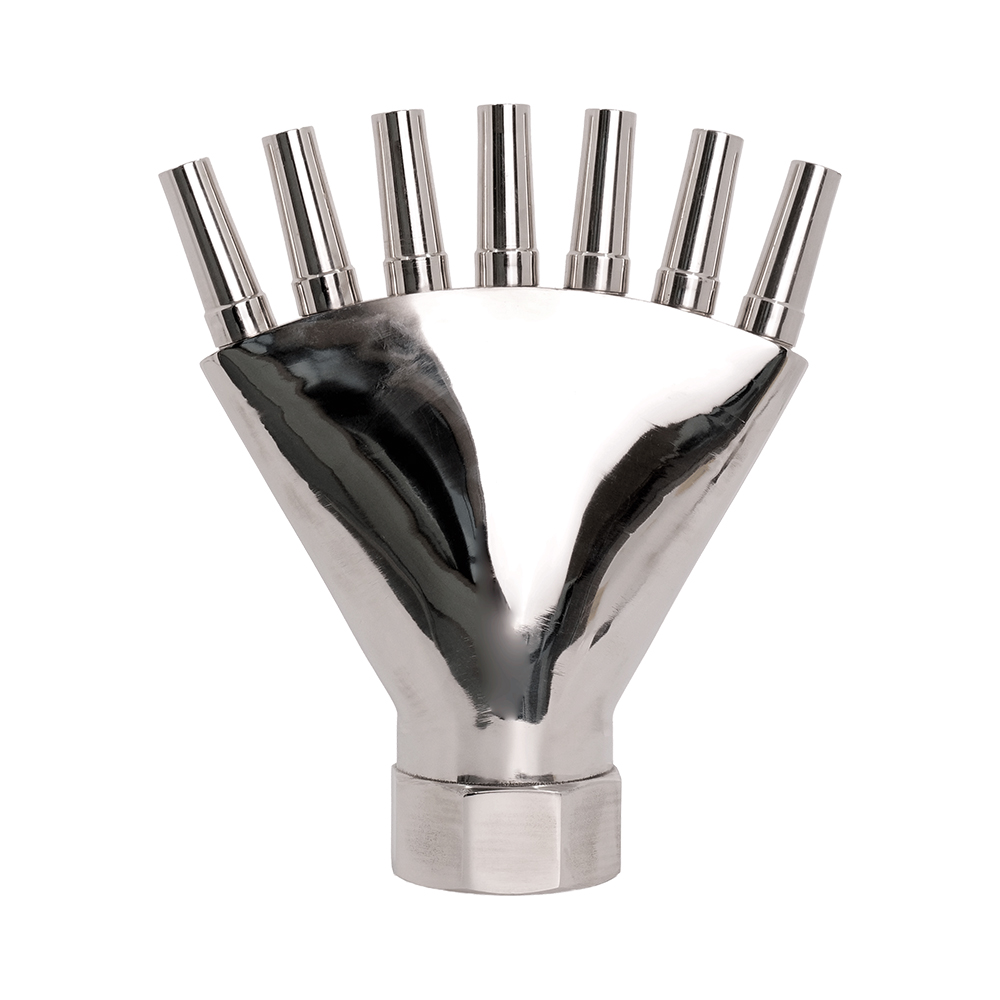

Huaxin finger jet fountain nozzle with multiple outlets for separate water streams

Finger Jet Nozzle

Produces several distinct streams in a fan-shaped arrangement for layered water effects.

Technical Specifications & Dimensions

Specification	Triple-nozzle version
Drive arrangement	Triple-nozzle dual-axis swivel drive (2D)
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	466 × 384 × 800 mm
Net weight	40 kg
Nozzle outlet connections	3 × DN50
Water inlet connection	DN50, female thread
Indicative jet height*	5–15 m
Specified rotation range	360°
Output torque, upper / lower axis	120 / 85 N·m
Gear reduction ratio	1:10
Total rated power	600 W
Motor operating voltage	AC 55–70 V / DC 60–90 V
Motor cables	2 × JHS, 4 × 2.5 mm²
Sensor cables	2 × JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions. Confirm the electrical configuration and control compatibility for the specified unit.

Related 2D Fountain Units

Huaxin dual-axis fountain swivel drive with an internal slip ring

2D Unit — Internal Slip Ring

An upright dual-axis unit with an internal slip ring and a smaller plan footprint than the low-profile version.

2D Unit — External Slip Ring

An upright dual-axis unit with an external slip ring and DN50 female-thread inlet and outlet connections.

2D Unit — Low-Profile

A lower-height design for fountain layouts with restricted vertical installation space.

Huaxin integrated 2D fountain unit with DMX512 control and RGB lighting

2D Unit — Integrated

Dual-axis movement with integrated DMX512 control and RGB lighting for coordinated water-and-light sequences.

Huaxin dual-nozzle 2D fountain unit with two DN50 nozzle outlets

2D Unit — Dual-Nozzle

Two nozzle outlets on a dual-axis drive for selected nozzle combinations and multi-directional water effects.

Specify This Unit for Your Project

Send your fountain layout, required quantity, preferred nozzle combination, target jet height, and control requirements. Huaxin can help review the three-nozzle arrangement, hydraulic conditions, and movement clearance before preparing a quotation.
