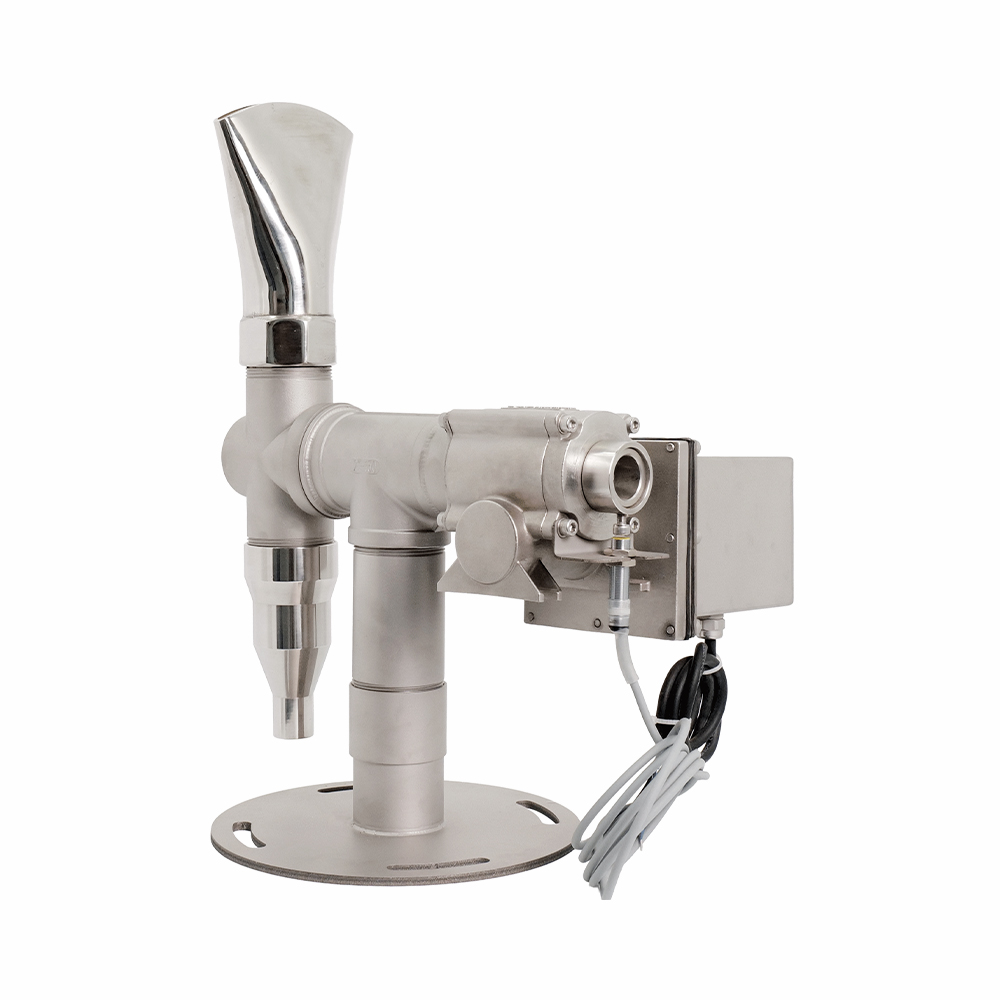

Huaxin dual-nozzle 1D fountain unit fitted with straight jet and fan jet nozzles

MOTION-CONTROLLED JET SYSTEMS

Dual-Nozzle Single-Axis Swivel Drive (1D)

Two water effects. One programmable axis.

The Huaxin Dual-Nozzle 1D Fountain Unit switches between two selected nozzles on one programmable axis. With two DN50 outlets, it allows a musical fountain or water show to alternate between different water patterns from the same equipment position.

Programmable effect switching · Single-axis drive · DN50 connections · SUS304

Request a Quote

Why Choose the Dual-Nozzle Version?

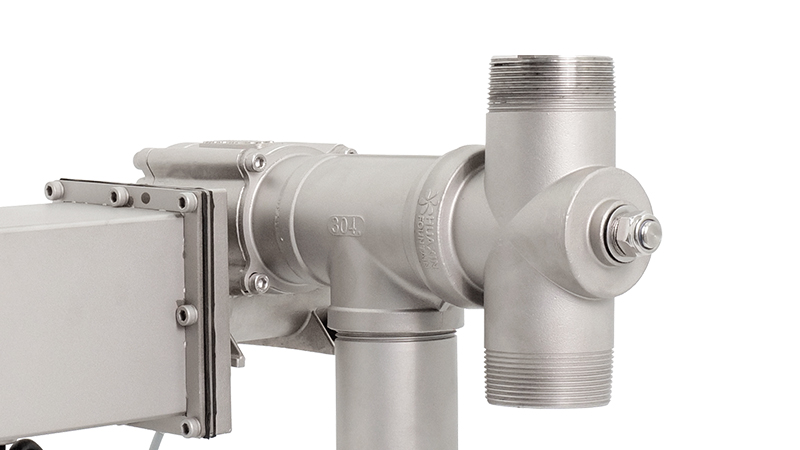

Two DN50 nozzle outlets on a Huaxin dual-nozzle 1D fountain unit

Switch Water Effects Within the Show

Keep both selected nozzles installed and use the programmed drive to select one nozzle position at a time. A compatible straight jet and fan jet pair, for example, allows the show to change between a defined water stream and a broad water sheet.

Swinging water-jet effect produced by Huaxin single-axis fountain equipment

Fan-shaped water sheet produced by a Huaxin fan jet fountain nozzle

Huaxin 1D swing fountain equipment producing a programmed water effect

Single-Axis Movement for Planned Choreography

Both nozzle positions move together on one controlled axis. This gives the show designer a single movement plane to coordinate with adjacent fountain units and lighting cues.

huaxin-fountain-equipment-production-workshop-01

Nozzle and Mounting Support from the Manufacturer

Huaxin manufactures core fountain equipment in-house. Our team can coordinate the selected nozzle pair, connections, mounting arrangement, and control requirements against your project drawings, helping the equipment fit the intended water effects and installation.

Nozzle Selection & Water Effects

“Dual-nozzle” refers to the two selectable nozzle positions, while “1D” refers to the single controlled movement axis. The drive moves both positions together and selects one at a time to switch between water effects within the programmed sequence.

Final effects depend on nozzle selection, hydraulic conditions, equipment arrangement, and programming.

Nozzle Combinations

Straight Jet + Fan Jet

The illustrated configuration pairs a straight jet nozzle with a fan jet nozzle. The straight jet creates a defined stream, while the fan jet produces a broad, fan-shaped sheet of water.

Select a compatible nozzle pair according to the two required water patterns, available flow and head, and installation clearance. Confirm the connection arrangement for the specific nozzles selected.

Technical Specifications & Dimensions

Specification	Dual-nozzle 1D version
Drive arrangement	Dual-nozzle single-axis swivel drive (1D)
Nozzle selection	One of two nozzle positions at a time
Material	SUS304 stainless steel
Drive dimensions (L × W × H)	360 × 250 × 145 mm
Net weight	12.6 kg
Water outlet connections	2 × DN50, male thread
Water inlet connection	DN50, female thread
Indicative jet height	8–15 m
Output torque	85 N·m
Gear reduction ratio	1:10
Motor rated power	200 W
Motor operating voltage	AC 55–70 V / DC 60–90 V
Motor cable	JHS, 4 × 2.5 mm²
Sensor cable	JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions. Confirm the electrical configuration and control compatibility for the specified unit.

Related Fountain Units

Huaxin standard 1D swing fountain unit shown with a mounting bracket and no nozzle

1D Unit — Standard

Single-axis movement with a selected nozzle for programmed directional water effects.

Huaxin integrated 1D swing fountain unit with DMX512 control and RGB lighting

1D Unit — Integrated

Single-axis movement with integrated DMX512 control and RGB lighting.

Huaxin triple-nozzle 1D swing fountain unit for switching among three water effects

Triple-Nozzle 1D Unit

Selects among three nozzle positions for different water effects.

Specify This Unit for Your Project

Send your fountain layout, required quantity, the two intended water effects, target jet height, and control requirements. Huaxin can help confirm the nozzle pair, mounting arrangement, hydraulic conditions, and quotation.
