MOTION-CONTROLLED JET SYSTEMS

Single-Axis Swivel Drive (1D) — Standard

Programmable 1D swing fountain unit for musical fountains and water shows.

The Huaxin 1D Swing Fountain Unit moves a selected fountain nozzle back and forth on a single axis to create coordinated swinging water effects. Designed for musical fountains, dancing fountains, and choreographed water shows, the Standard version is available in DN40 and DN50 and includes position feedback to support synchronized movement.

Single-axis movement · DN40 / DN50 · SUS304 stainless steel · 200 W motor

Request a Quote

The mounting bracket shown is illustrative and is not included in the standard quotation. Nozzles and project-specific brackets are selected and quoted separately.

Movement & Water Effects

Programmed single-axis movement changes the water jet direction. The selected nozzle determines the water pattern, while the fountain control system coordinates movement with the show sequence.

See the unit in operation and the water effects it produces.

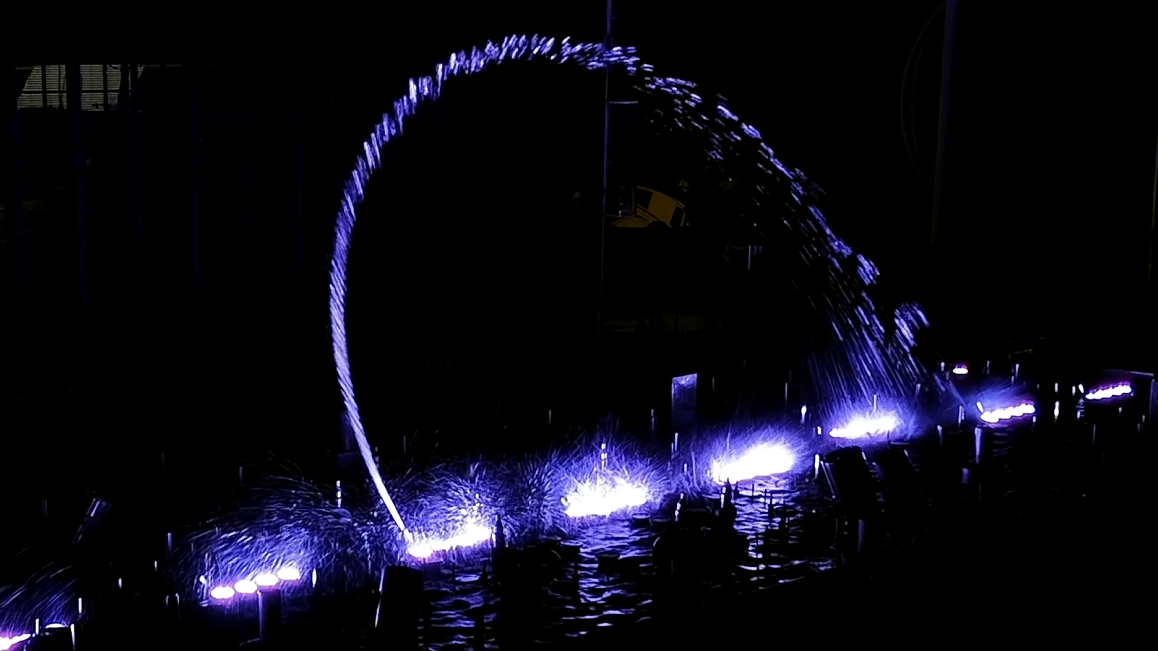

Swinging water-jet effect produced by Huaxin single-axis fountain equipment

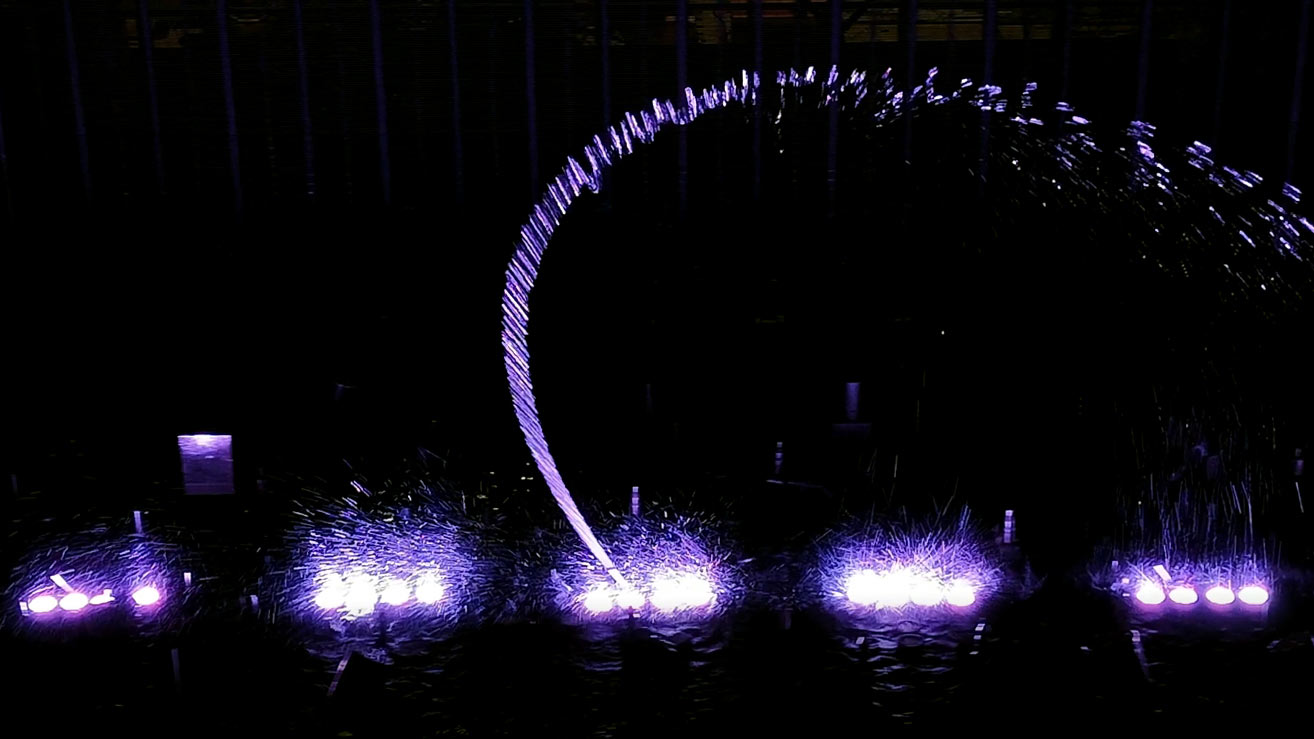

Huaxin 1D swing fountain equipment producing a programmed water effect

1D Fountain Nozzle Configurations

Select the nozzle to match the intended water pattern. The images below show alternative configurations of the Standard unit.

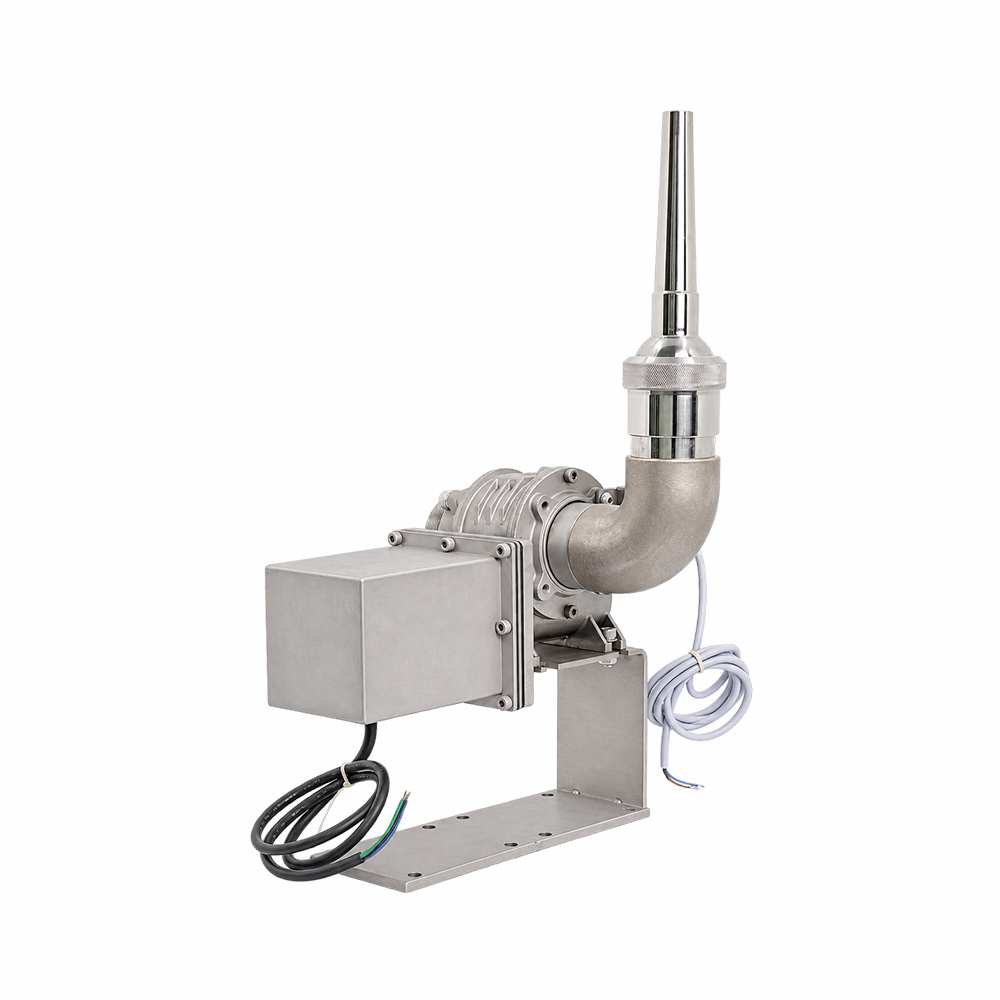

Straight Jet Nozzle

Produces a single, defined water stream for directional swinging effects.

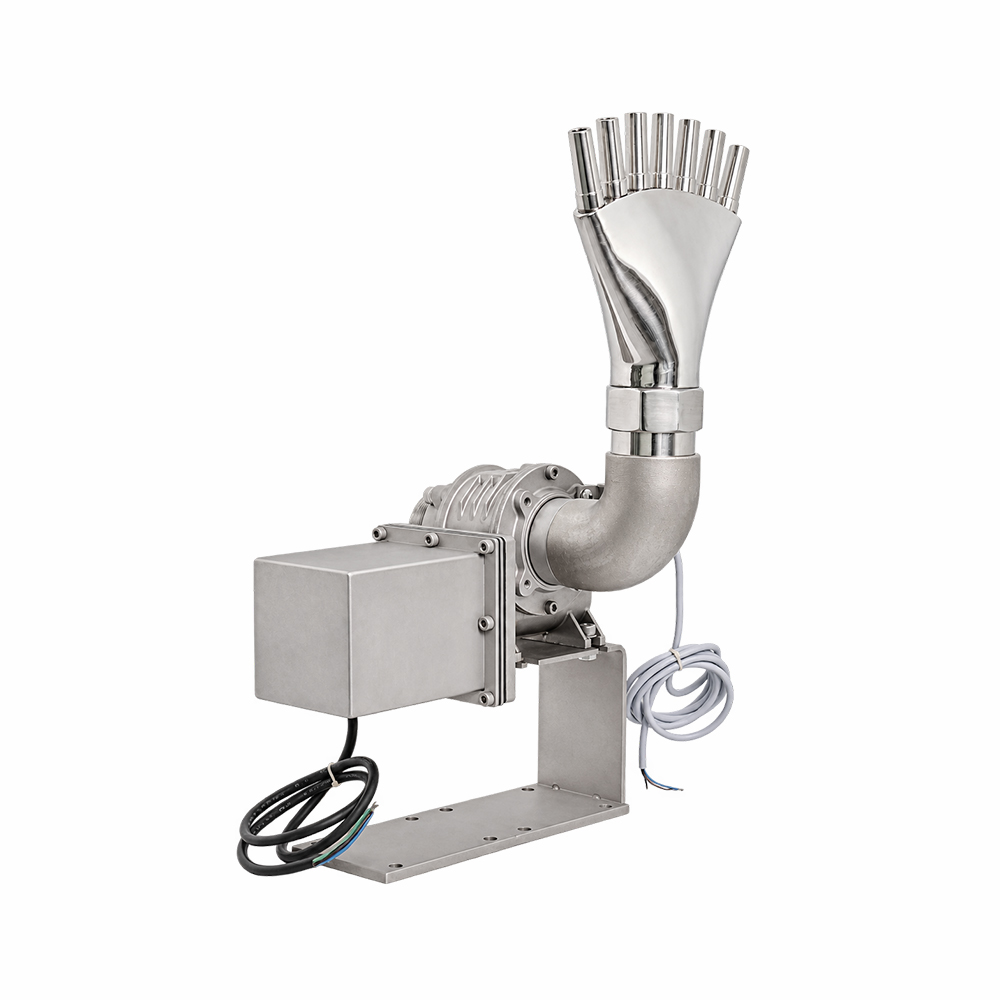

Finger Jet Nozzle

Produces multiple distinct streams arranged in a fan-shaped pattern.

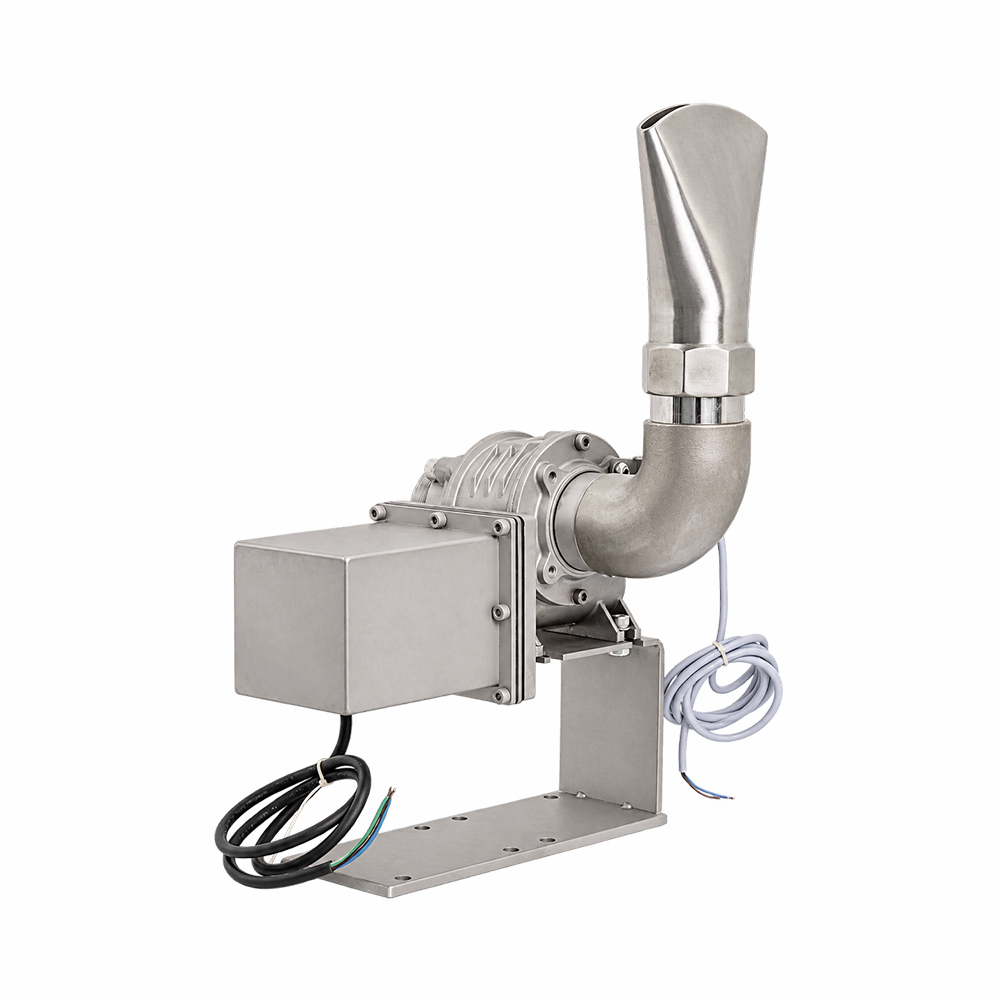

Fan Jet Nozzle

Produces a flat, fan-shaped sheet of water for broad swinging effects.

Technical Specifications & Dimensions

Specification	DN40 version	DN50 version
Motion	Single-axis (1D)	Single-axis (1D)
Material	SUS304 stainless steel	SUS304 stainless steel
Water outlet connection	DN40, female thread	DN50, female thread
Water inlet connection	DN40, male thread	DN50, male thread
Overall dimensions (L × W × H)	269 × 261 × 250 mm	288 × 252 × 289 mm
Net weight	10 kg	12 kg
Indicative jet height	6–10 m	8–15 m
Motor power	200 W	200 W
Motor operating voltage	AC 55–70 V / DC 60–90 V	AC 55–70 V / DC 60–90 V
Output torque	85 N·m	85 N·m
Gear reduction ratio	1:10	1:10
Motor cable	JHS, 4 × 2.5 mm²	JHS, 4 × 2.5 mm²
Sensor cable	JHSP, 3 × 1.5 mm²	JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC	24 V DC

Jet heights are indicative. Actual performance depends on nozzle selection, pump flow and head, and operating conditions. Confirm the electrical configuration and control compatibility for the specified unit before ordering.

Supply & Project Configuration

Item	Supply arrangement
Standard swivel drive unit	Included in the standard quotation
Fountain nozzle	Selected and quoted separately
Mounting bracket	Customized to suit the project and quoted separately

Confirm the connection size, nozzle pattern, installation dimensions, and control requirements when requesting a quotation. Brackets and nozzles shown in the product photographs illustrate possible configurations.

Related 1D Units

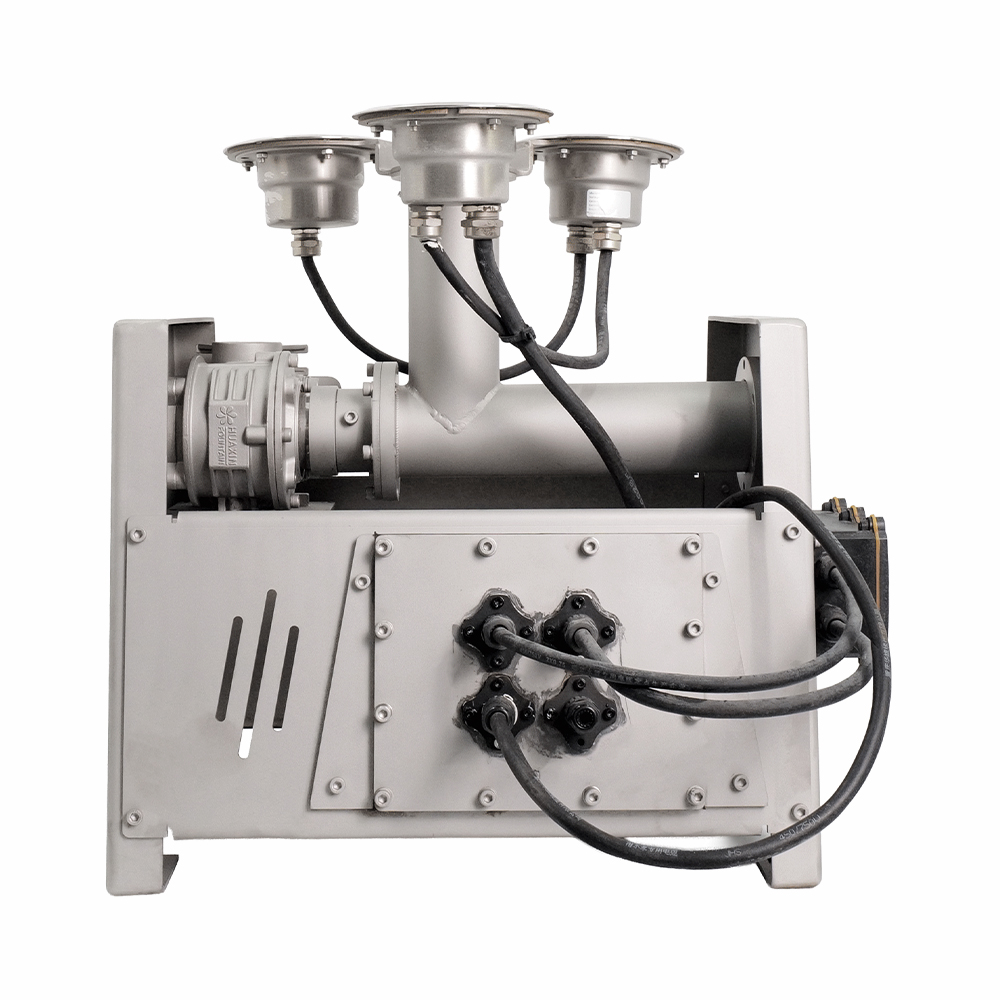

Huaxin integrated 1D swing fountain unit with DMX512 control and RGB lighting

Integrated 1D Unit

Integrated DMX512 control and RGB lighting.

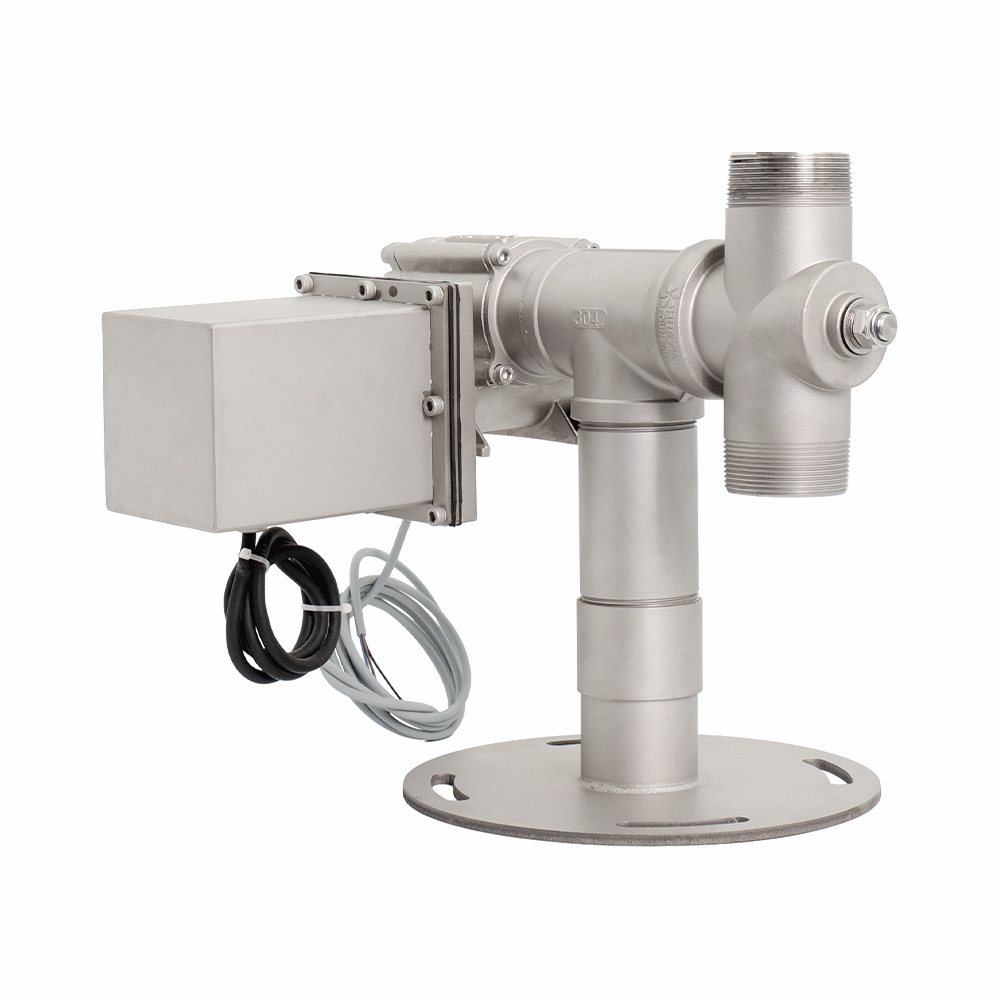

Huaxin dual-nozzle 1D swing fountain unit for switching between two water effects

Dual-Nozzle 1D Unit

Selects between two nozzle positions for different water effects.

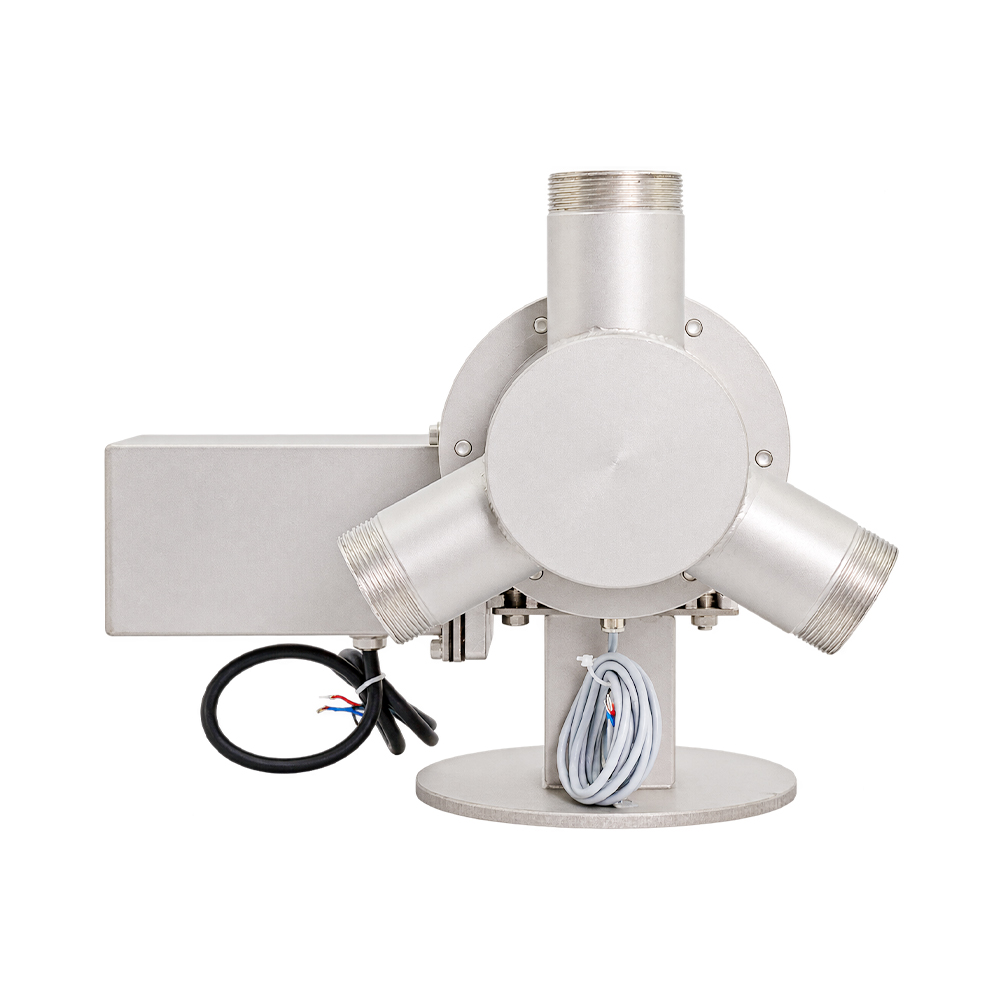

Huaxin triple-nozzle 1D swing fountain unit for switching among three water effects

Triple-Nozzle 1D Unit

Selects among three nozzle positions for different water effects.

Specify This Unit for Your Project

Send your fountain layout or installation drawing, target jet height, and preferred nozzle type. Huaxin will help confirm the unit size, mounting arrangement, and quotation.
