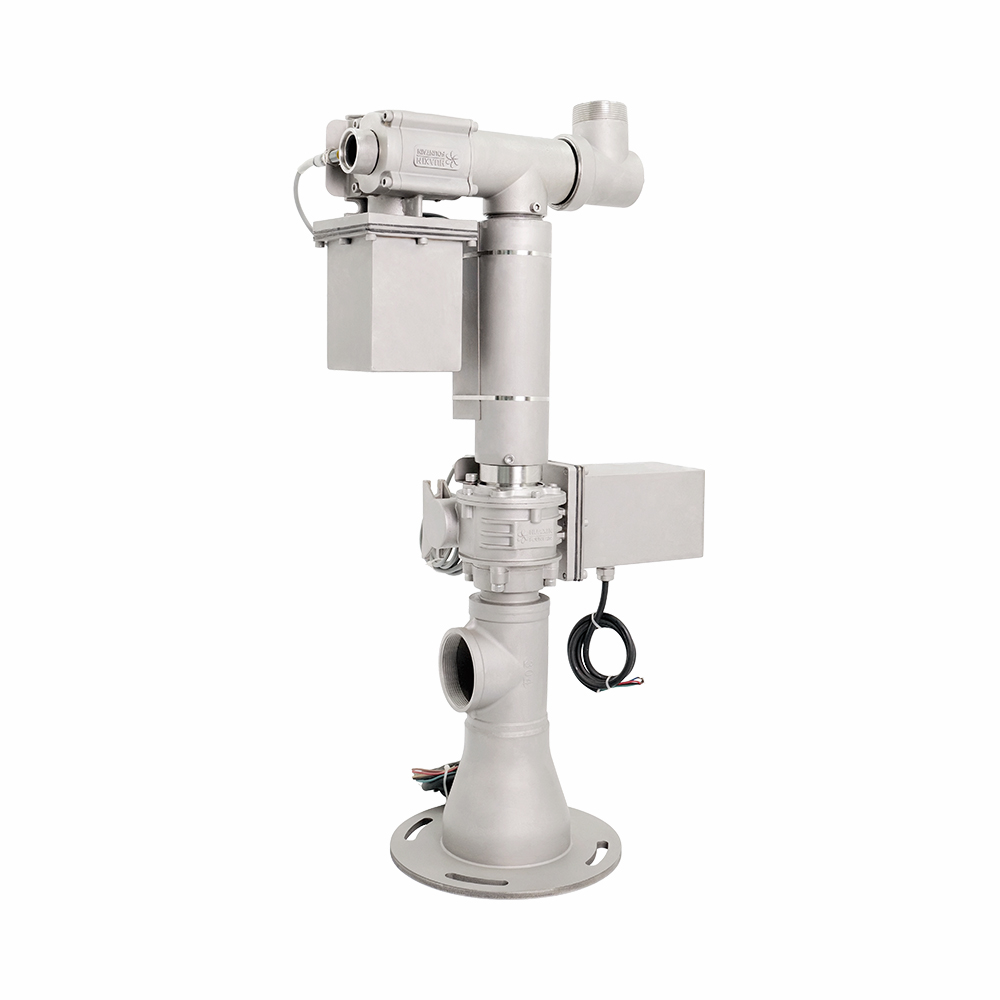

Huaxin internal-slip-ring 2D fountain unit shown without a nozzle

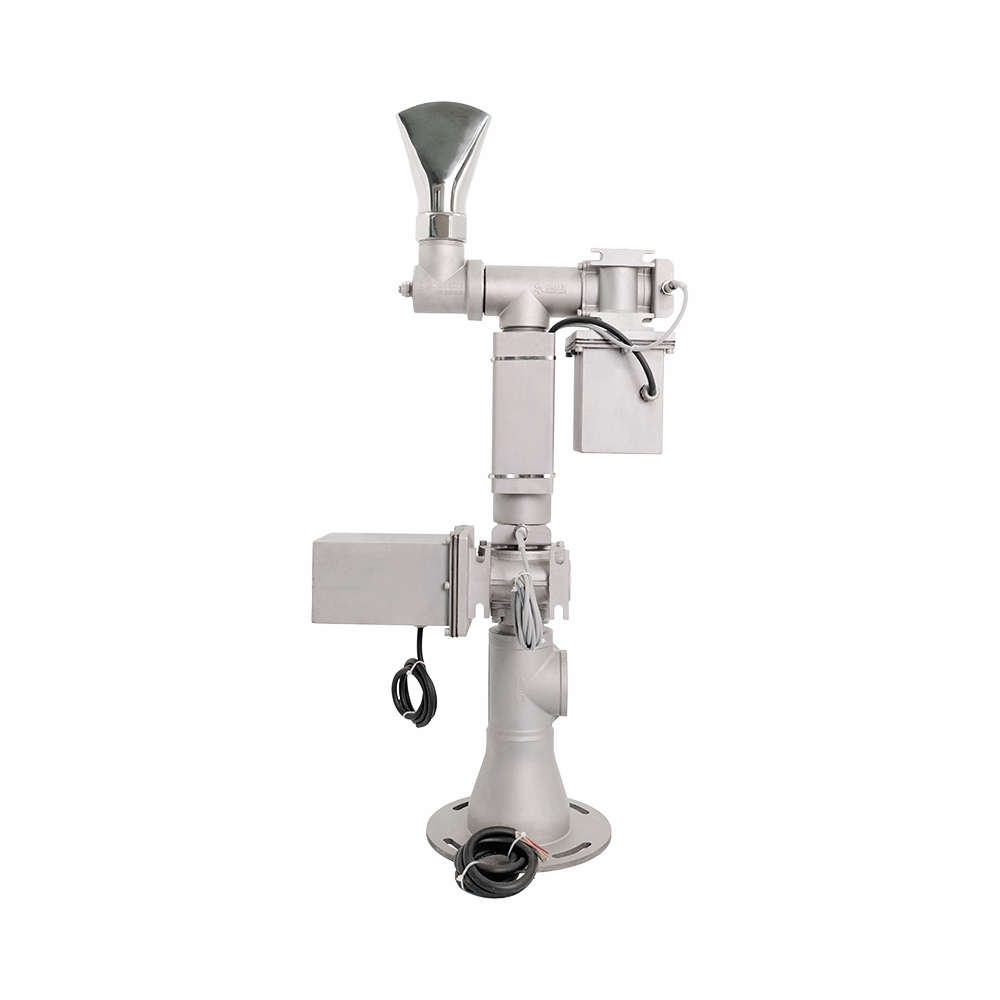

Huaxin internal-slip-ring 2D fountain unit fitted with a fan jet nozzle

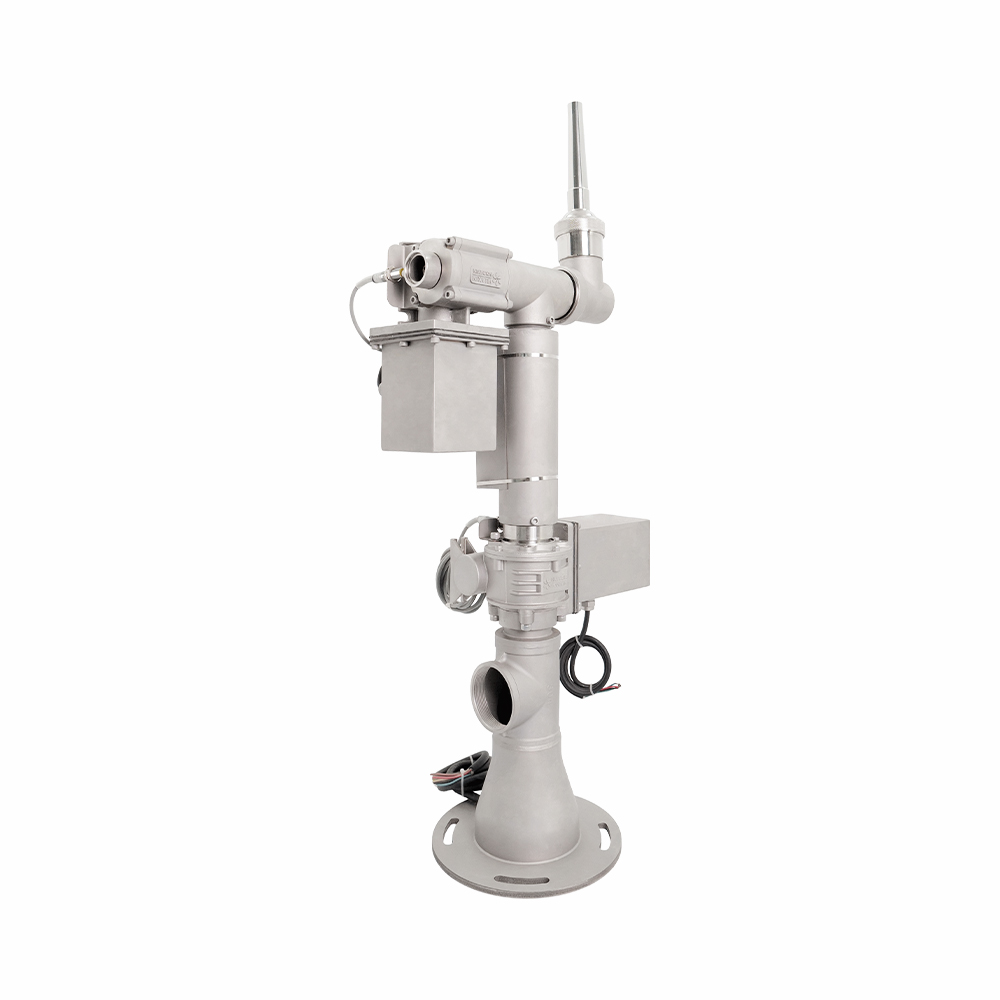

Huaxin internal-slip-ring 2D fountain unit fitted with a straight jet nozzle

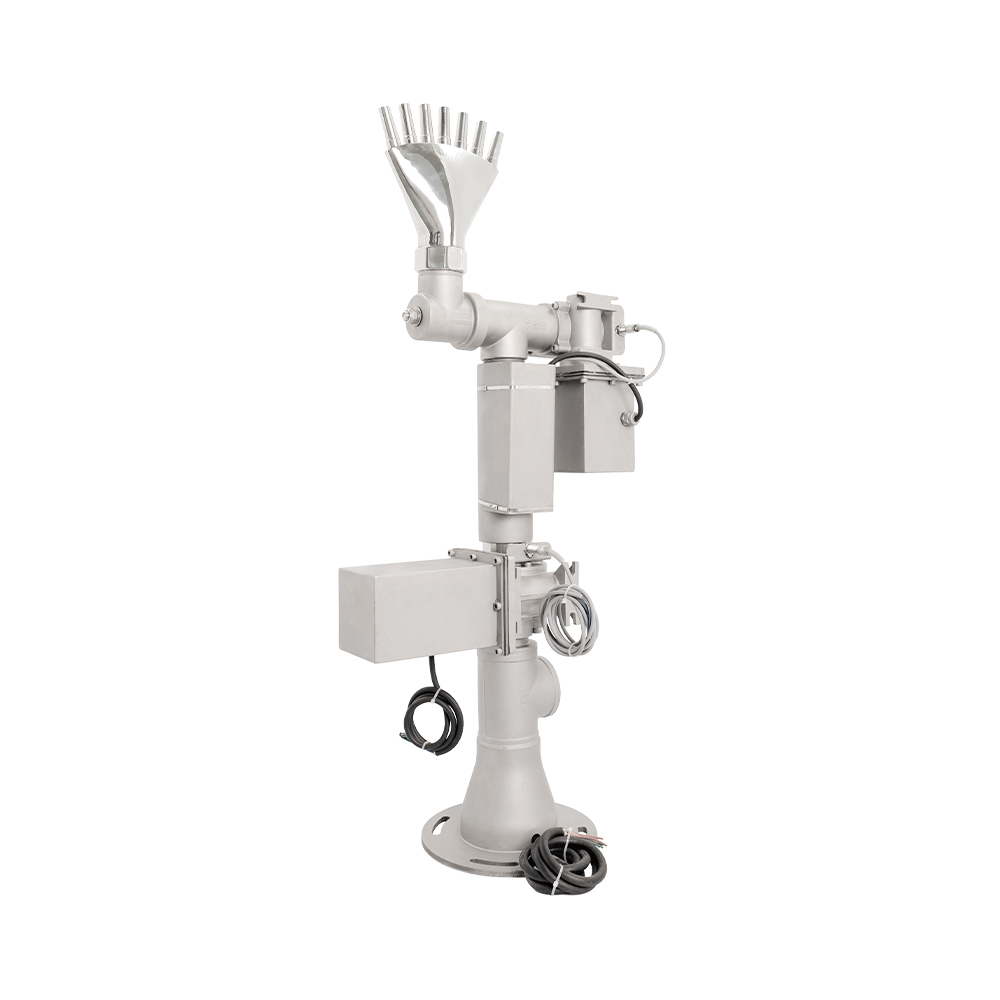

Huaxin internal-slip-ring 2D fountain unit fitted with a multi-stream finger jet nozzle

MOTION-CONTROLLED JET SYSTEMS

Dual-Axis Swivel Drive (2D) — Internal Slip Ring

Compact 2D fountain equipment for multi-directional water effects.

The Huaxin 2D Swing Fountain Unit combines programmable dual-axis movement with an internal slip-ring assembly. It guides a selected fountain nozzle in two controlled directions, creating changing water-jet paths for musical fountains, dancing fountains and choreographed water shows. Its compact arrangement helps accommodate the drive alongside pipework, lighting and other fountain equipment.

Dual-axis movement · Internal slip ring · DN50 outlet / DN65 inlet · SUS304

Request a Quote

Why Choose the Internal Slip-Ring Version?

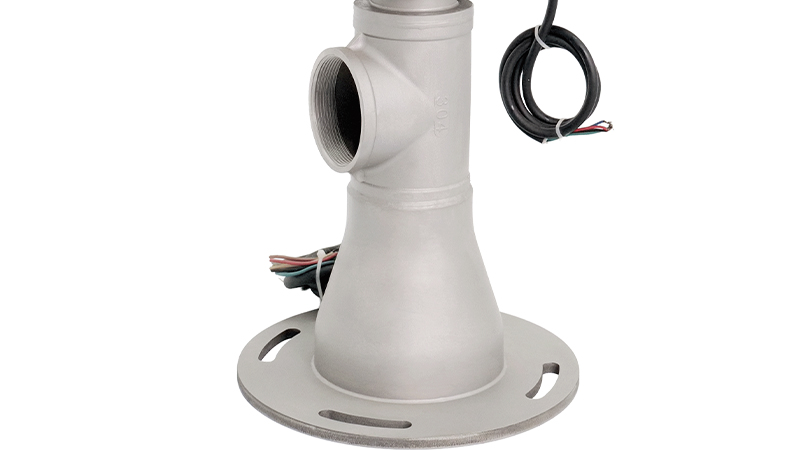

Close-up showing the internal slip-ring location on a Huaxin dual-axis fountain drive

More Compact Equipment Layout

The slip-ring assembly is housed within the unit, giving this model a more compact body than Huaxin’s external-slip-ring version. With listed dimensions of 340 × 242 × 779 mm, it is an option where equipment space needs careful coordination.

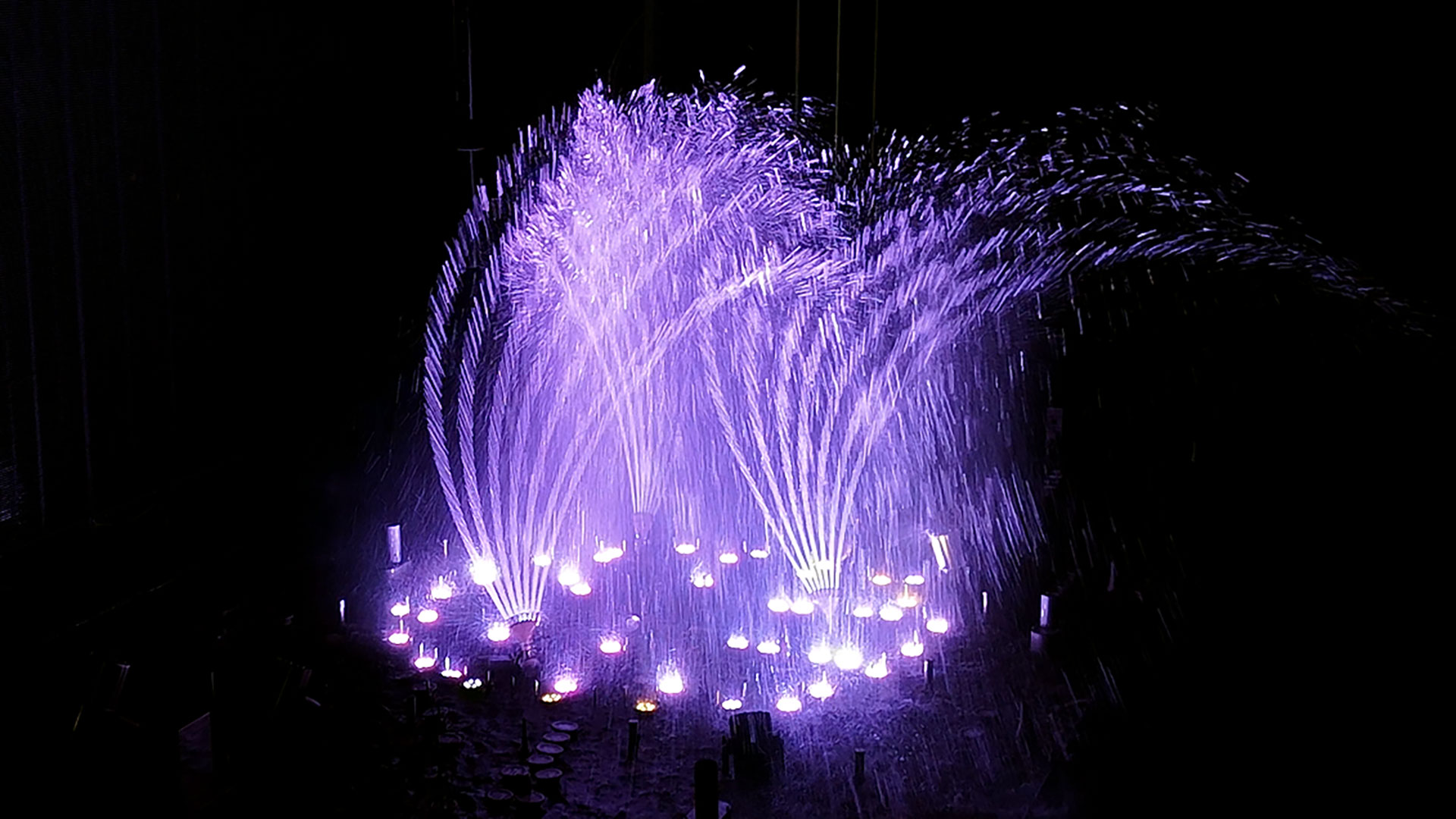

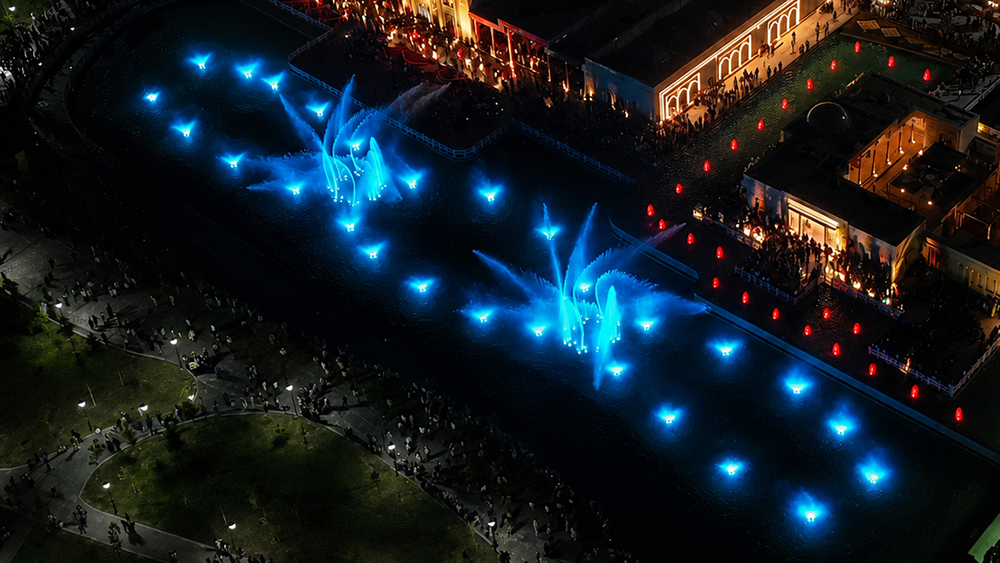

Water-jet effects produced by Huaxin dual-axis fountain units

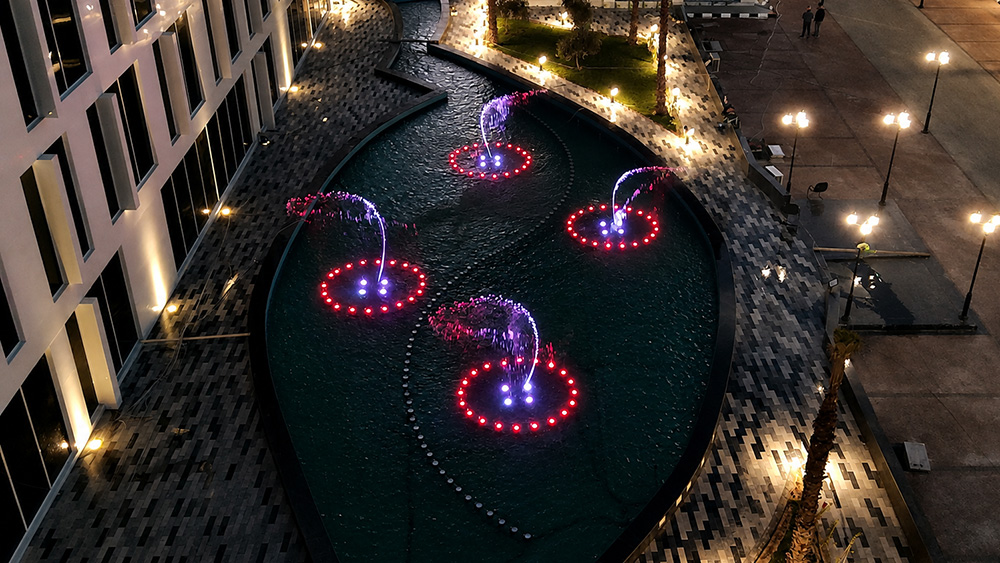

Huaxin 2D fountain equipment creating multi-directional water effects

More Choreography from Two Controlled Axes

Two driven axes allow the nozzle direction and inclination to change within a programmed sequence. This expands the movement beyond a single swing plane, giving designers more options for directional water effects.

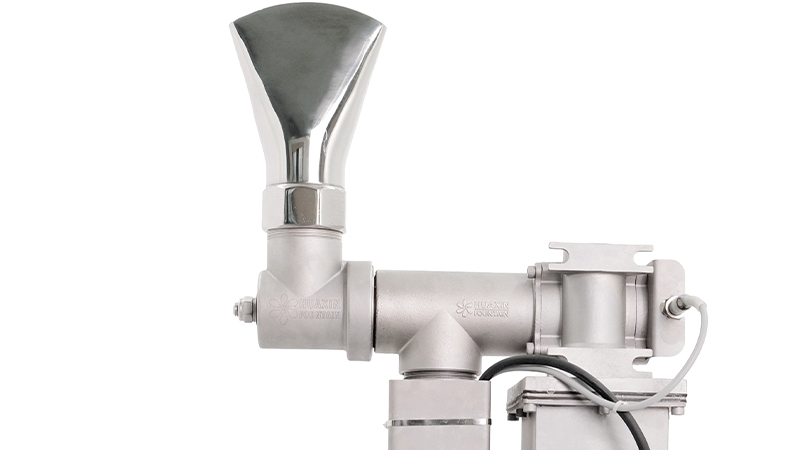

Close-up of a fan jet nozzle for the Huaxin 2D fountain unit

Close-up of a straight jet nozzle for the Huaxin 2D fountain unit

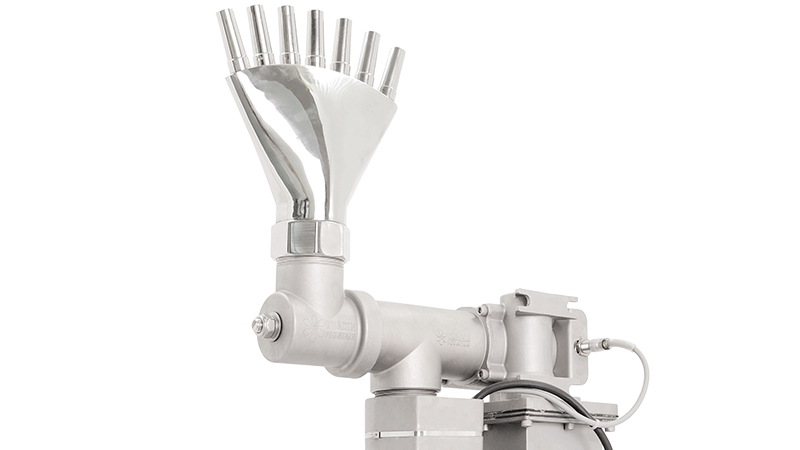

Close-up of a multi-stream finger jet nozzle for the Huaxin 2D fountain unit

Different Water Patterns from Selected Nozzles

Choose a straight jet or fan jet configuration to match the intended effect. The drive controls the movement, while the selected nozzle shapes the water, allowing equipment selection to follow the show design.

huaxin-fountain-equipment-production-workshop-01

Configuration Support from the Manufacturer

Huaxin manufactures core fountain equipment in-house. Work directly with our team to coordinate nozzle selection, connections, mounting requirements, and control compatibility for the specified unit.

Movement & Water Effects

“2D” refers to two controlled movement axes. The internal slip ring supports power and signal transmission during operation, while the fountain control system coordinates the drive with the show sequence.

Use the operation video to review the unit’s movement. The effect photograph shows an example of directional water jets; the final pattern depends on nozzle selection, equipment arrangement, and programming.

Nozzle Configurations

Select the nozzle according to the intended water pattern and available hydraulic conditions.

Straight Jet Nozzle

Produces a defined water stream for directional sweeps and coordinated jet arrangements.

Finger Jet Nozzle

Produces multiple distinct streams arranged in a fan-shaped pattern.

Fan Jet Nozzle

Produces a broad, fan-shaped sheet of water that changes direction with the dual-axis drive.

Technical Specifications & Dimensions

Specification	Internal-slip-ring version
Drive arrangement	Dual-axis swivel drive (2D)
Slip-ring arrangement	Internal
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	340 × 242 × 779 mm
Net weight	34.5 kg
Water outlet connection	DN50, male thread
Water inlet connection	DN65, female thread
Indicative jet height	8–15 m
Output torque	85 / 120 N·m
Gear reduction ratio	1:10
Upper / lower axis motor power	200 W / 250 W
Motor operating voltage	AC 55–70 V / DC 60–90 V
Motor cables	2 × JHS, 4 × 2.5 mm²
Sensor cables	2 × JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions. Confirm the electrical configuration and control compatibility for the specified unit.

Related 2D Fountain Units

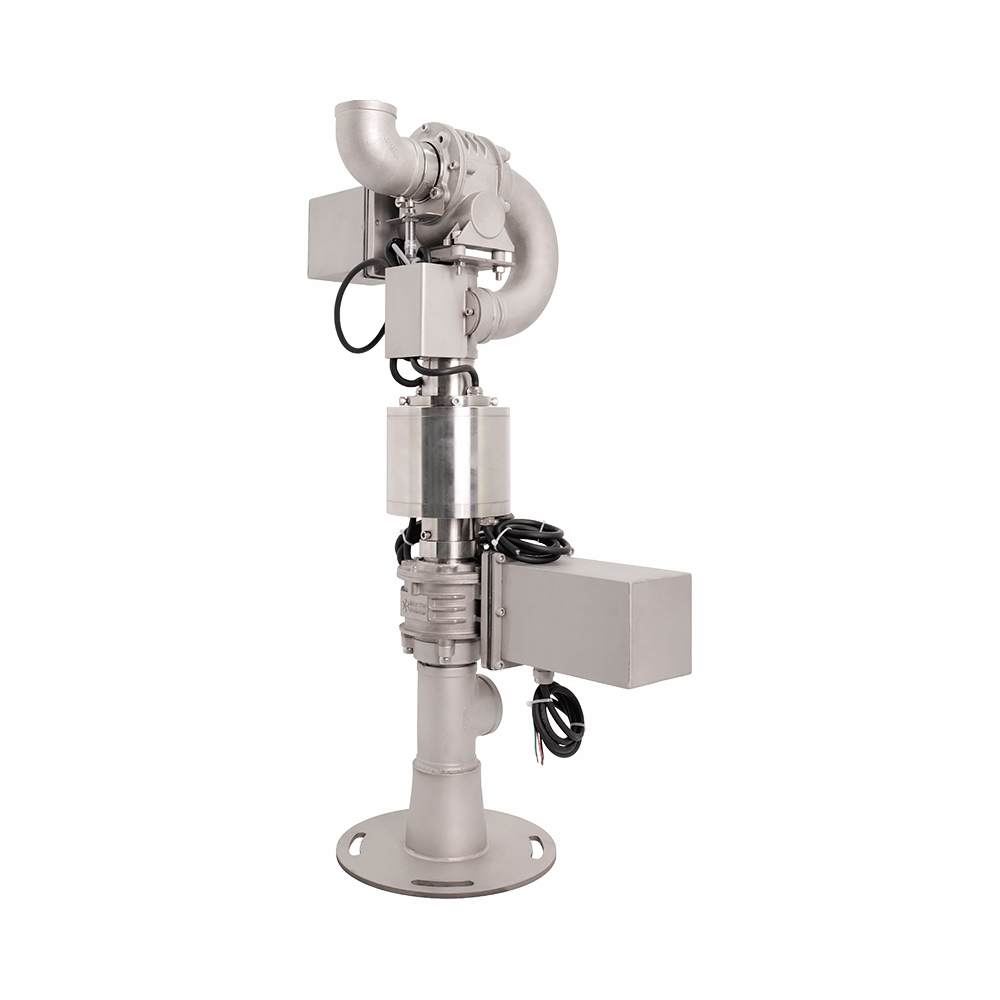

2D Unit — External Slip Ring

An alternative slip-ring arrangement for the project’s equipment layout.

2D Unit — Low-Profile

An alternative to assess where installation height is a key constraint.

Huaxin integrated 2D fountain unit with DMX512 control and RGB lighting

2D Unit — Integrated

Integrated DMX512 control and RGB lighting.

Huaxin dual-nozzle 2D fountain unit with two DN50 nozzle outlets

2D Unit — Dual-Nozzle

Two nozzle outlets on a dual-axis drive for selected nozzle combinations and multi-directional water effects.

Huaxin triple-nozzle 2D fountain unit with three DN50 nozzle outlets

2D Unit — Triple-Nozzle

Three nozzle outlets expand the nozzle configuration options on one dual-axis unit for choreographed fountain effects.

Specify This Unit for Your Project

Send your fountain layout or installation drawing, required quantity, preferred nozzle type, target jet height, and control requirements. Huaxin will help confirm the unit configuration, installation arrangement, and quotation.
