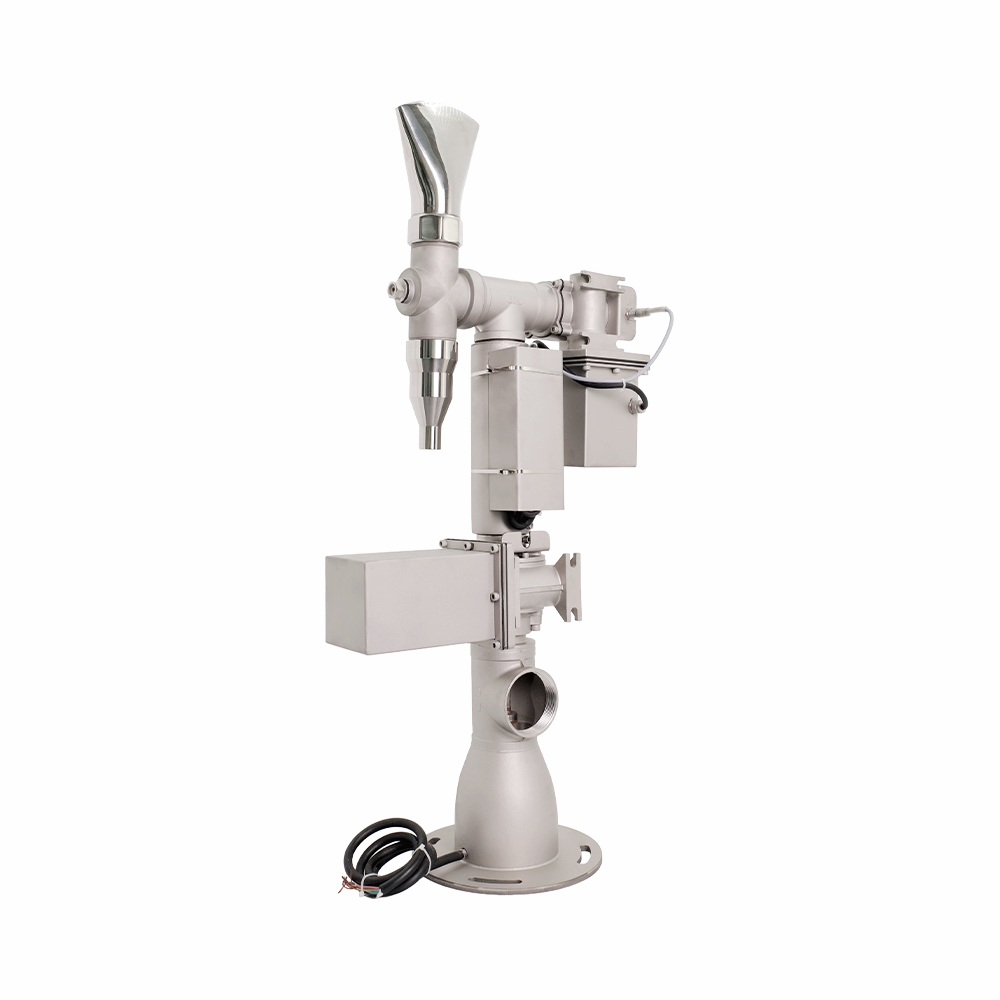

Huaxin dual-nozzle 2D fountain unit fitted with straight jet and fan jet nozzles

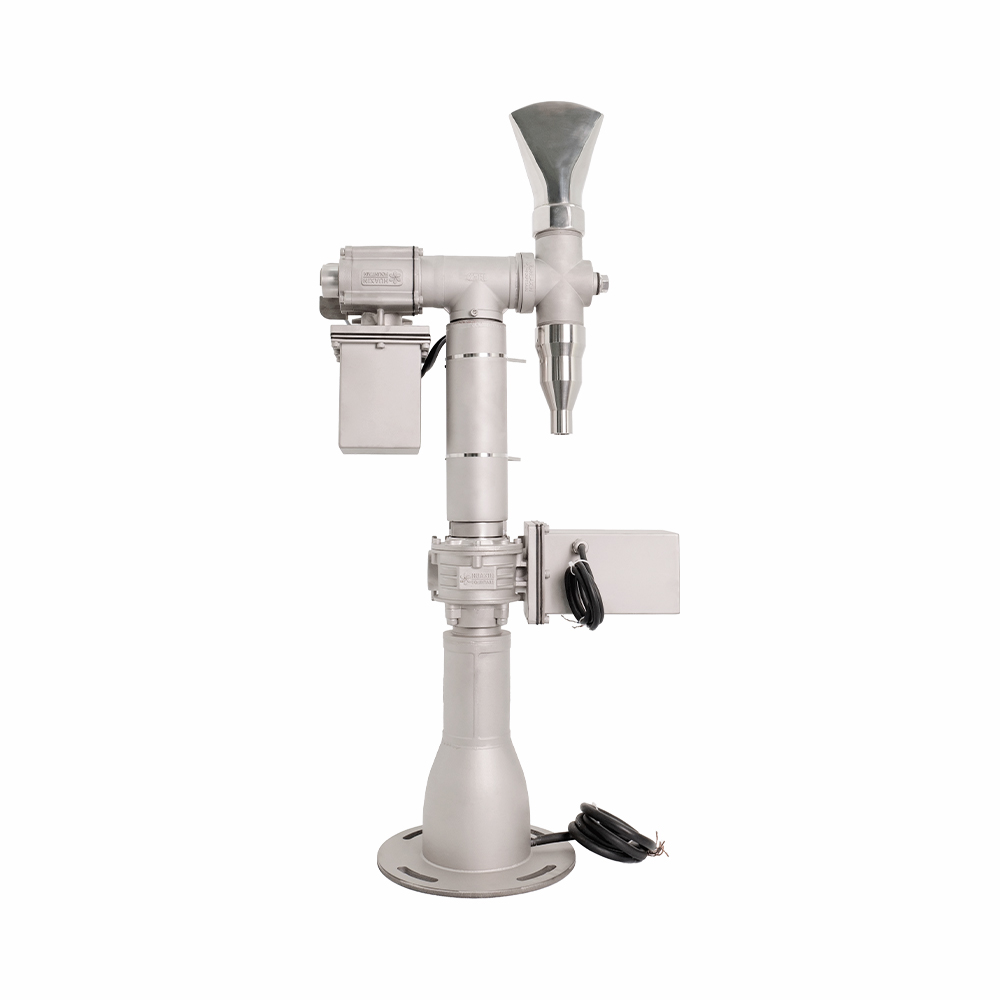

Alternative view of a Huaxin dual-nozzle 2D fountain unit with straight jet and fan jet nozzles

MOTION-CONTROLLED JET SYSTEMS

Dual-Nozzle Dual-Axis Swivel Drive (2D)

Two nozzle configurations at one equipment position.

The Huaxin Dual-Nozzle 2D Fountain Unit carries two selected nozzles on a shared dual-axis mechanism. Two DN50 outlets and a 360° upper-axis rotation range give fountain designers more options for combining nozzle shapes and programmed movement in musical fountains, dancing fountains, and water shows.

Two DN50 nozzle outlets · Dual-axis movement · 360° upper-axis rotation · SUS304

Request a Quote

Why Choose the Dual-Nozzle Version?

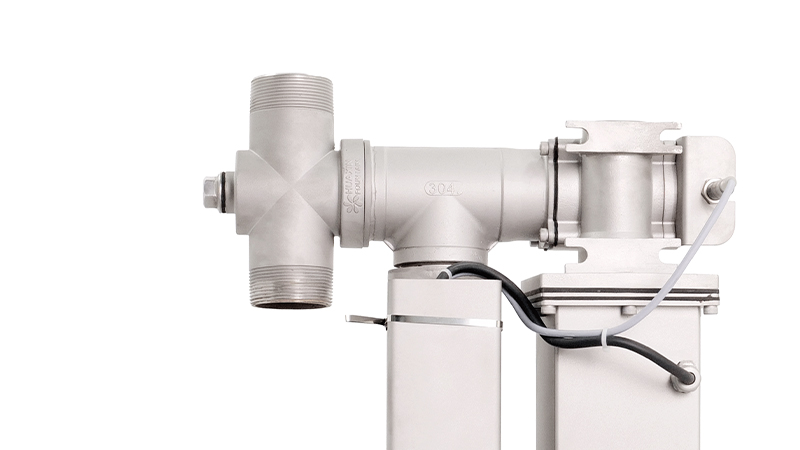

Close-up of the two nozzle outlets on a Huaxin dual-nozzle 2D fountain unit

Two Nozzle Positions on One Drive

Fit selected nozzles to the two DN50 outlets to bring different water-pattern options into one equipment position. A straight jet and a fan jet, for example, provide a defined stream and a broad water sheet within the same drive assembly.

Water-jet effects produced by Huaxin dual-axis fountain units

Huaxin 2D fountain equipment creating multi-directional water effects

Wider Directional Options for Choreography

The upper axis has a full 360° rotation range, while a separate lower drive provides the second movement axis. Coordinating these axes allows the nozzle assembly to change orientation through programmed sequences, expanding the options for moving water effects.

huaxin-fountain-equipment-production-workshop-01

Nozzle and Drive Selection from One Manufacturer

Huaxin manufactures core fountain equipment in-house. Our team can coordinate the nozzle pair, hydraulic requirements, movement clearance, and control configuration against your project drawings, so the supplied assembly fits the intended show and installation.

Movement & Water Effects

“Dual-nozzle” describes the two nozzle positions; “2D” describes the two controlled movement axes. Both nozzle positions are carried by the same mechanism, with the upper and lower drives coordinated through the fountain control system.

Watch the dual-nozzle unit in operation and explore water-effect examples from the 2D range. Final effects depend on the selected nozzles, hydraulic arrangement, equipment layout, and programming.

Nozzle Combinations

Straight Jet + Fan Jet

A straight jet produces a defined water stream, while a fan jet produces a broad, fan-shaped sheet. Installing the selected pair on the two nozzle positions gives the show design two distinct water forms to work with.

Confirm the nozzle pairing, required flow and head, and operating sequence for the project. Allow sufficient clearance for both fitted nozzles throughout the programmed movement.

Technical Specifications & Dimensions

Specification	Dual-nozzle version
Drive arrangement	Dual-nozzle dual-axis swivel drive (2D)
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	441 × 244 × 786 mm
Net weight	35 kg
Nozzle outlet connections	2 × DN50, male thread
Water inlet connection	DN65, female thread
Indicative jet height*	10–15 m
Upper-axis rotation range	360°
Output torque, upper / lower axis	85 / 120 N·m
Gear reduction ratio	1:10
Motor power, upper / lower axis	200 / 250 W
Motor operating voltage	AC 55–70 V
Motor cables	2 × JHS, 4 × 2.5 mm²
Sensor cables	2 × JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions.
