MOTION-CONTROLLED JET SYSTEMS

Dual-Axis Swivel Drive (2D) — External Slip Ring

Huaxin 2D fountain nozzle with an external slip ring, independent axis control, position feedback, and DN50 connections for musical fountains and water shows.

Home » Fountain Equipment » Motion-Controlled Jet Systems » 2D Fountain Unit — External Slip Ring

Huaxin dual-axis fountain swivel drive with an external slip ring

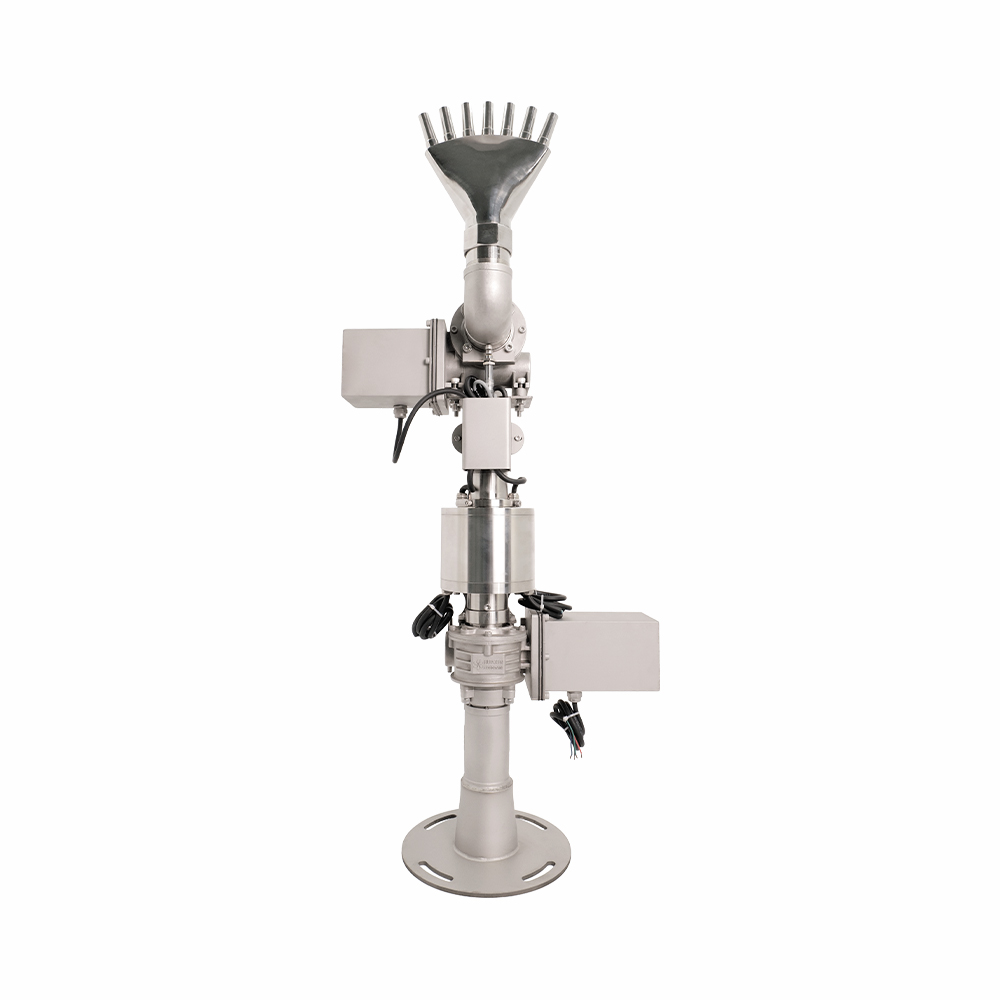

Huaxin external-slip-ring 2D fountain unit fitted with a multi-stream finger jet nozzle

Huaxin external-slip-ring 2D fountain unit fitted with a fan jet nozzle

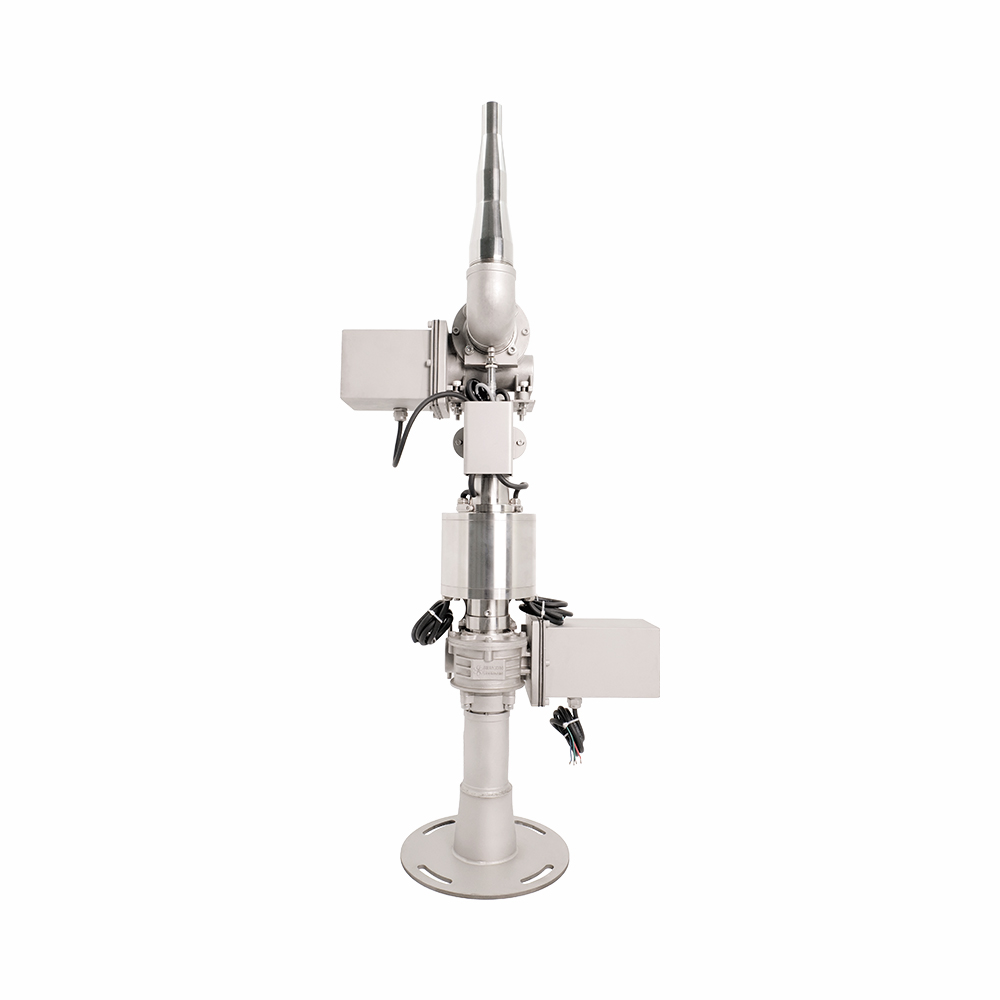

Huaxin external-slip-ring 2D fountain unit fitted with a straight jet nozzle

MOTION-CONTROLLED JET SYSTEMS

Dual-Axis Swivel Drive (2D) — External Slip Ring

Programmable dual-axis movement for musical fountains and water shows.

The Huaxin 2D Swing Fountain Unit uses an external slip ring and independently controlled upper and lower axes to guide a selected DN50 nozzle. Position-feedback sensors support repeatable programmed movement for musical fountains, dancing fountains, and choreographed water shows.

Independent dual-axis control · DN50 inlet / outlet · SUS304

Request a Quote

Why Choose the External Slip-Ring Version?

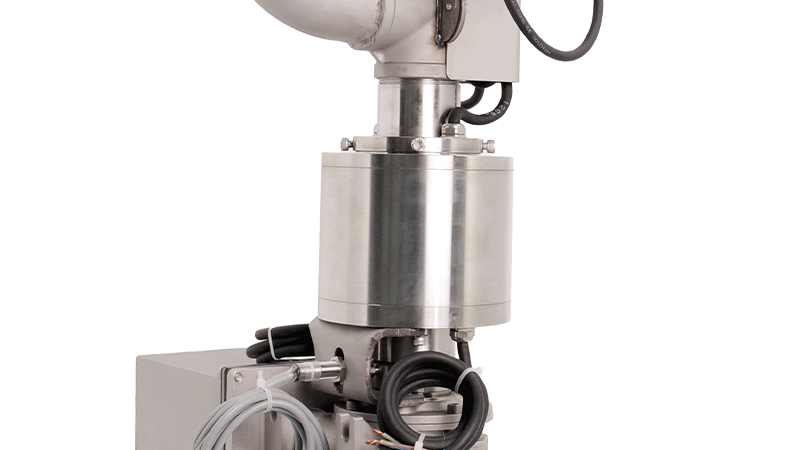

Close-up showing the external slip-ring location on a Huaxin dual-axis fountain drive

External Slip-Ring Configuration

The external slip-ring arrangement provides an alternative connection layout to the internal version. Review its position alongside the planned cable routes and service access to select the arrangement that suits your installation.

Water-jet effects produced by Huaxin dual-axis fountain units

Huaxin 2D fountain equipment creating multi-directional water effects

More Choreography from Two Controlled Axes

Two driven axes allow the nozzle direction and inclination to change within a programmed sequence. This expands the movement beyond a single swing plane, giving designers more options for directional water effects.

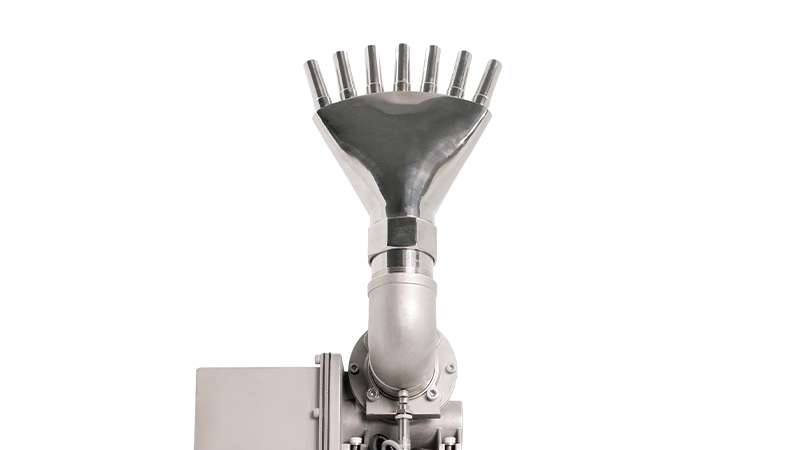

Close-up of a multi-stream finger jet nozzle for the Huaxin 2D fountain unit

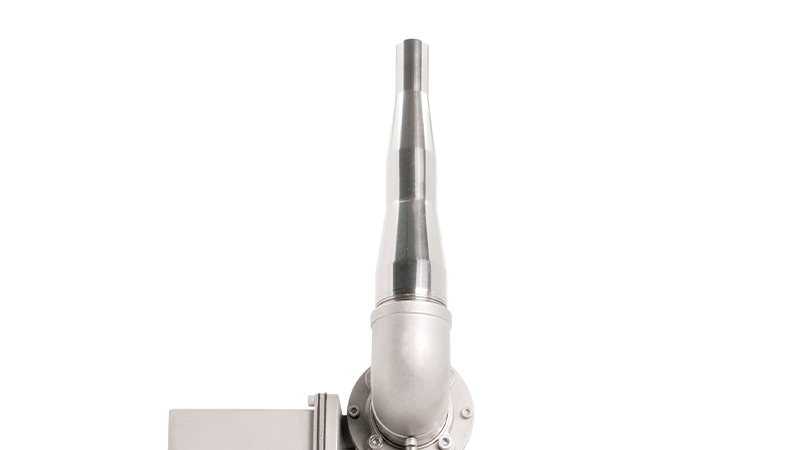

Close-up of a straight jet nozzle for the Huaxin 2D fountain unit

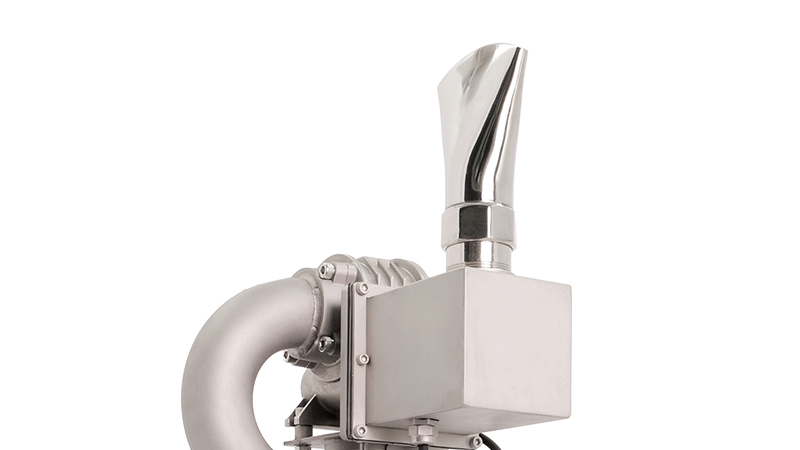

Close-up of a fan jet nozzle for the Huaxin 2D fountain unit

DN50 Connections and Nozzle Options

Both the inlet and outlet use DN50 female-thread connections. Select a compatible straight jet, fan jet, or finger jet nozzle to create different water patterns on the same dual-axis drive platform.

huaxin-fountain-equipment-production-workshop-01

Direct Manufacturer Support

Huaxin manufactures core fountain equipment in-house. Our team helps coordinate nozzle selection, pipe connections, mounting requirements, and control compatibility so the specified equipment matches the project layout.

Movement & Water Effects

“2D” describes two controlled movement axes. The drive changes the direction of a selected nozzle, while the nozzle determines the water pattern. The fountain control system coordinates the movements with the show sequence.

Watch the external slip-ring unit in operation, then explore examples of water effects created by 2D fountain equipment. Final effects depend on nozzle selection, equipment arrangement, hydraulic conditions, and programming.

Nozzle Configurations

Match the nozzle to the intended water pattern and confirm its connection, flow requirements, and movement clearance.

Straight Jet Nozzle

Produces a defined water stream for directional sweeps and coordinated jet arrangements.

Fan Jet Nozzle

Produces a broad, fan-shaped sheet of water that changes direction with the dual-axis drive.

Finger Jet Nozzle

Produces several distinct streams in a fan-shaped arrangement for layered, multi-stream water effects.

Technical Specifications & Dimensions

Specification	External-slip-ring version
Drive arrangement	Dual-axis swivel drive (2D)
Slip-ring arrangement	External
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	457 × 309 × 806 mm
Net weight	39 kg
Water outlet connection	DN50, female thread
Water inlet connection	DN50, female thread
Indicative jet height	8–15 m
Output torque	85 / 120 N·m
Gear reduction ratio	1:10
Upper / lower axis motor power	200 W / 250 W
Motor operating voltage	AC 55–70 V / DC 60–90 V
Motor cables	2 × JHS, 4 × 2.5 mm²
Sensor cables	2 × JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions. Confirm the electrical configuration and control compatibility for the specified unit.

Related 2D Fountain Units

Huaxin dual-axis fountain swivel drive with an internal slip ring

2D Unit — Internal Slip Ring

An upright dual-axis unit with an internal slip ring and a smaller plan footprint than the low-profile version.

2D Unit — Low-Profile

An alternative to assess where installation height is a key constraint.

Huaxin integrated 2D fountain unit with DMX512 control and RGB lighting

2D Unit — Integrated

Integrated DMX512 control and RGB lighting.

Huaxin dual-nozzle 2D fountain unit with two DN50 nozzle outlets

2D Unit — Dual-Nozzle

Two nozzle outlets on a dual-axis drive for selected nozzle combinations and multi-directional water effects.

Huaxin triple-nozzle 2D fountain unit with three DN50 nozzle outlets

2D Unit — Triple-Nozzle

Three nozzle outlets expand the nozzle configuration options on one dual-axis unit for choreographed fountain effects.

Specify This Unit for Your Project

Send your fountain layout or installation drawing, required quantity, preferred nozzle type, target jet height, and control requirements. Huaxin will help confirm the connections, movement clearance, equipment configuration, and quotation.
