MOTION-CONTROLLED JET SYSTEMS

Dual-Axis Swivel Drive (2D) — Integrated

Huaxin integrated 2D fountain unit combines DMX512 control, dual-axis movement, and 3 × 9 W RGB lighting for musical fountains and water shows.

Home » Fountain Equipment » Motion-Controlled Jet Systems » 2D Fountain Unit — Integrated

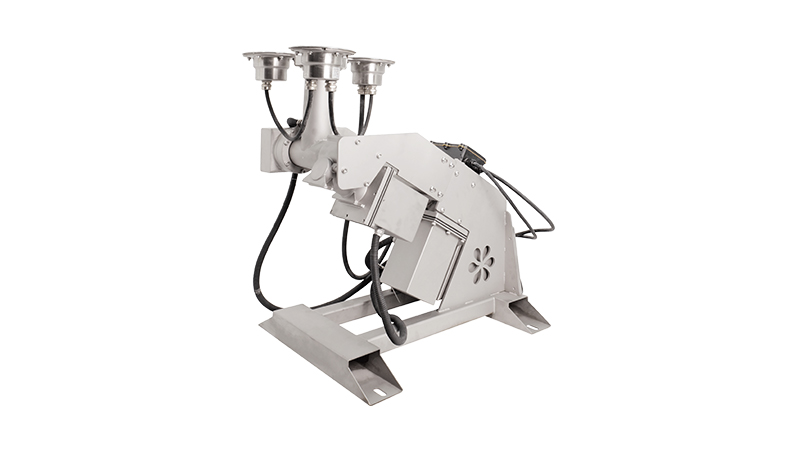

Huaxin integrated 2D fountain unit with DMX512 control and RGB lighting

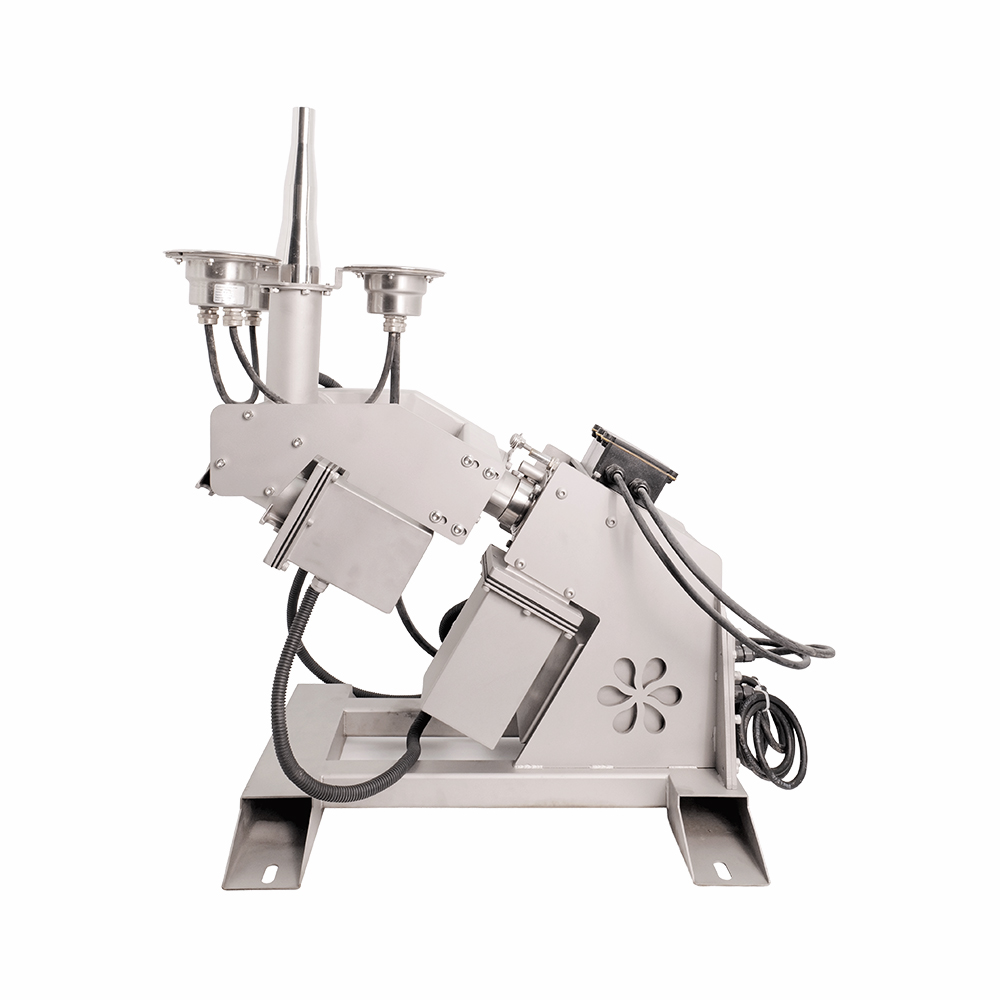

Huaxin integrated 2D fountain unit fitted with a straight jet nozzle and RGB lights

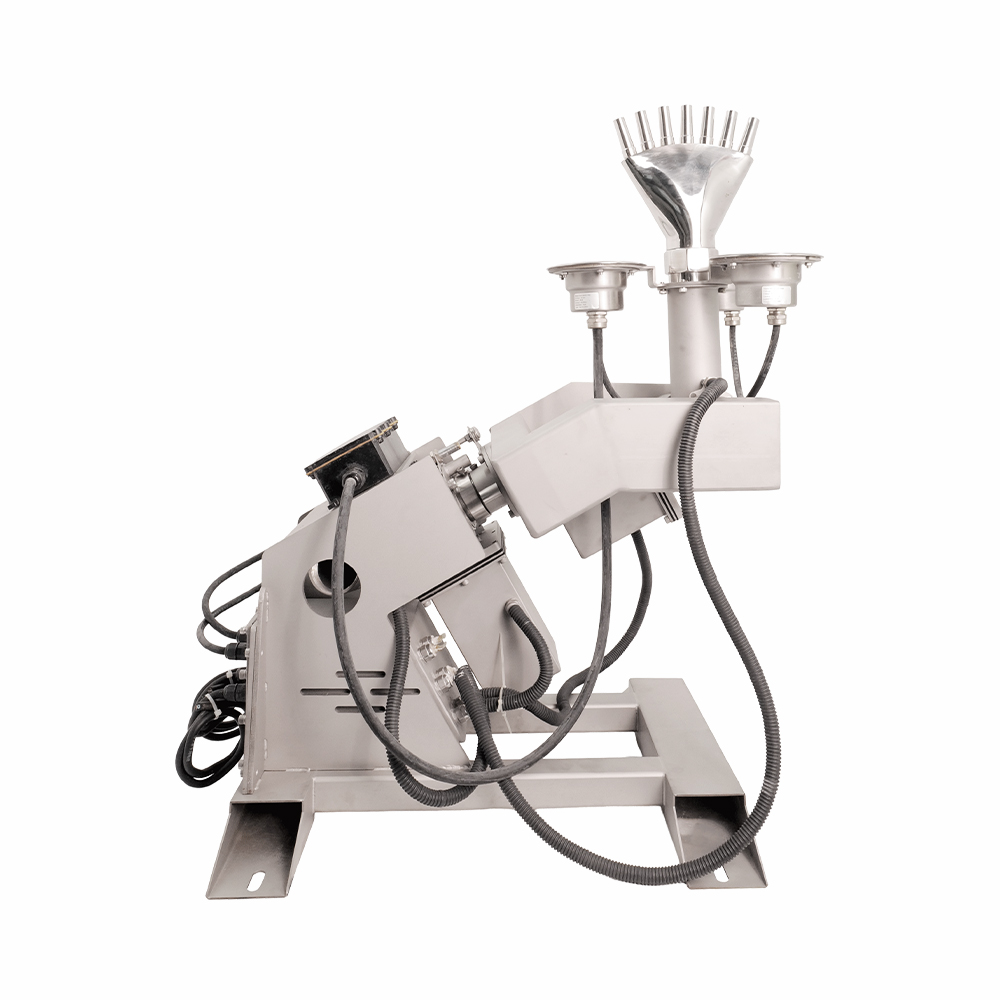

Huaxin integrated 2D fountain unit fitted with a multi-stream finger jet nozzle and RGB lights

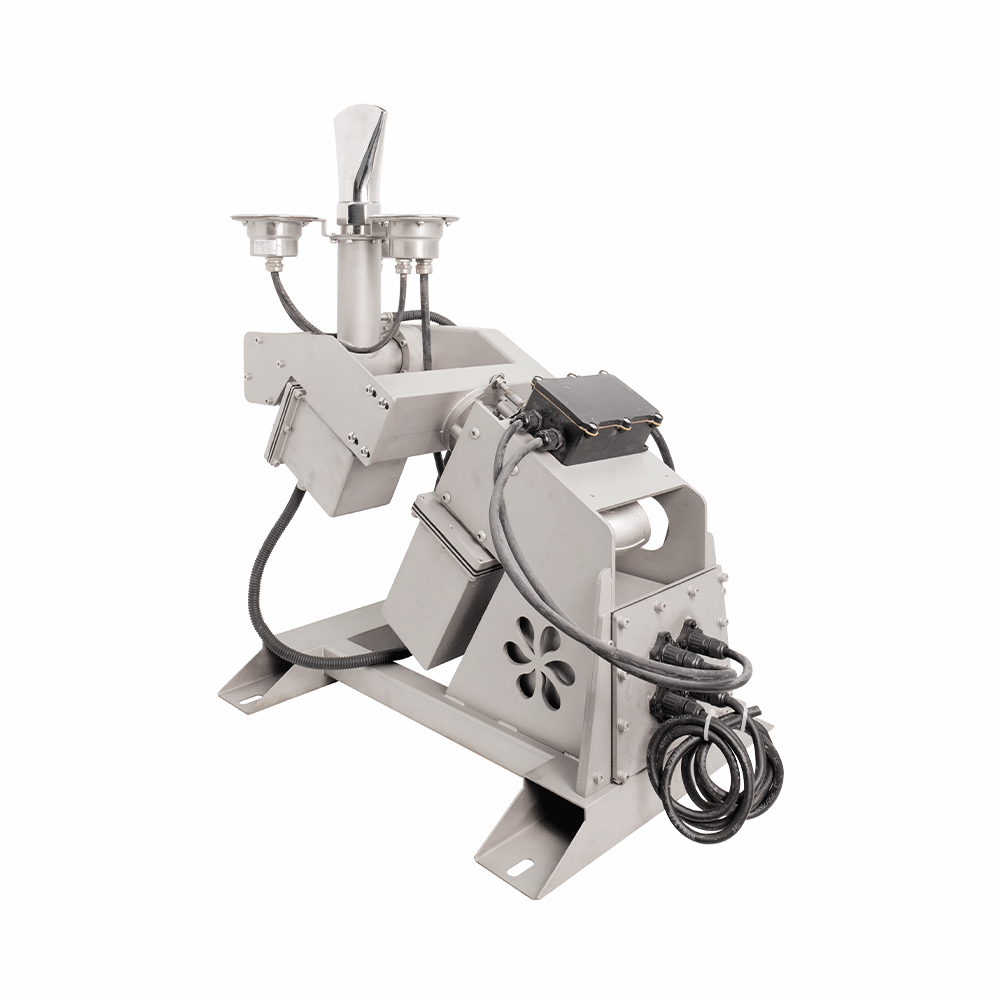

Huaxin integrated 2D fountain unit fitted with a fan jet nozzle and RGB lights

MOTION-CONTROLLED JET SYSTEMS

Dual-Axis Swivel Drive (2D) — Low-Profile

Two-axis movement. Integrated control. Light that follows the water.

The Huaxin Integrated 2D Fountain Unit combines two independently controlled movement axes with DMX512-compatible control and built-in RGB lighting. Designed for musical fountains, dancing fountains, and water shows, it brings nozzle movement and colour changes together in one equipment assembly.

Dual-axis movement · DMX512 control · 3 × 9 W RGB lighting · DN50 nozzle connection

Request a Quote

Why Choose the Integrated Version?

Integrated Control, Less External Hardware

Control and drive components are incorporated into the unit, helping reduce separate control-cabinet hardware and associated cabling. This gives project teams a more integrated equipment configuration when planning the fountain’s electrical and control system.

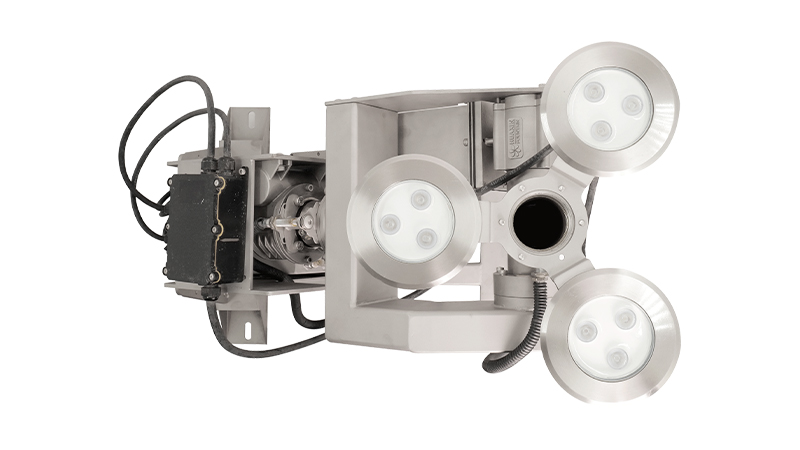

Three RGB LED lights mounted around the nozzle outlet on a Huaxin integrated 2D fountain unit

Lighting That Follows the Water

Three 9 W RGB LED lights are mounted around the nozzle outlet and move with the nozzle assembly. This arrangement helps keep illumination aligned with the changing jet direction, while programmed colour changes add another dimension to the water effect.

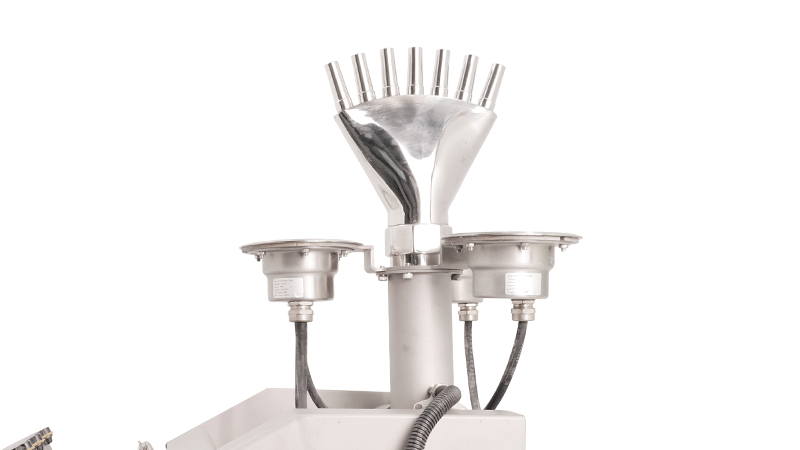

Close-up of a multi-stream finger jet nozzle for the Huaxin 2D fountain unit

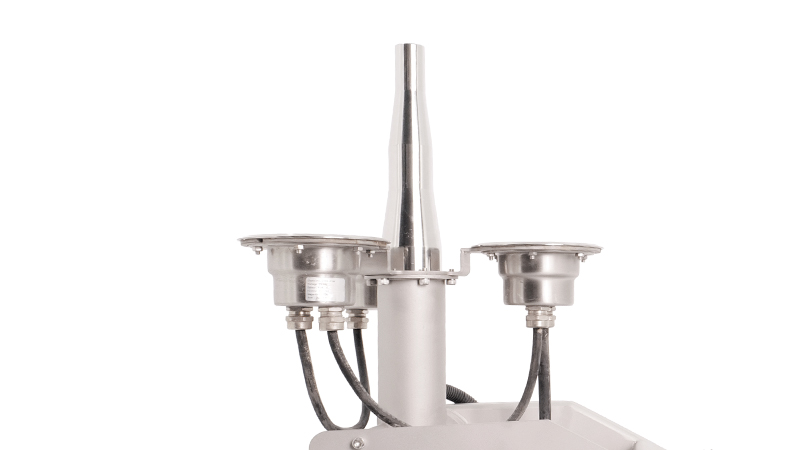

Close-up of a straight jet nozzle for the Huaxin 2D fountain unit

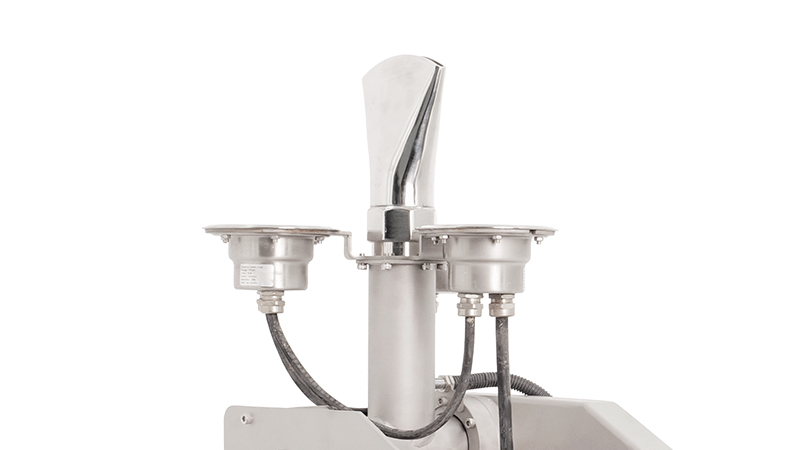

Close-up of a fan jet nozzle for the Huaxin 2D fountain unit

Different Water Patterns on One Drive Platform

A DN50 outlet supports selected straight jet, fan jet, and finger jet configurations. Choose the nozzle for the required water pattern, then use the two movement axes to shape its direction through the show sequence.

huaxin-fountain-equipment-production-workshop-01

Direct Access to the Manufacturer

Huaxin manufactures core fountain equipment in-house. Our engineering and production teams can coordinate nozzle selection, installation drawings, and control requirements, helping carry the specified water effect through to the supplied equipment.

Movement & Water Effects

“2D” refers to two controlled movement axes. On the integrated model, these axes change the nozzle’s direction while the onboard RGB lighting supports coordinated colour effects. DMX512-compatible control allows movement and lighting cues to be incorporated into a programmed fountain show.

The final effect depends on nozzle selection, equipment layout, hydraulic conditions, and programming.

Huaxin 2D fountain equipment creating multi-directional water effects

Water-jet effects produced by Huaxin dual-axis fountain units

Nozzle Configurations

Select a compatible nozzle according to the intended water pattern, available flow and head, and movement clearance.

Straight Jet Nozzle

Creates a defined water stream for directional sweeps and coordinated moving-jet arrangements.

Fan Jet Nozzle

Creates a broad, fan-shaped sheet of water that changes direction with the dual-axis drive.

Finger Jet Nozzle

Creates several distinct streams in a fan-shaped arrangement for layered water effects.

Technical Specifications & Dimensions

Specification	Integrated version
Drive type	Dual-axis swivel drive (2D)
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	600 × 450 × 624 mm
Net weight	60.6 kg
Water inlet connection	DN50
Water outlet connection	DN50
Indicative jet height	8–15 m
Lower-axis movement range	±65°
Output torque, upper / lower axis	85 / 120 N·m
Gear reduction ratio	1:10
Motor power, upper / lower axis	200 / 250 W
Motor operating voltage	DC 60–90 V
Lighting configuration	Integrated RGB LED lighting, 3 × 9 W
Control compatibility	DMX512
Power cable	JHS, 2 × 6 mm²
Control cable	JHSP, 3 × 1.5 mm²

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions.

Dimensional Drawing

Dimensions in millimetres, based on the illustrated configuration. Check the selected nozzle, full movement envelope, pipe connections, and service access against the project layout.

Multi-directional Drive 2D DMX 01 Structure Diagram 01

Multi-directional Drive 2D DMX 01 Structure Diagram 02

Related 2D Fountain Units

Huaxin dual-axis fountain swivel drive with an internal slip ring

2D Unit — Internal Slip Ring

An upright dual-axis unit with an internal slip ring and a smaller plan footprint than the low-profile version.

2D Unit — External Slip Ring

An upright dual-axis unit with an external slip ring and DN50 female-thread inlet and outlet connections.

2D Unit — Low-Profile

A lower-height design for fountain layouts with restricted vertical installation space.

Huaxin dual-nozzle 2D fountain unit with two DN50 nozzle outlets

2D Unit — Dual-Nozzle

Two nozzle outlets on a dual-axis drive for selected nozzle combinations and multi-directional water effects.

Huaxin triple-nozzle 2D fountain unit with three DN50 nozzle outlets

2D Unit — Triple-Nozzle

Three nozzle outlets expand the nozzle configuration options on one dual-axis unit for choreographed fountain effects.

Specify This Unit for Your Project

Send your fountain layout, required quantity, preferred nozzle type, target jet height, and control requirements. Huaxin can help check installation clearance, power and DMX512 connections, and the intended water-and-light sequence before preparing a quotation.
