MOTION-CONTROLLED JET SYSTEMS

Single-Axis Swivel Drive (1D) — Integrated

Integrated single-axis fountain unit with DMX512 control, 3 × 9 W RGB lighting, and ±60° swivel movement for musical fountains and water shows.

Home » Fountain Equipment » Motion-Controlled Jet Systems » Integrated 1D Swing Fountain Unit

MOTION-CONTROLLED JET SYSTEMS

Single-Axis Swivel Drive (1D) — Integrated

Integrated 1D swing fountain unit with DMX512 control and RGB lighting.

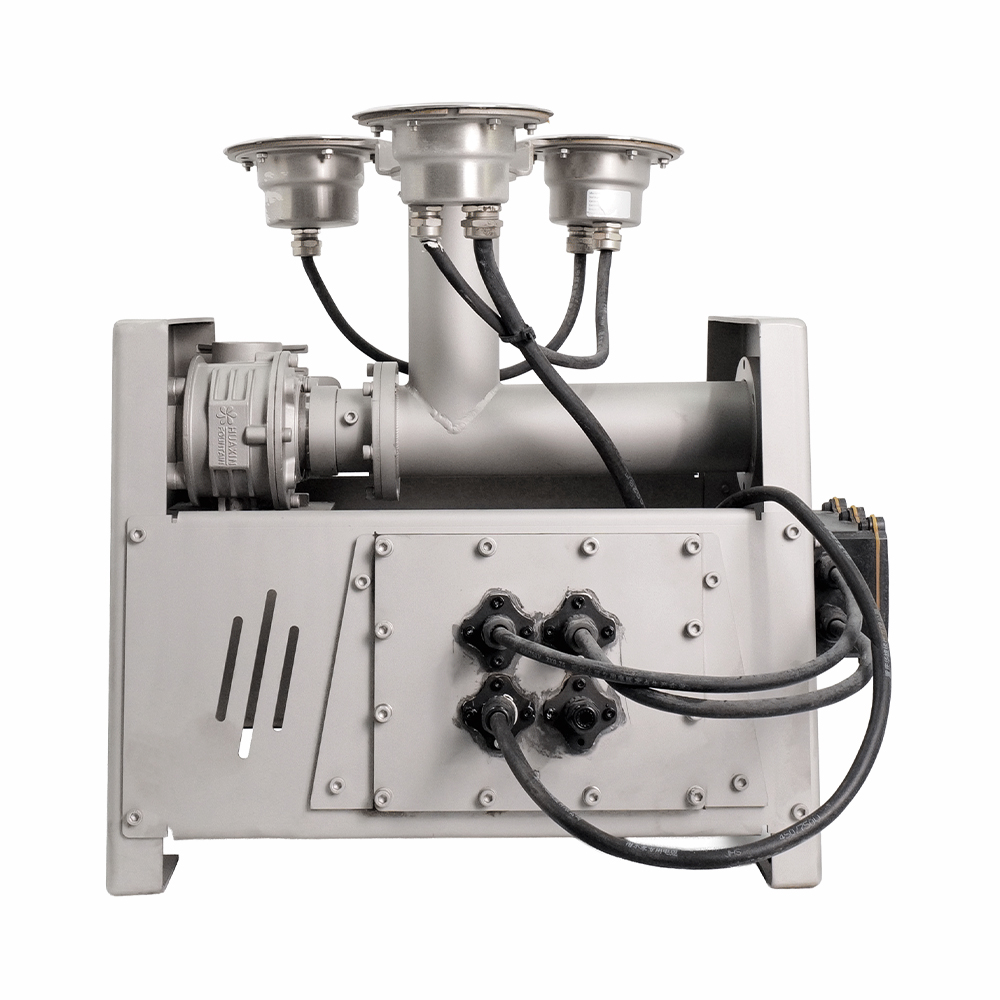

The Huaxin Integrated 1D Swing Fountain Unit combines single-axis nozzle movement, DMX512 control, and RGB lighting in one assembly. Designed for musical fountains and choreographed water shows, it provides ±60° swivel movement with DN50 inlet and outlet connections.

Integrated DMX512 control · 3 × 9 W RGB lighting · ±60° swivel · DN50

Request a Quote

Integrated DMX512 Control & RGB Lighting

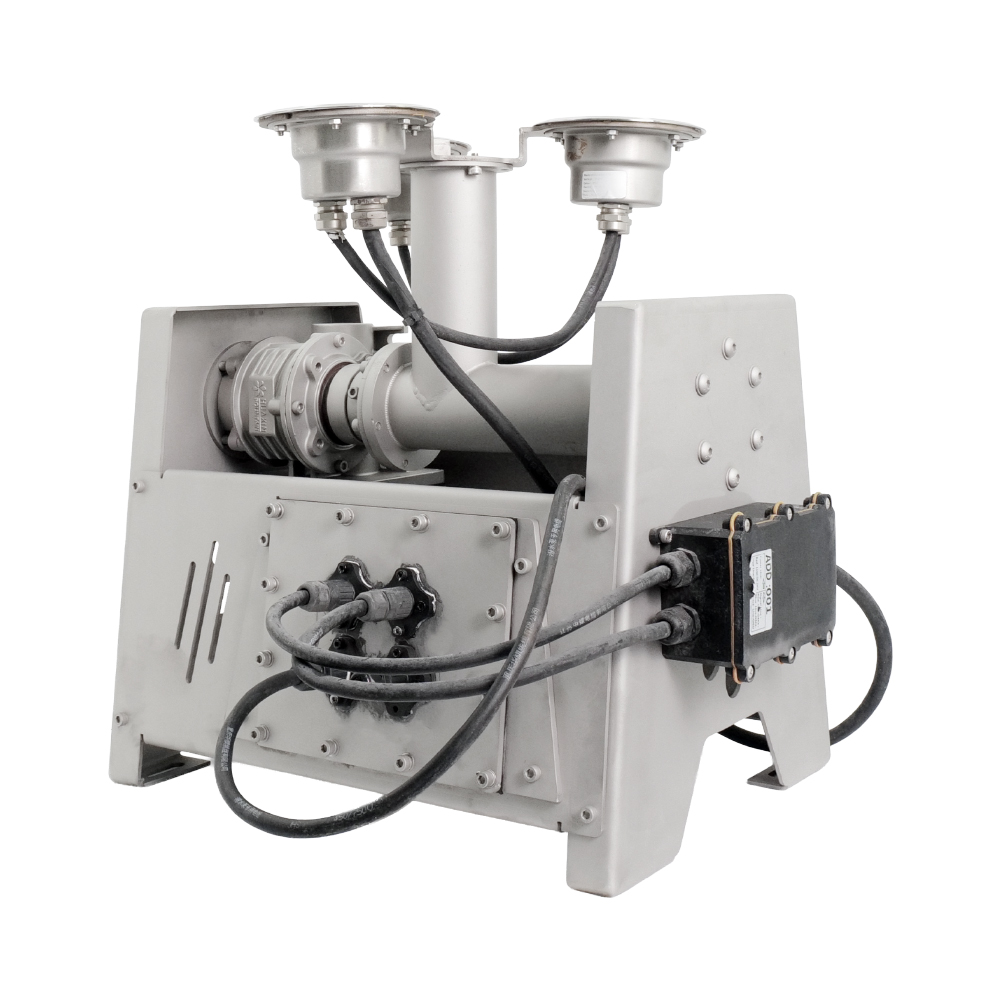

Huaxin integrated 1D swing fountain unit showing the DMX512 control assembly

Built-In DMX512 Control

Integrated DMX512 control supports programmed single-axis nozzle movement as part of the fountain show.

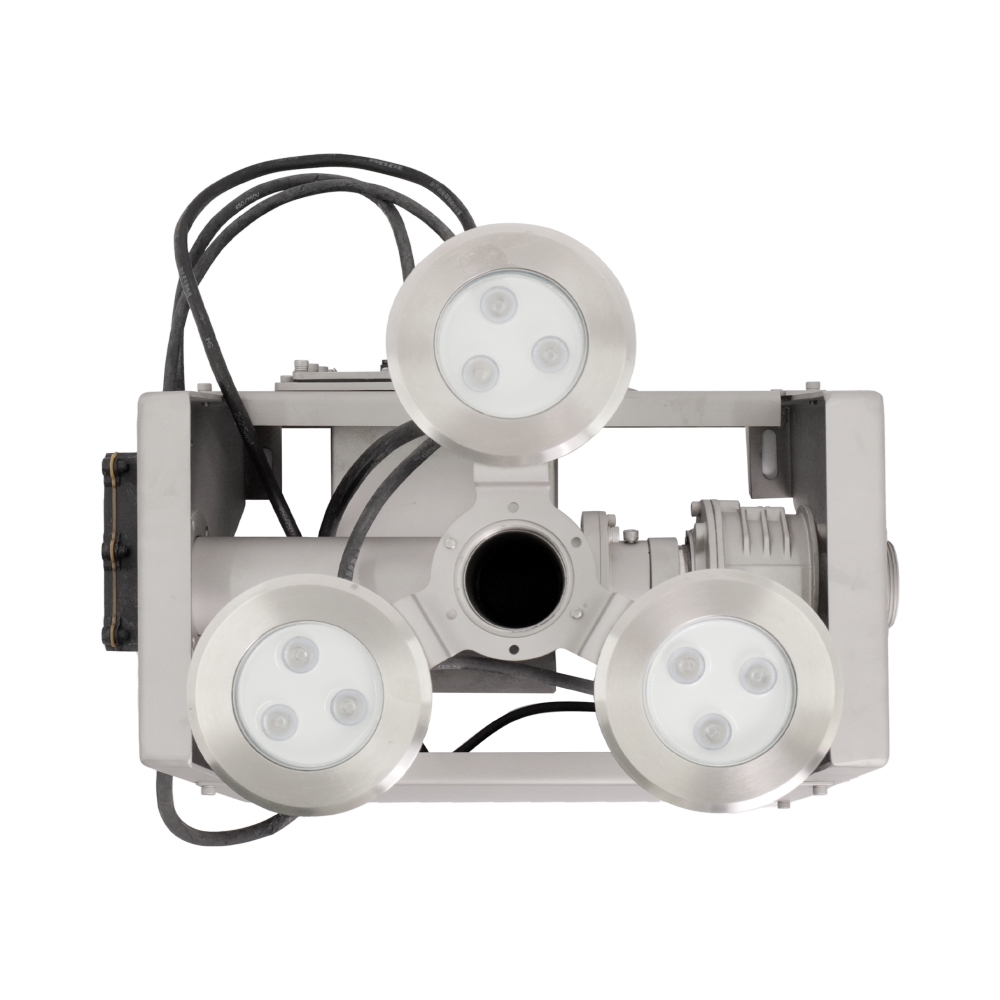

Top view of the Huaxin integrated 1D swing fountain unit showing three RGB lights

RGB Lighting on the Unit

Three 9 W RGB lights are mounted on the unit to illuminate the water effect. Movement and lighting can be coordinated within the programmed show sequence.

Movement & Water Effects

Single-axis swing changes the direction of the water jet to create moving water patterns for dancing fountains and water shows. The selected nozzle determines the shape of the jet.

Single-Axis Water Effect Examples
Water patterns depend on nozzle selection and show programming.

Swinging water-jet effect produced by Huaxin single-axis fountain equipment

Huaxin 1D swing fountain equipment producing a programmed water effect

Equipment Views & Nozzle Options

The photographs show the same integrated unit fitted with a straight jet nozzle from three angles. Other compatible nozzle types can be selected to suit the required water pattern.

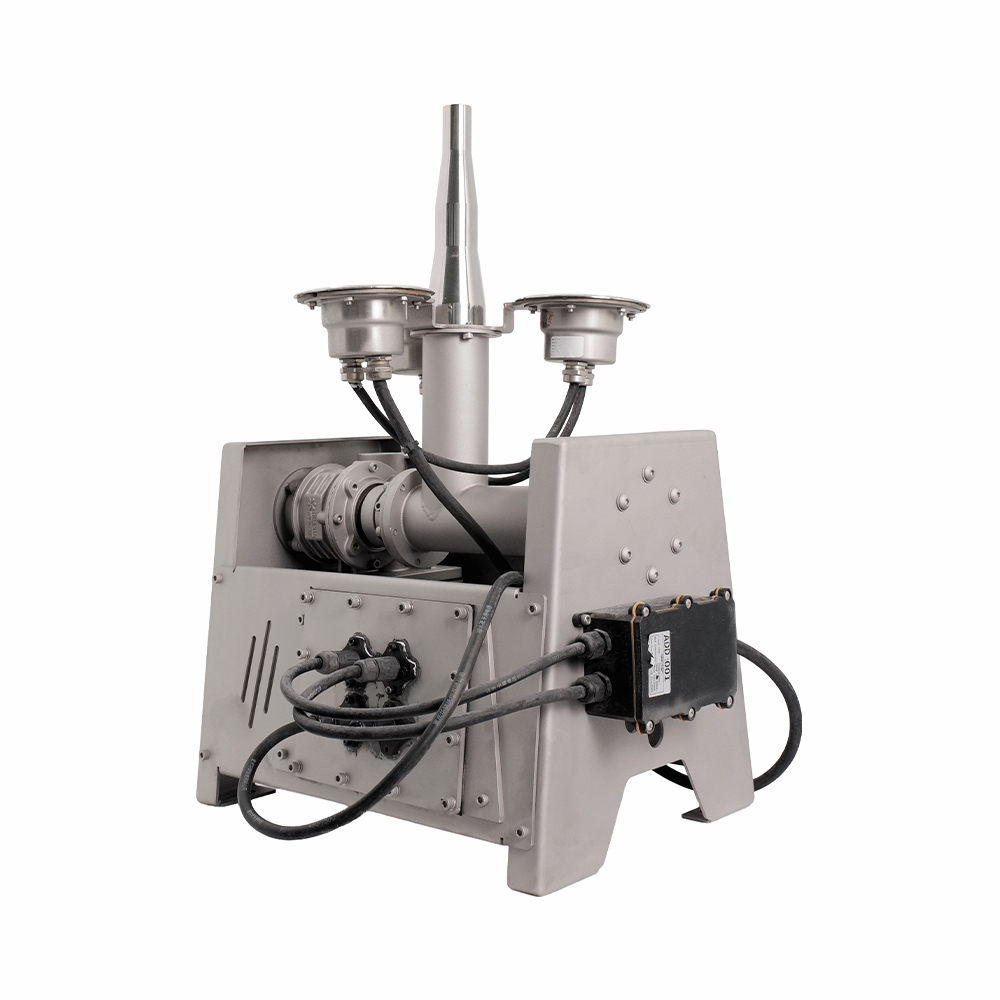

Huaxin integrated 1D swing fountain unit with a straight jet nozzle, view 3

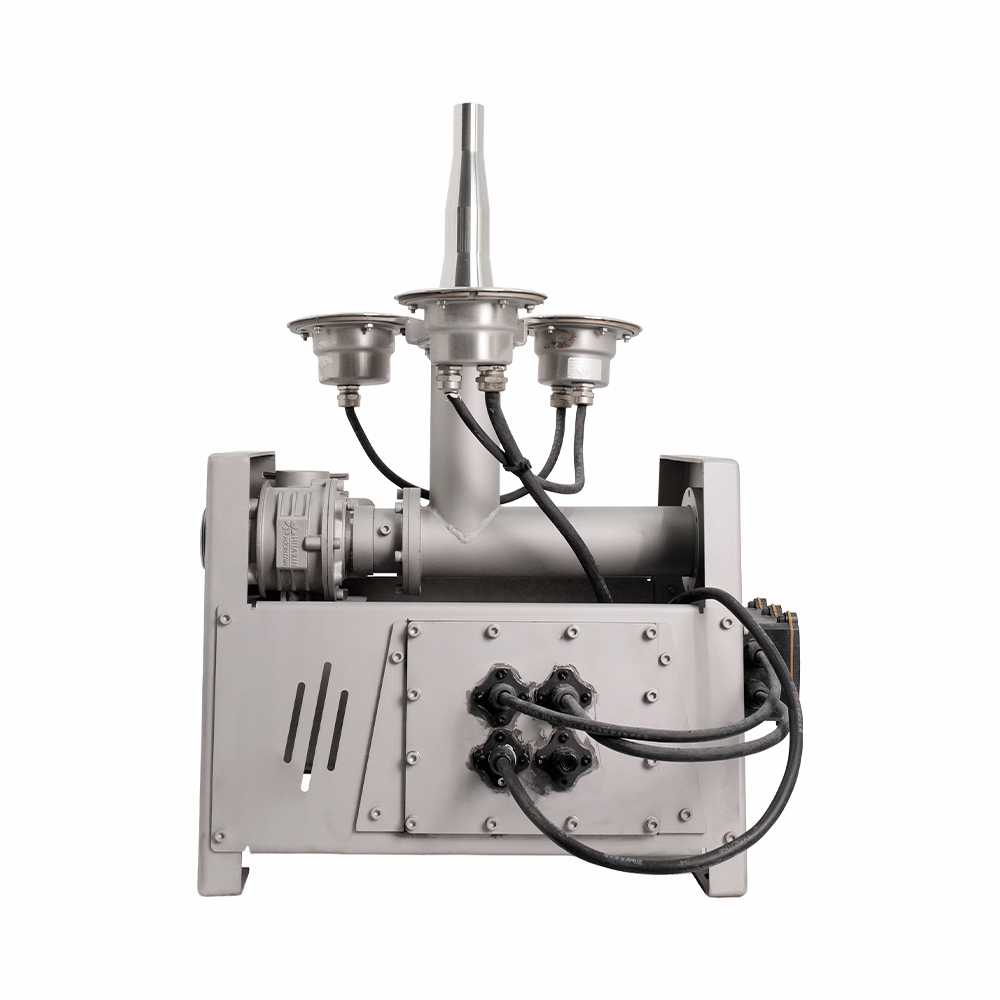

Huaxin integrated 1D swing fountain unit with a straight jet nozzle, view 2

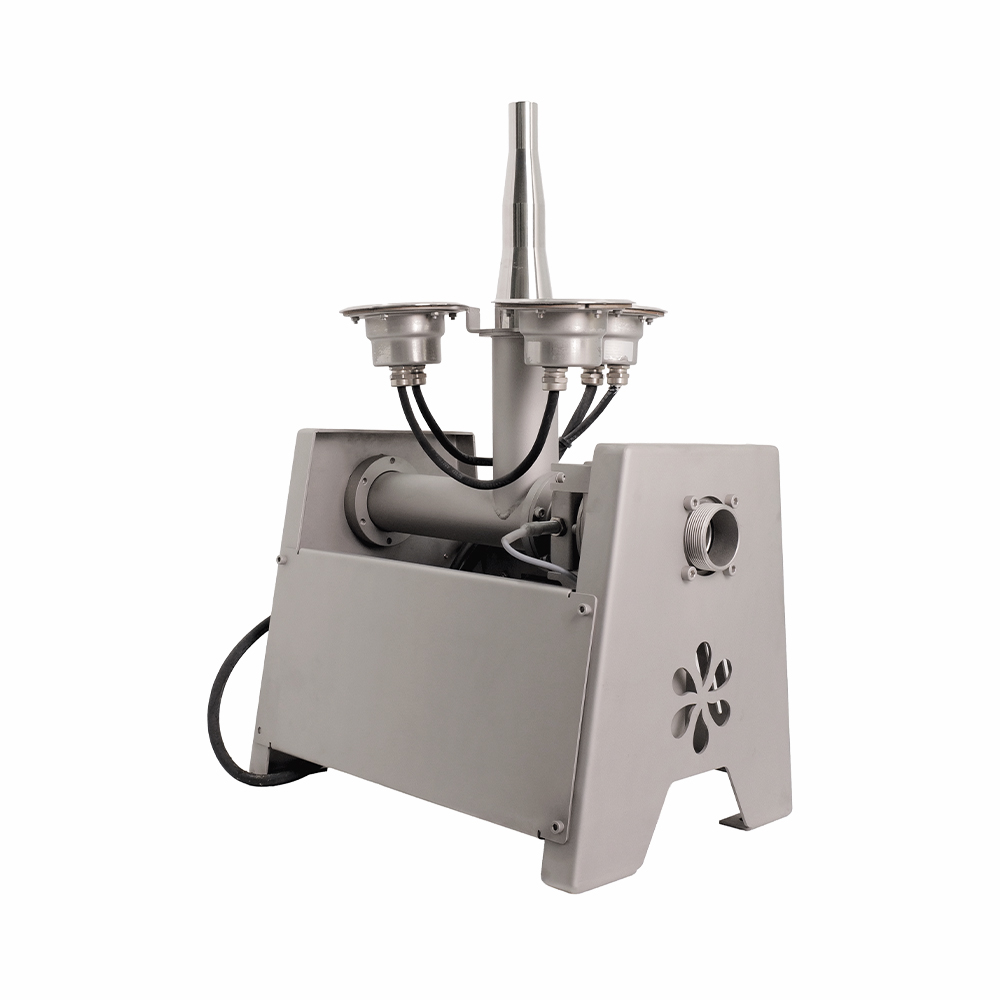

Huaxin integrated 1D swing fountain unit with a straight jet nozzle, view 1

Technical Specifications & Dimensions

Specification	Integrated 1D unit
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	495 × 328 × 478 mm
Net weight	37.5 kg
Water outlet connection	DN50
Water inlet connection	DN50
Indicative jet height	8–15 m
Motion	Single-axis (1D)
Swivel range	±60°
Control	Integrated DMX512
Output torque	85 N·m
Gear reduction ratio	1:10
Motor rated power	200 W
Motor operating voltage	DC 60–90 V
Power cable	JHS, 2 × 6 mm²
Control cable	JHSP, 3 × 1.5 mm²
Lighting	Integrated RGB LED
Lighting supply voltage	24 V DC
RGB LED power	3 × 9 W

Jet height is indicative. Actual performance depends on nozzle selection, pump flow and head, and operating conditions.

Related 1D Units

Huaxin standard 1D swing fountain unit shown with a mounting bracket and no nozzle

Standard 1D Unit

Single-axis movement with DN40 and DN50 options.

Huaxin dual-nozzle 1D swing fountain unit for switching between two water effects

Dual-Nozzle 1D Unit

Selects between two nozzle positions for different water effects.

Huaxin triple-nozzle 1D swing fountain unit for switching among three water effects

Triple-Nozzle 1D Unit

Selects among three nozzle positions for different water effects.

Specify This Unit for Your Project

Send your fountain layout or installation drawing, target jet height, preferred nozzle type, and control requirements. Huaxin will help confirm the equipment configuration and quotation.
