LAMINAR & JUMPING JET SYSTEMS

Laminar Fountain Jets

Continuous, glass-like water arcs with standard, submersible, and laser-illuminated configurations for project-specific fountain layouts.

Request a Quote
Home » Fountain Equipment » Laminar & Jumping Jet Systems » Laminar Fountain Jets

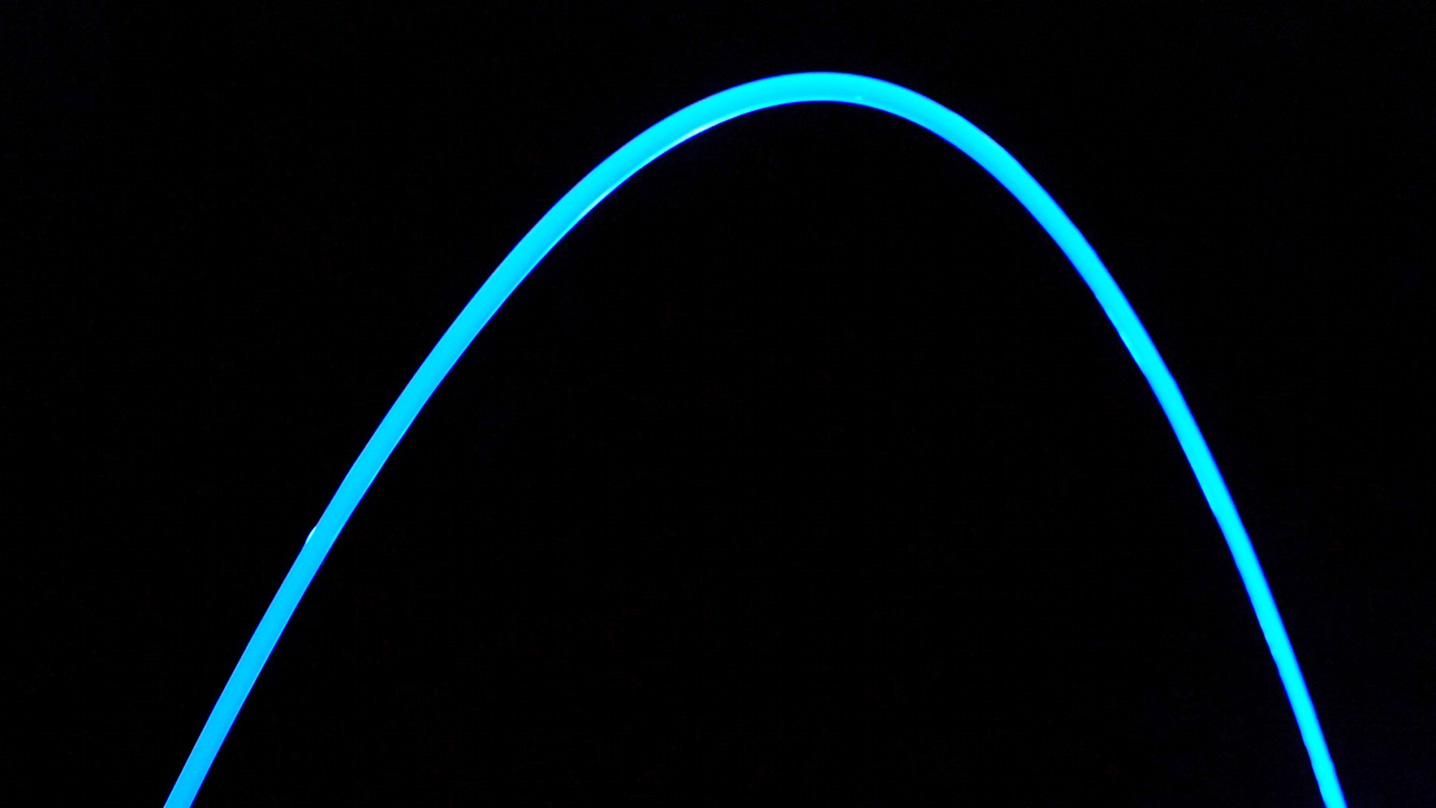

Close-up of a smooth, continuous water stream from a Huaxin laminar fountain jet

A Clear, Continuous Water Arc

A laminar jet forms a defined stream from the nozzle to its landing point. Its smooth surface gives the water a glass-like appearance, creating a distinct visual element in repeated or opposing fountain arrangements.

The effect comes from the way water is conditioned inside the unit before leaving the outlet. Consistent water supply and careful installation help preserve the arc’s clarity and shape.

LAMINAR & JUMPING JET SYSTEMS

Laminar Fountain Jets

Clear water arcs. Light along the curve.
Huaxin laminar fountain jets create smooth, continuous water arcs with a transparent, glass-like appearance. Choose standard, submersible, or laser-illuminated configurations for musical fountains, commercial fountain installations, and choreographed water shows. Nozzle size and hydraulic requirements are selected to suit the intended height, span, and installation layout.
Continuous water arcs · 10–18 mm outlet options · Submersible configurations · Laser illumination

Request a Quote

Choose Your Laminar Jet

Huaxin laminar fountain jet unit for continuous water arcs

Standard Laminar Jet

Creates a continuous water arc for layouts where the unit and outlet can be positioned to suit the surrounding structure. Four outlet sizes provide options for different water-stream diameters, jet heights, and spans.

View Standard Specifications

Huaxin submersible laminar jet unit with a protective outlet tube

Submersible Laminar Jet

A protective outlet tube allows the equipment body to sit below the water surface while maintaining a continuous laminar arc. This helps accommodate the equipment within a pool and reduce its visual presence in the fountain layout.

The tube length and installation position are coordinated with the project’s operating water level.

View Submersible Specifications

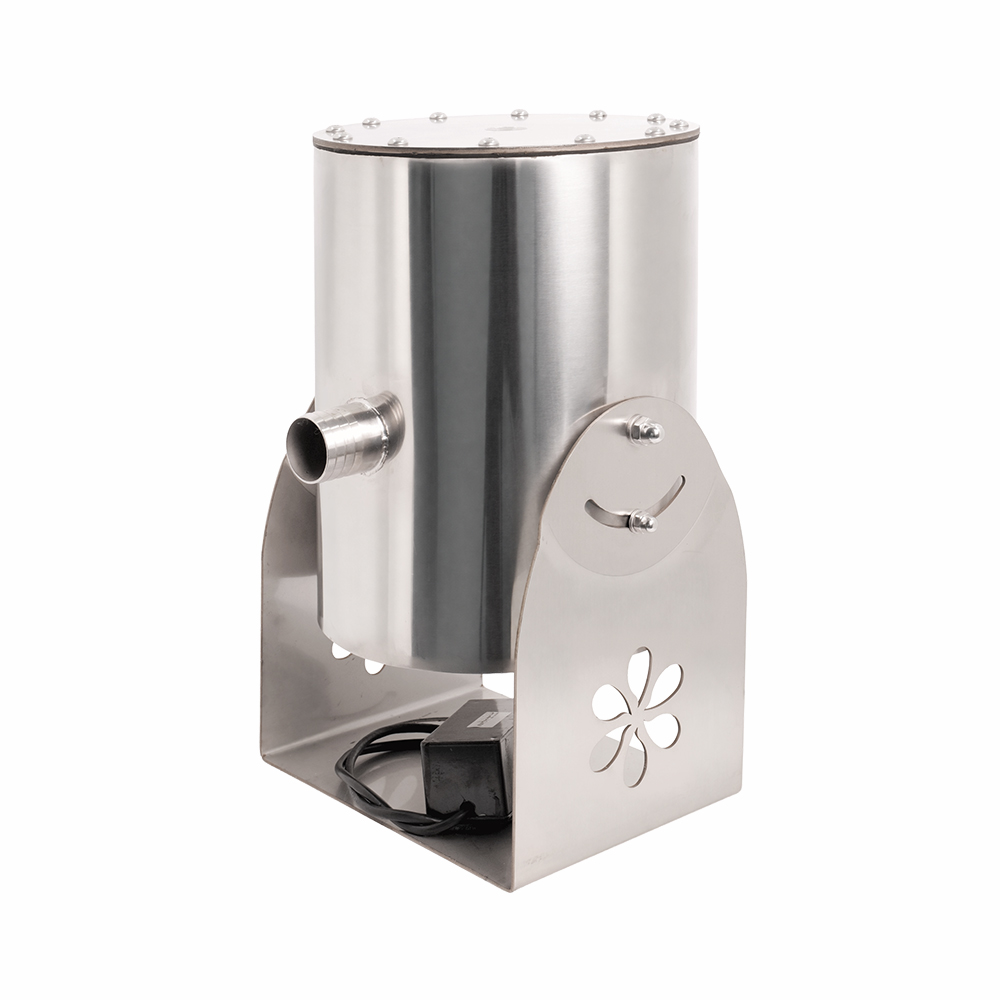

Huaxin laser-illuminated laminar fountain jet unit

Laser-Illuminated Laminar Jet

Uses laser illumination to make the continuous water stream more visible in daylight and other bright surroundings. It is an option for projects where the illuminated arc needs to remain a distinct part of the display beyond nighttime operation.

View Laser-Illuminated Specifications

Light Along the Water Arc

Illumination changes how the continuous stream is seen: the water arc becomes a visible line of light within the fountain composition.
For brighter surroundings, the laser-illuminated version provides an alternative to conventional laminar-jet illumination. Compare the effects under the intended ambient conditions and select the lighting configuration for the project’s viewing distance and operating schedule.

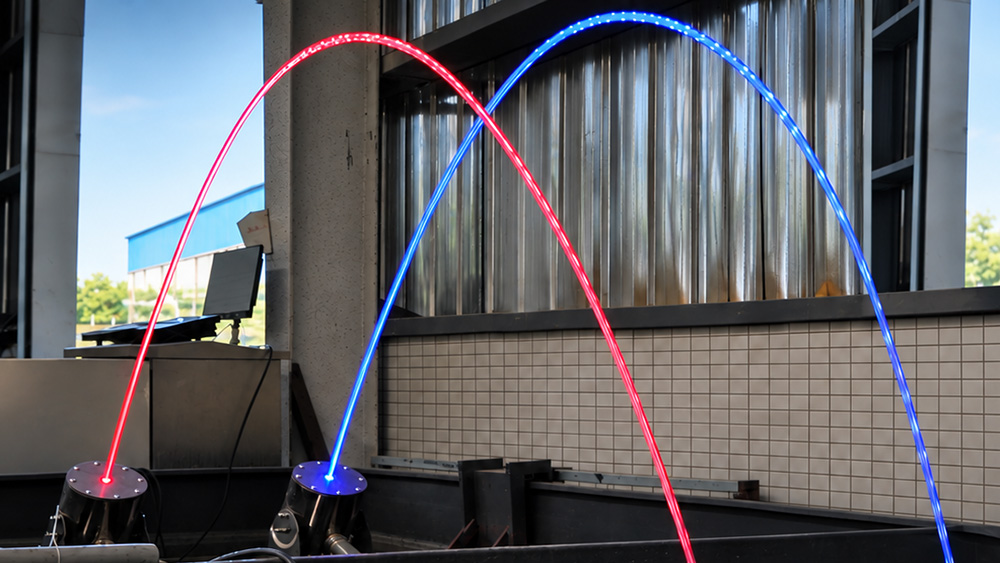

Laminar water arc with laser illumination during a Huaxin comparison test

Laser-illuminated

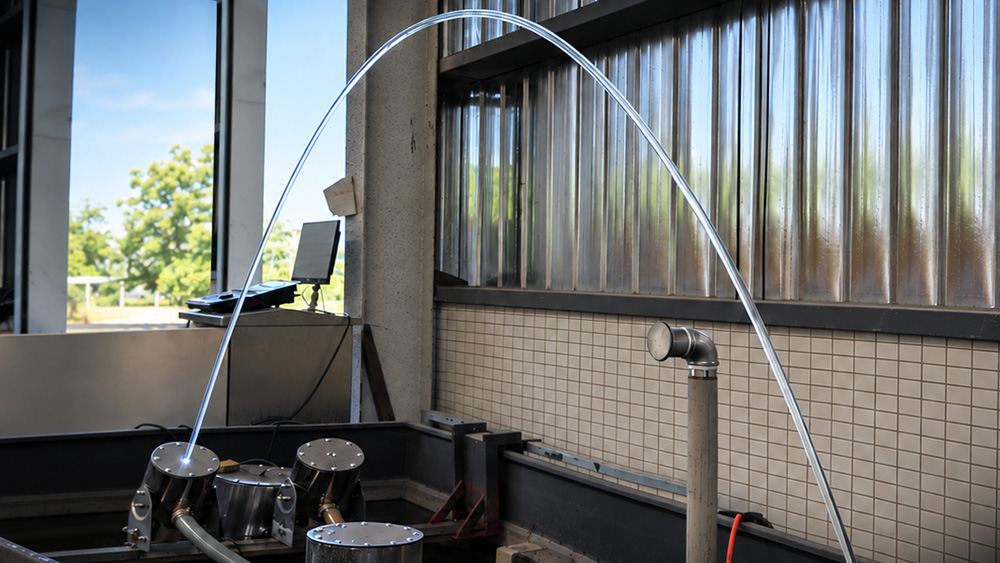

Laminar water arc with conventional illumination during a Huaxin comparison test

Conventional illumination

Watch the Lighting Comparison

Plan the Arc Around Your Fountain

Use repeated arcs along a linear pool, opposing jets across a fountain basin, or continuous water curves within a musical fountain composition.

Select each unit around the required span, height, and landing position. Outlet diameter, installation angle, and hydraulic conditions work together to determine the water trajectory.

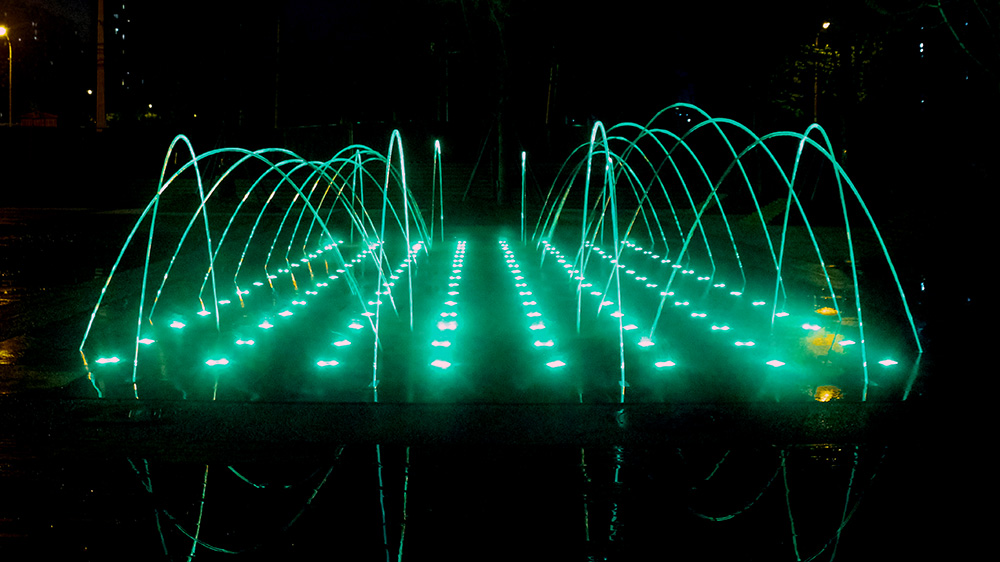

Continuous laminar water arcs arranged along a linear fountain layout

Linear arrangement

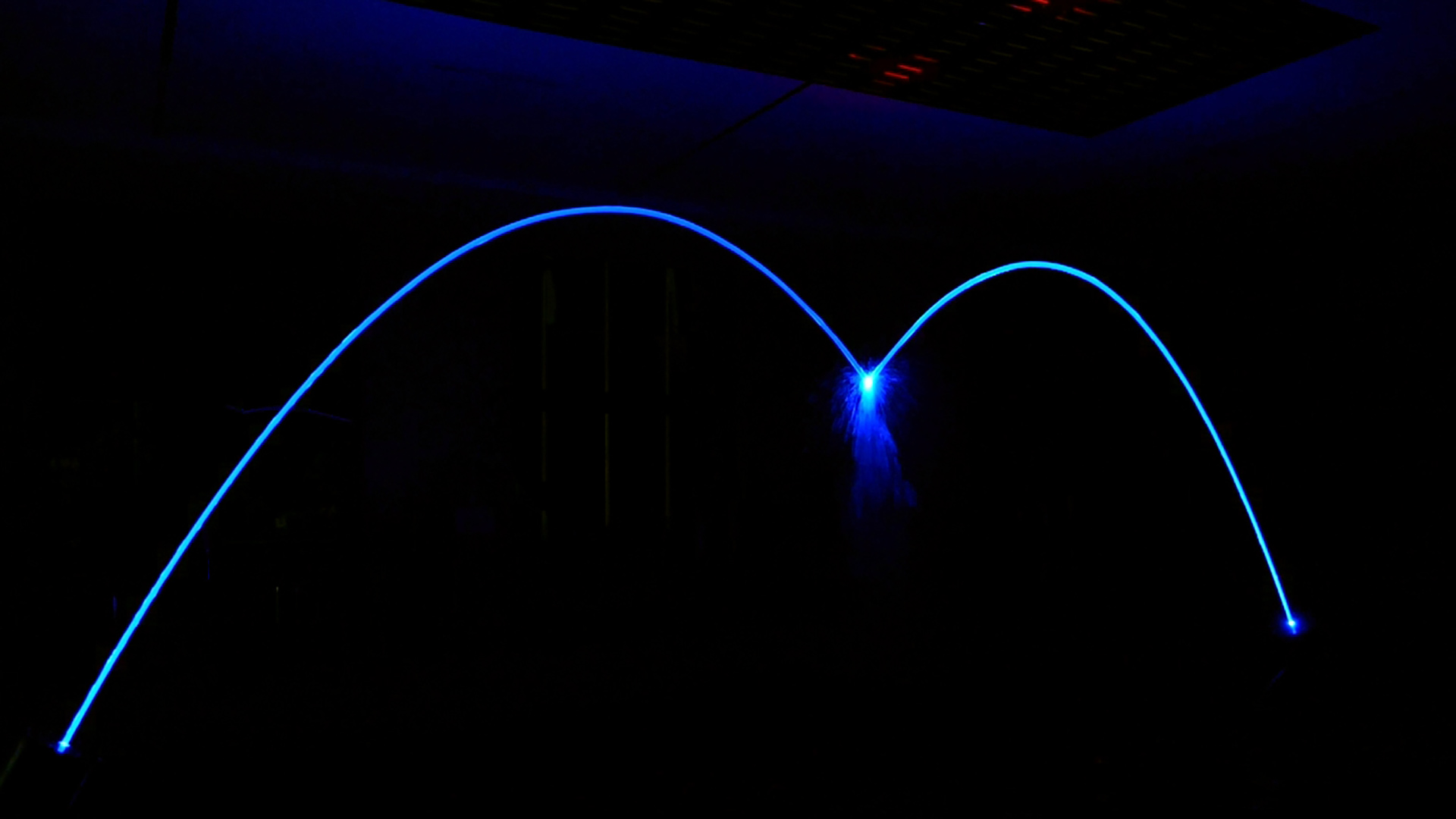

Opposing laminar water arcs crossing above a fountain pool

Opposing arrangement

Technical Specifications & Hydraulic Selection

The following tables provide catalogue values for selecting the configuration and outlet size. Review the required trajectory and available installation space before finalizing the model.

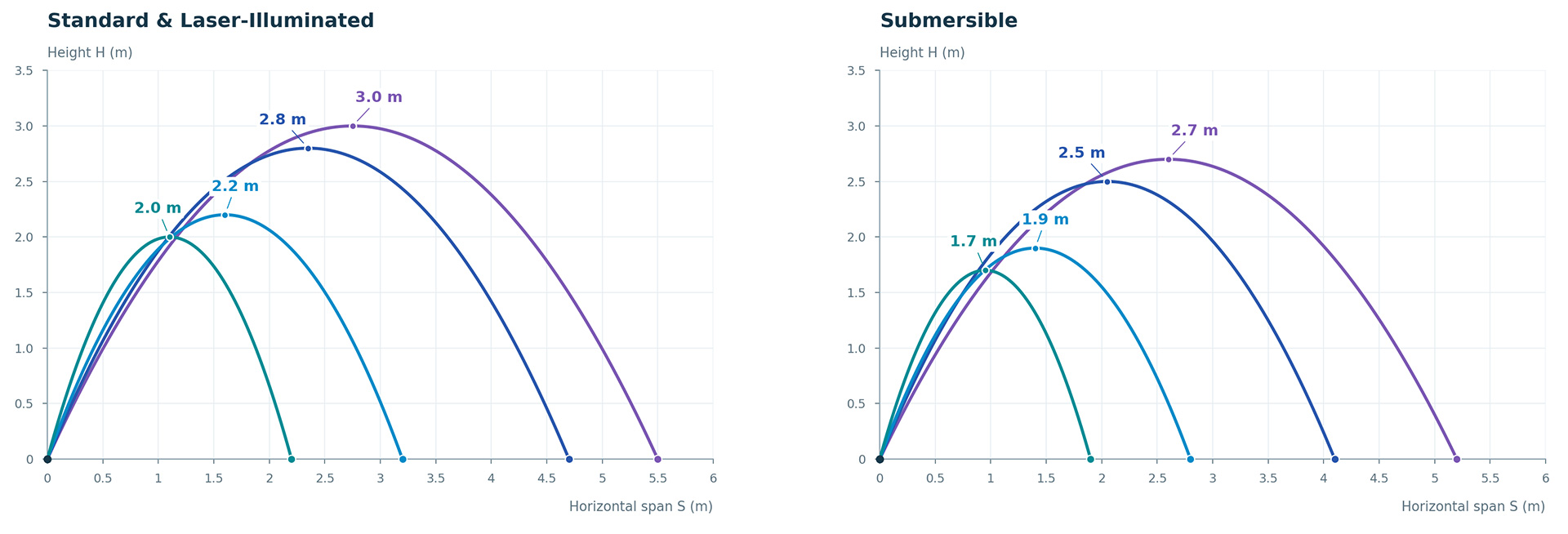

Diagram showing laminar jet outlet angle, arc height, horizontal span and landing level
Diagram showing laminar jet outlet angle, arc height, horizontal span and landing level

Standard Laminar Jet

ModelOutlet ØInletFlow (m³/h)Listed pump head (m)Jet height (m)Jet span (m)
HX-SA1-10-2010 mmDN25342.02.2
HX-MA1-14-4014 mmDN404102.23.2
HX-LA1-16-4016 mmDN405122.84.7
HX-XLA1-18-4018 mmDN407143.05.5

Submersible Laminar Jet

ModelOutlet ØInletFlow (m³/h)Listed pump head (m)Jet height (m)Jet span (m)
HX-(S)B310 mmDN25341.71.9
HX-(M)B314 mmDN404101.92.8
HX-(L)B316 mmDN405122.54.1
HX-(XL)B318 mmDN407142.75.2

Laser-Illuminated Laminar Jet

ModelOutlet ØInletFlow (m³/h)Listed pump head (m)Jet height (m)Jet span (m)
HX-MA514-4014 mmDN404102.23.2
HX-LA516-4016 mmDN405122.84.7
HX-XLA518-4018 mmDN407143.05.5

Height and span are indicative catalogue values. Confirm the installation angle, height reference, and landing level for the selected configuration. Final pump selection must account for the complete hydraulic system, including pipework and filtration.

Dimensions & Weights

Outlet ØListed dimensions, L × W × H (mm)Standard/submersible base-unit weight (kg)Laser-illuminated weight (kg)
10 mm209 × 217 × 2857.0—
14 mm251 × 264 × 37312.613.0
16 mm330 × 317 × 48817.417.8
18 mm345 × 373 × 43323.223.8

For submersible models, the listed dimensions and weights cover the base unit only and exclude the customized protective outlet tube.

Request Dimensional Drawings

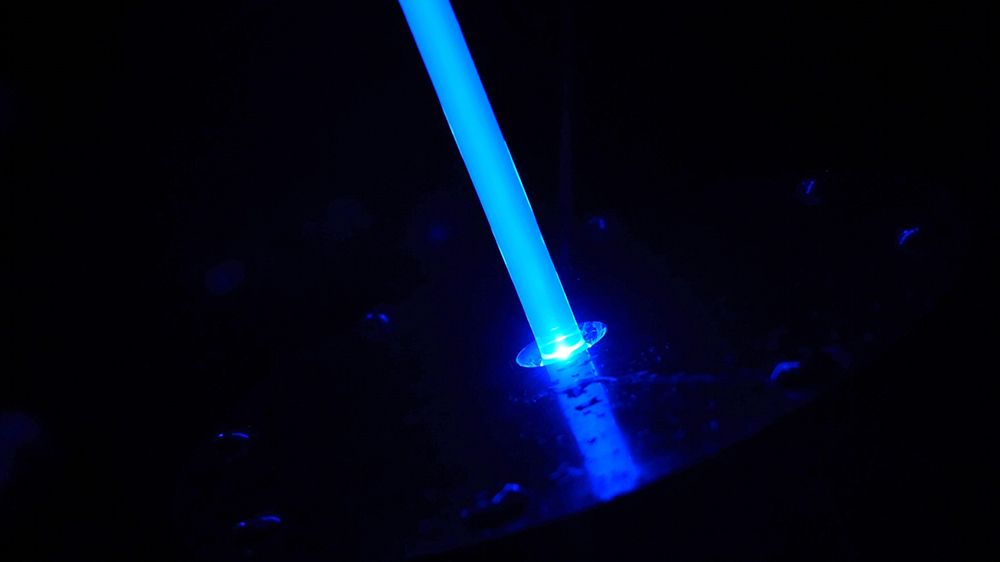

Close-up of the outlet on a Huaxin standard laminar fountain jet

Installation & Water Supply

Provide clean, appropriately filtered water with a steady supply to the jet. Coordinate pipework, flow adjustment, and maintenance access with the installation layout.

For submersible configurations, check the equipment position and protective outlet tube against the operating water level. For outdoor installations, consider wind exposure and the receiving area when planning the arc and its landing point.

Discuss Installation Requirements

Contact us for installation drawings and guidance.

Factory workshop showing real production capacity for custom fountain projects

From Manufacturing to Project Support

Huaxin manufactures core fountain equipment in-house. Our team can help coordinate the selected laminar jets with the fountain layout, water supply, installation details, and lighting requirements.

Share your drawings and intended water effect so that engineering and equipment selection can be reviewed together.

Explore Our Factory in VR

Laminar Jet Questions

A laminar jet produces a continuous water arc. A jumping jet adds a cutting mechanism that divides the stream into separate segments for programmed jumping effects.

Choose the submersible version for below-water installation of the equipment body. Its protective outlet tube and installation position are configured around the operating water level.

Provide the required span and height, landing position, operating water level, preferred lighting, and quantity. A layout or section drawing helps confirm the configuration, available space, and hydraulic requirements.

Related Equipment

Huaxin jumping fountain jet unit for segmented water effects

Jumping Fountain Jets

Create separated water segments along a laminar arc with an internal cutting mechanism. Standard, submersible, and laser-illuminated configurations are available.

Specify Laminar Jets for Your Project

Send your fountain layout, required quantity, target height and span, operating water level, and lighting preference. Huaxin will help confirm the configuration and prepare an equipment quotation for your project.
