Dual-Axis Swivel Drive (2D) — Low-Profile

Multi-directional water effects with a lower installation profile.

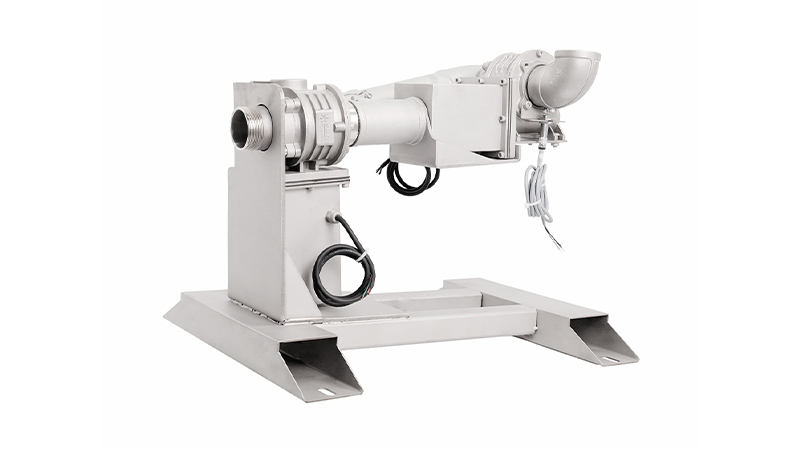

The Huaxin Low-Profile 2D Swing Fountain Unit uses a horizontal drive arrangement for fountain installations with restricted vertical space. It combines ±80° lower-axis movement with 360° upper-axis rotation to guide a selected DN50 nozzle through programmed directional sequences for musical fountains, dancing fountains, and water shows.

470 mm overall height · ±80° lower-axis movement · 360° upper-axis rotation · SUS304

Request a Quote

Why Choose the Low-Profile Version?

Lower Height for Restricted Installation Space

With a listed overall height of 470 mm, this version offers a lower alternative to Huaxin’s upright 2D units. Its horizontal arrangement gives project teams another option when available installation height is a key constraint.

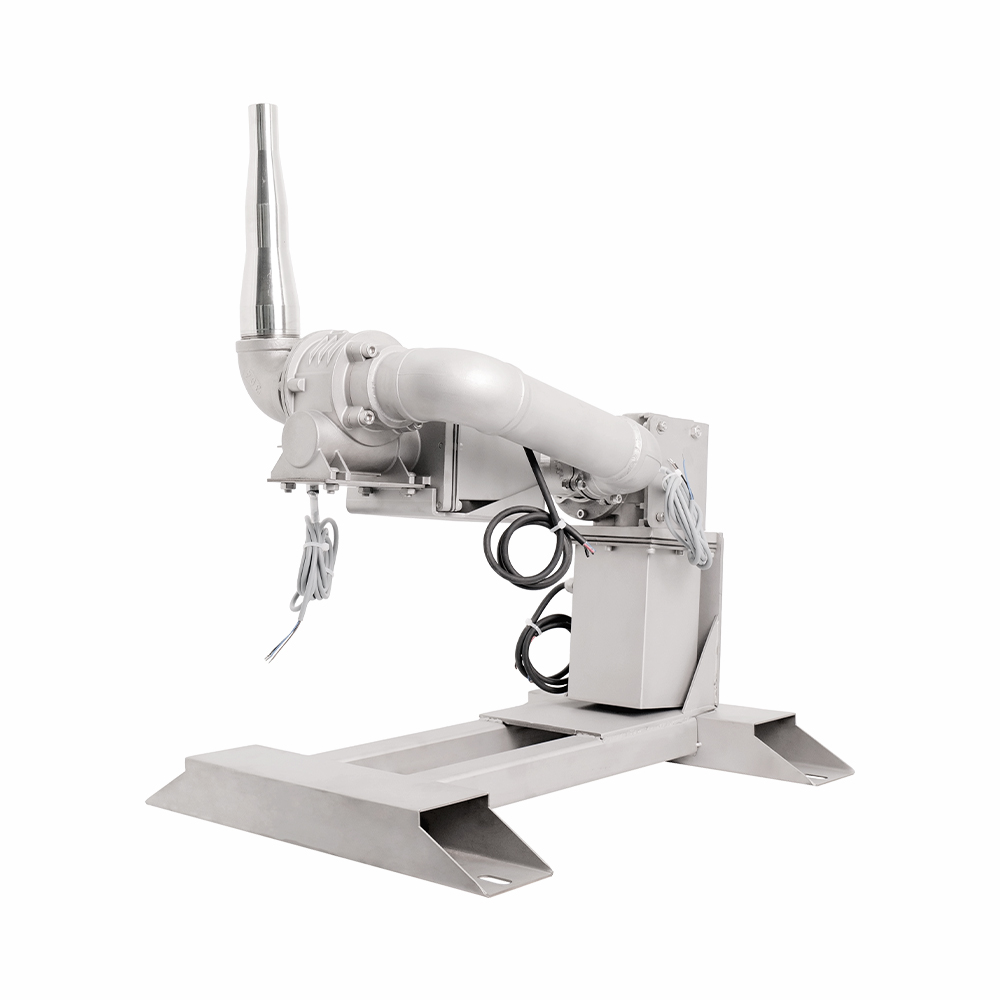

Water-jet effects produced by Huaxin dual-axis fountain units

Huaxin 2D fountain equipment creating multi-directional water effects

Two-Axis Movement for Varied Show Sequences

Combine ±80° lower-axis movement with 360° upper-axis rotation to change the direction and inclination of the water effect. The two axes provide more choreography options than movement within a single swing plane.

DN50 Nozzle Options for Different Water Patterns

Select a compatible straight jet, fan jet, or finger jet nozzle to match the intended effect. The drive controls the movement, while the nozzle shapes the water, allowing one drive platform to suit different show designs.

huaxin-fountain-equipment-production-workshop-01

Direct Manufacturer Support

Huaxin manufactures core fountain equipment in-house. Our team helps confirm the selected nozzle, connection arrangement, movement clearance, and control requirements against your project drawings.

Movement & Water Effects

“2D” refers to two controlled movement axes. On this model, the lower axis moves through ±80°, and the upper axis has a 360° rotation range. The fountain control system combines these movements into programmed water-effect sequences.

Final effects depend on nozzle selection, equipment arrangement, hydraulic conditions, and programming.

Nozzle Configurations

Select the nozzle according to the required water pattern, available flow and head, and installation clearance.

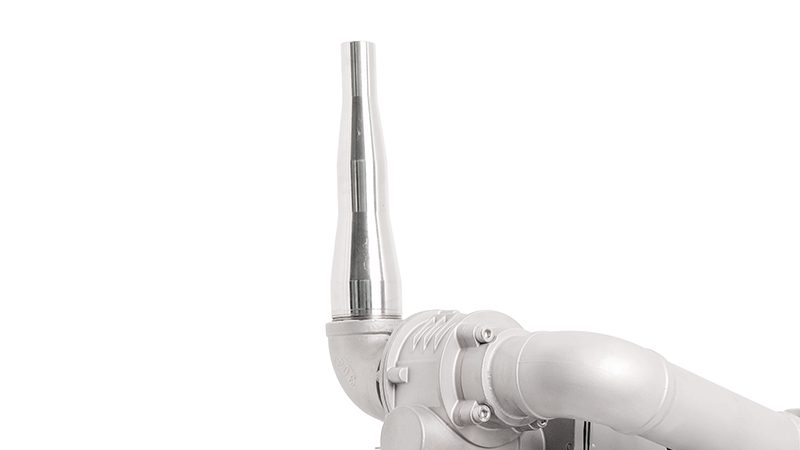

Straight Jet Nozzle

Produces a defined water stream for directional sweeps and coordinated jet arrangements.

Fan Jet Nozzle

Produces a broad, fan-shaped sheet of water that changes direction with the dual-axis drive.

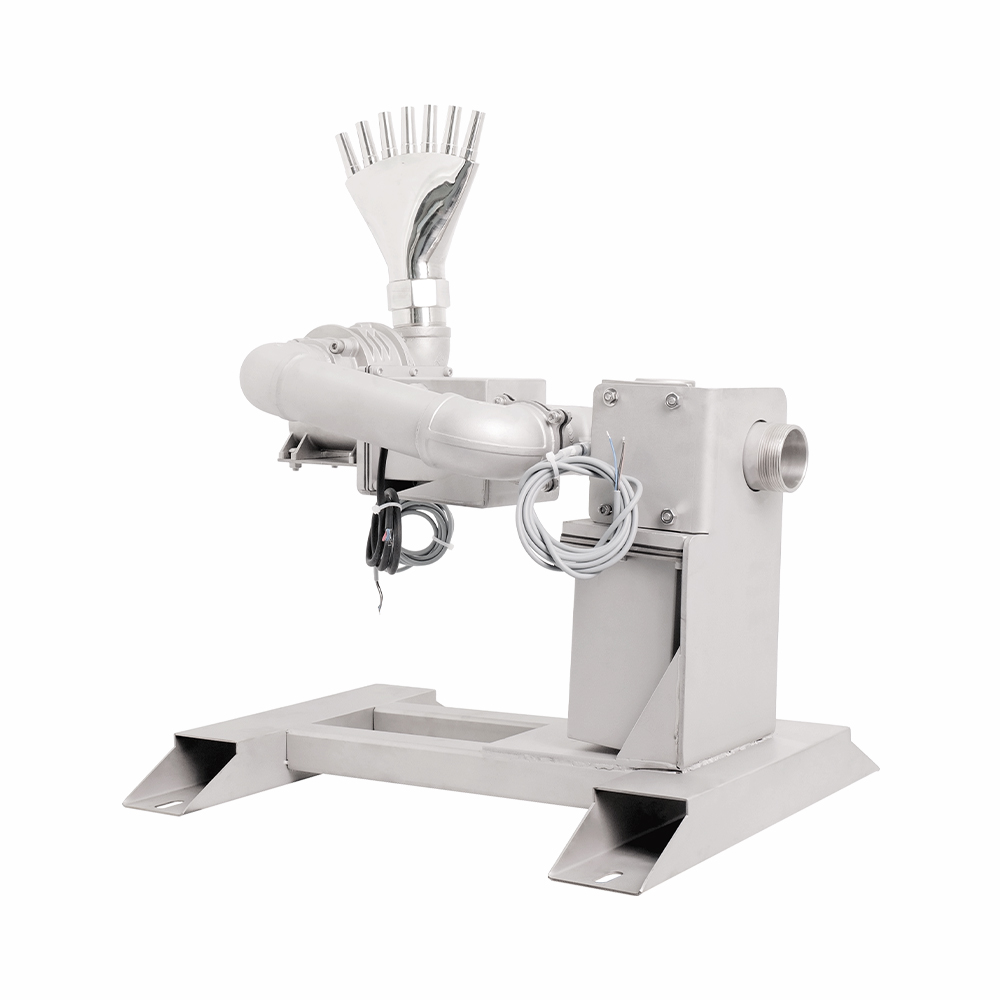

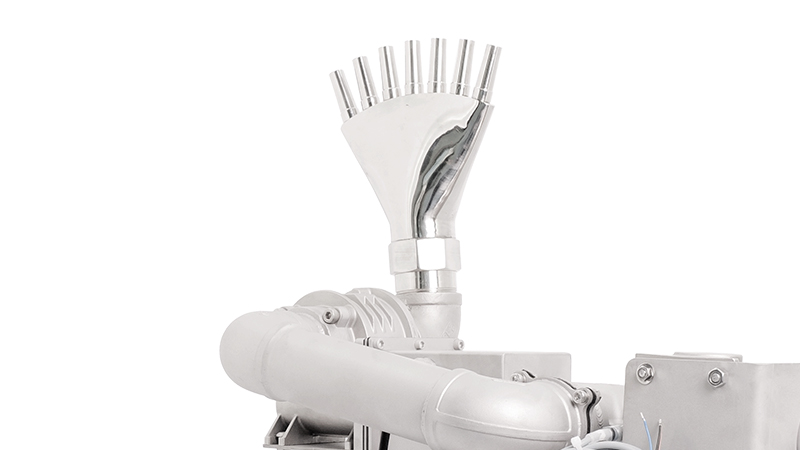

Finger Jet Nozzle

Produces several distinct streams in a fan-shaped arrangement for layered, multi-stream water effects.

Technical Specifications & Dimensions

Specification	Low-profile version
Drive arrangement	Low-profile dual-axis swivel drive (2D)
Material	SUS304 stainless steel
Overall dimensions (L × W × H)	581 × 450 × 470 mm
Net weight	41.8 kg
Water outlet connection	DN50
Water inlet connection	DN50, male thread
Indicative jet height	5–15 m
Lower-axis movement range	±80°
Upper-axis rotation range	360°
Output torque, lower / upper axis	120 / 85 N·m
Gear reduction ratio	1:10
Total rated power	600 W
Motor operating voltage	AC 55–70 V / DC 60–90 V
Motor cable	JHS, 4 × 2.5 mm²
Sensor cable	JHSP, 3 × 1.5 mm²
Sensor supply voltage	24 V DC

Jet height is indicative and depends on nozzle selection, pump flow and head, and operating conditions. Confirm the electrical configuration and control compatibility for the specified unit.

Related 2D Fountain Units

Huaxin dual-axis fountain swivel drive with an internal slip ring

2D Unit — Internal Slip Ring

An upright dual-axis unit with an internal slip ring and a smaller plan footprint than the low-profile version.

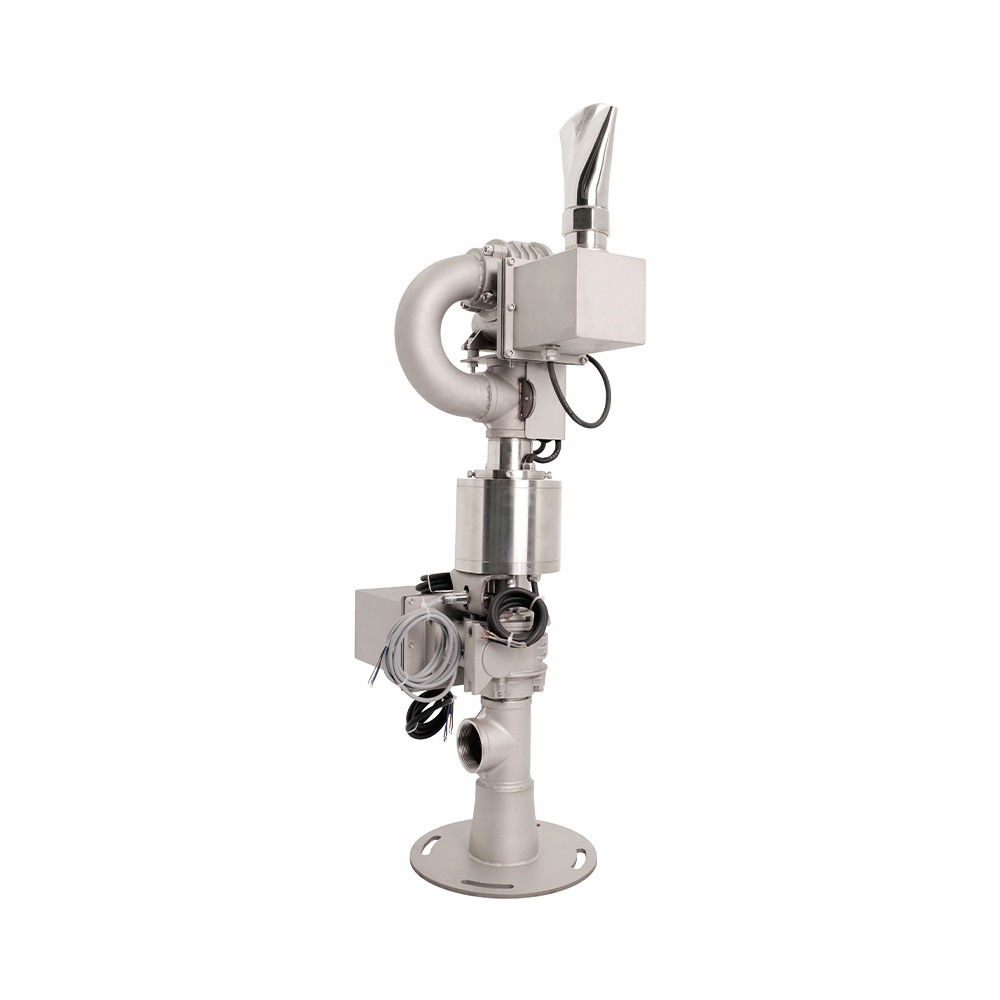

2D Unit — External Slip Ring
