FLAME & IMPACT EFFECT SYSTEMS

Flame Jet

Flame jet equipment for musical fountains and outdoor water shows, with SUS304 construction, a maximum flame height of 10 m, and project-specific system configuration.

Request a Quote
Home » Fountain Equipment » Flame & Impact Effect Systems » Flame Jet

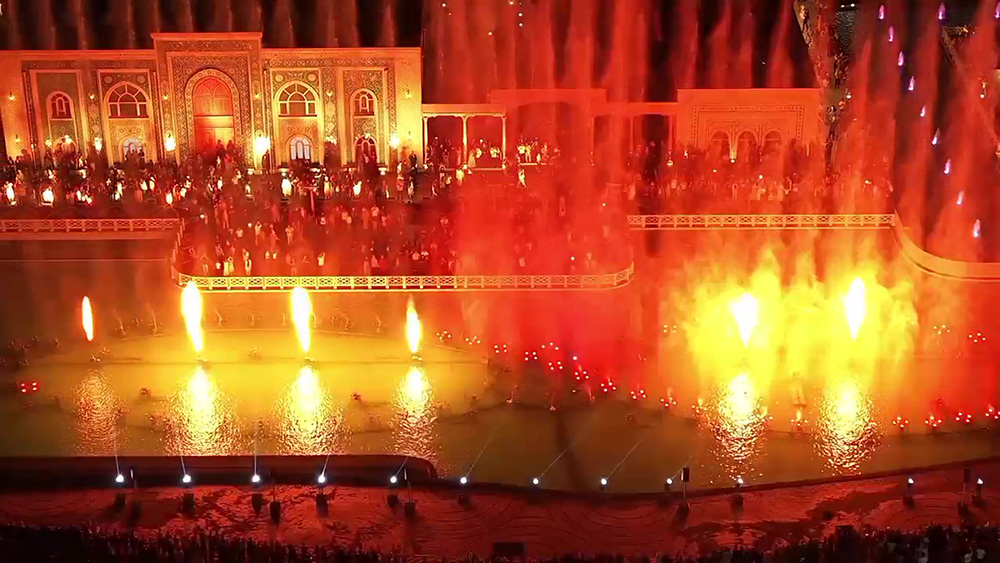

Huaxin flame jets operating at the Margilan fountain project in Uzbekistan

FLAME & IMPACT EFFECT SYSTEMS

Flame Jet

Fire fountain equipment for musical fountains and outdoor water shows.

The Huaxin flame jet creates vertical fire effects for musical fountains, dancing fountains, and multimedia water shows. With a specified maximum flame height of 10 m, it adds a prominent fire accent alongside illuminated water jets.

Our fire fountain equipment combines a stainless steel flame unit with a supply and control arrangement configured for the project. Coordinate flame cues with the fountain sequence to emphasise key moments and introduce contrast between water, light and fire.

Flame effects up to 10 m · SUS304 construction · Project-specific system configuration

Request a Quote

Why Choose Huaxin Fire Fountain Equipment?

Flame Effects Up to 10 Metres

With a specified maximum flame height of 10 m, this model gives designers a prominent fire effect for outdoor fountain compositions. Select the operating height around the intended view, site clearances, and approved operating conditions.

Stainless Steel Equipment and Supply Pipework

The flame unit uses SUS304 stainless steel, with seamless SUS304 pipework specified for the fuel supply. Stainless steel main-pipe fittings and ball valves form part of the project’s supply arrangement.

System Configuration for Your Fountain Layout

The main-pipe diameter and pressurization-unit model are selected for the site. This allows the supply arrangement to be coordinated with the flame-head positions, pipe routes, and operating requirements of the show.

Flame Effects in Motion

Watch the product video to see the flame effect in operation. The accompanying photographs show how fire effects can be incorporated into a fountain composition.

https://youtu.be/D452R5iA8ls

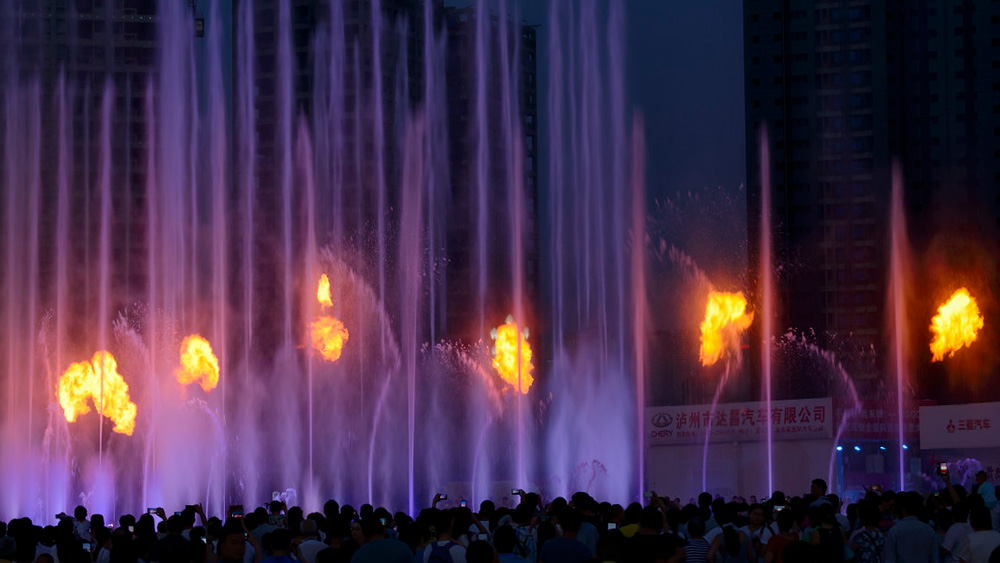

Flame effect from a Huaxin fountain flame jet

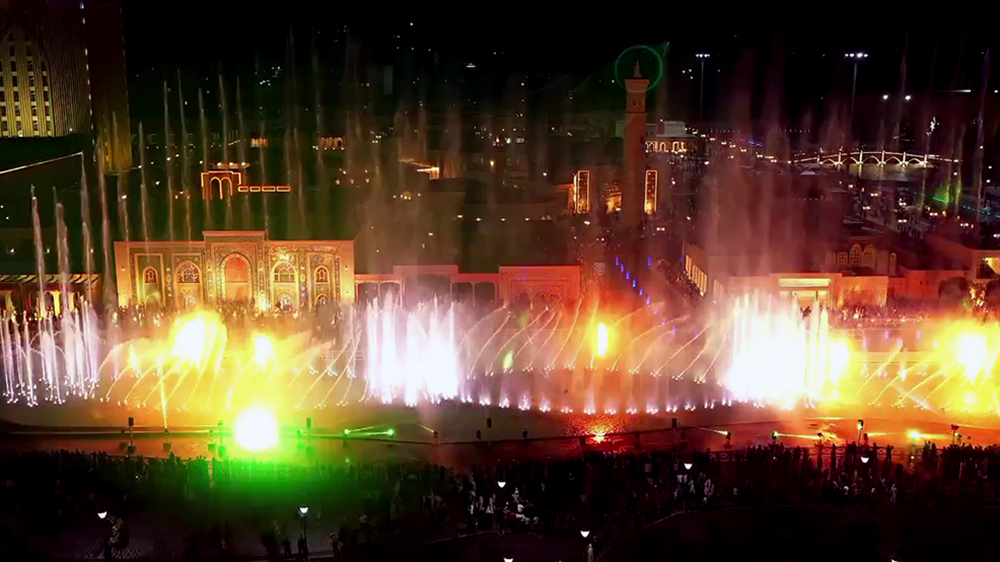

Flame effects at the Margilan musical fountain project in Uzbekistan

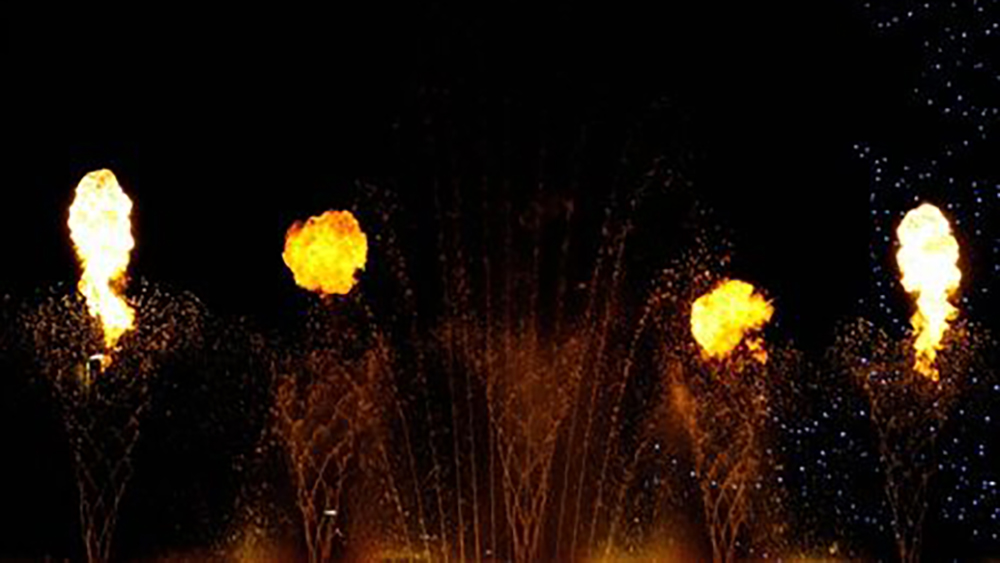

Fire effect in a fountain display

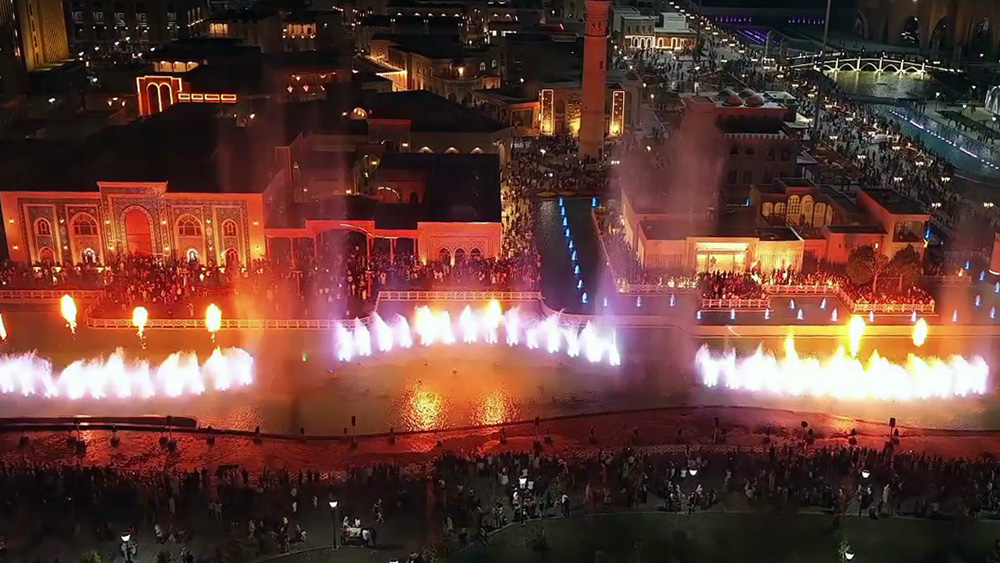

Fire fountain effects in the Huaxin fountain installation in Margilan, Uzbekistan
Flame effect from a Huaxin fountain flame jet
Flame effects at the Margilan musical fountain project in Uzbekistan
Fire effect in a fountain display
Fire fountain effects in the Huaxin fountain installation in Margilan, Uzbekistan

Flame Jet Equipment & System Configuration

Huaxin flame jet unit with a vertical burner and stainless steel support frame

Flame Jet Unit

The flame jet unit creates the visible fire effect at the selected fountain position. Coordinate its mounting location with the intended flame height, neighbouring equipment, and the surrounding audience areas.

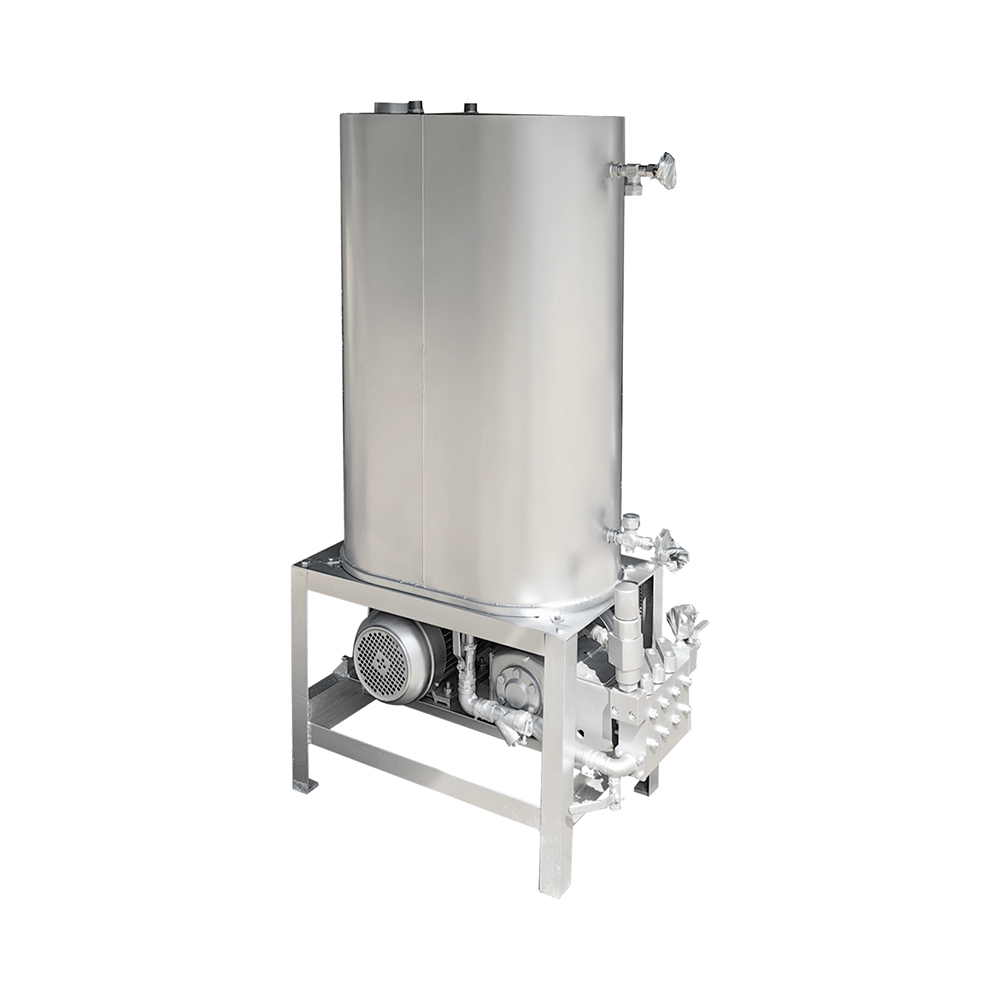

Fuel pressurization unit for the Huaxin flame jet system

Fuel Pressurization Unit

The separate pressurization unit supplies the flame equipment through the project’s fuel pipework. Its model and the main-pipe size are selected according to site conditions. Allow suitable access for fuel management, inspection, and maintenance.

Pipework & Flexible Connections

The supply arrangement uses stainless steel pipework and flexible connections between the ball valves and flame heads. The main pipe and flame heads require separate support arrangements to limit the transfer of equipment and pipe vibration.

Request a System Configuration

Technical Specifications

SpecificationValue
Equipment typeFlame jet
MaterialSUS304 stainless steel
Overall dimensions600 × 280 × 810 mm
Weight23.5 kg
Input voltage220 V
Current2.5 A
Power550 W
Maximum flame height*10 m
Nozzle diameter2.5 mm
Fuel pipe materialSeamless SUS304 stainless steel pipe
Main-pipe sizeDetermined by site conditions

Flame height depends on the system configuration, specified fuel, and operating conditions. The listed maximum is 10 m. The separate pressurization unit and its electrical requirements are confirmed for each project.

Request Dimensional Drawing

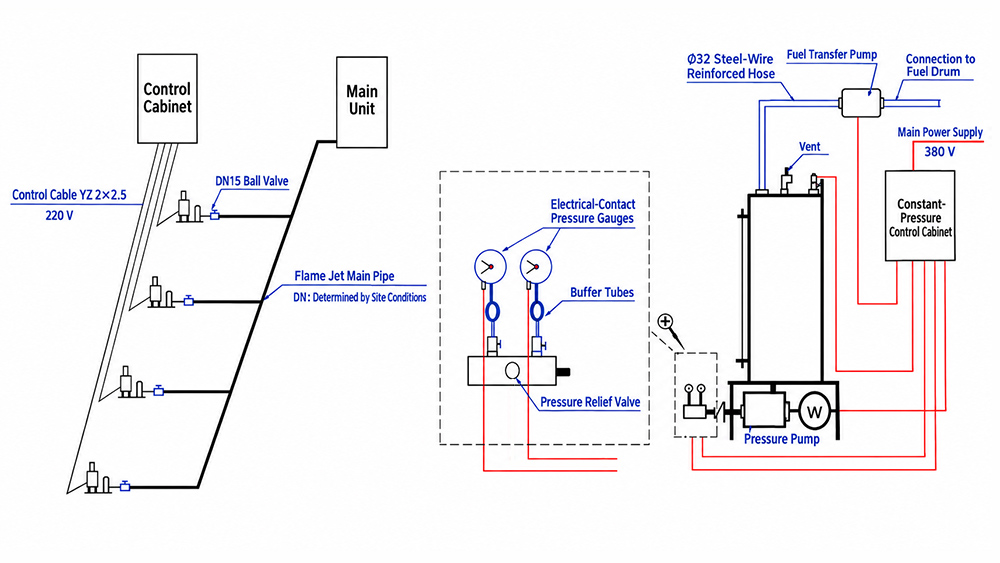

System diagram showing flame heads, fuel supply pipework, pressurization equipment and control cabinets

System Layout & Installation

The system arrangement brings together the flame heads, fuel distribution pipework, pressurization equipment and controls. Coordinate these components with the fountain layout, service access and the space required around the flame effect.

Use the equipment in suitable outdoor conditions. Assess wind exposure and establish the required clearances from audiences, structures and surrounding equipment during project planning. Installation and commissioning should be carried out by qualified personnel.

Use only the fuel specified for the selected unit. Coordinate the control interface, firing cues, and operating limits with the fountain show-control system.

Discuss Installation Requirements

Questions About Fire Fountain Equipment

A flame jet introduces a fire effect alongside the water and lighting. It can be used for selected show moments, adding visual contrast to the fountain composition.

The system can be arranged to supply multiple flame heads. The pressurization-unit model and main-pipe size must be selected for the installation layout and operating requirements; the number of heads should be confirmed during project design.

The listed maximum is 10 m. The operating height for a particular installation depends on the system configuration, fuel, and site conditions, and is confirmed during project planning and commissioning.

The flame equipment can be incorporated into a fountain show sequence with a compatible control arrangement. Confirm the control interface and programming requirements when specifying the system.

Related Flame & Impact Equipment

Huaxin water and flame fusion jet unit mounted on a stainless steel frame

Water & Flame Fusion Jet

Combines water and flame in one coordinated visual effect for fountain shows.

Huaxin single-axis swinging flame jet with a motor-driven pivot assembly

Single-Axis Swinging Flame Jet

Adds controlled directional movement to the flame effect.

Huaxin compressed-air water cannon with a vertical nozzle and pressure vessel

Compressed-Air Water Cannon

Creates short, forceful water bursts for rhythmic accents in a fountain composition.

Plan Flame Effects for Your Fountain

Send your fountain layout, required quantity, target flame height, project location, and control-system details. Huaxin will help coordinate the flame units, fuel pressurization system, and pipework for your project.
